SW-4016AL
Best Seller

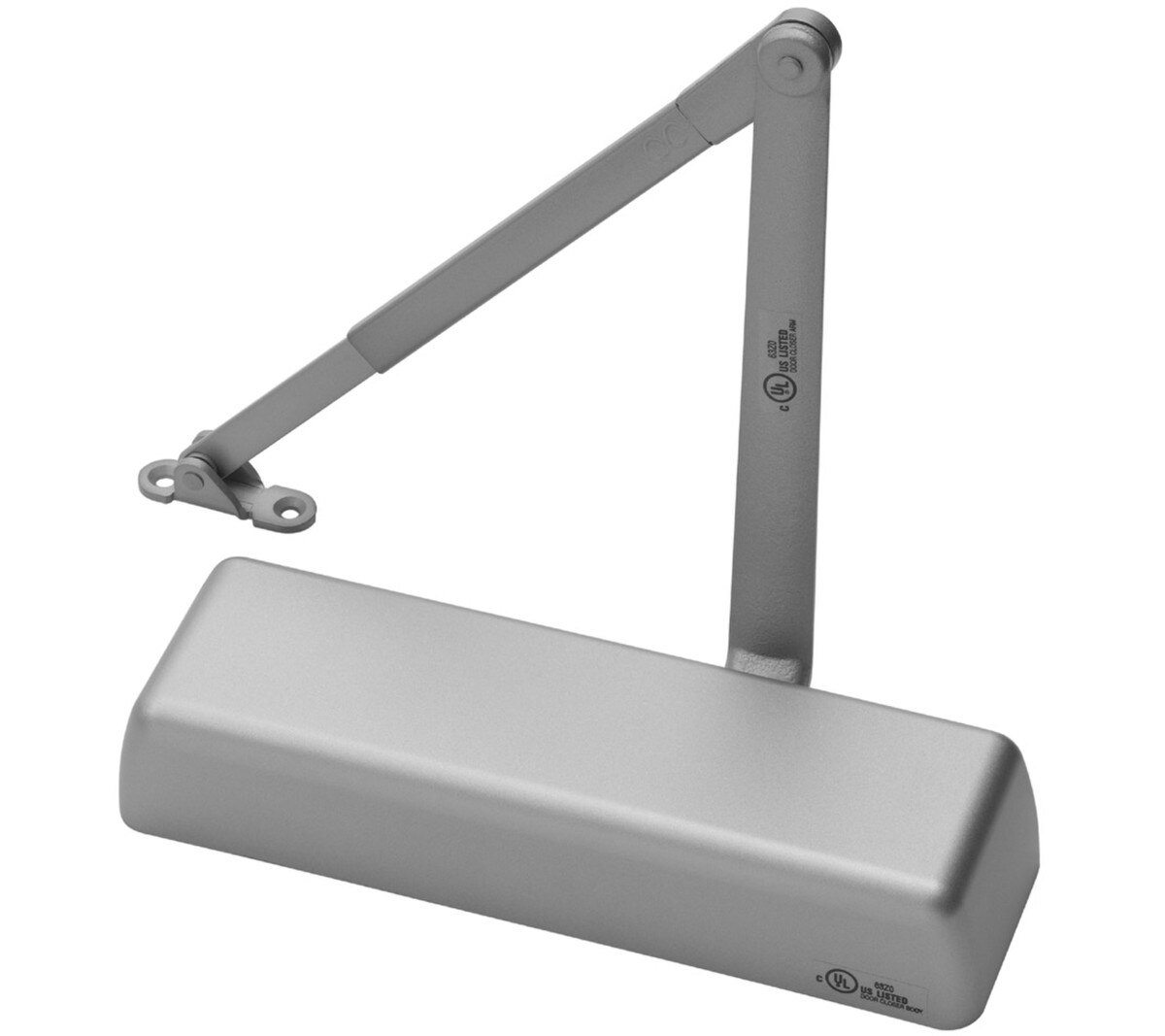

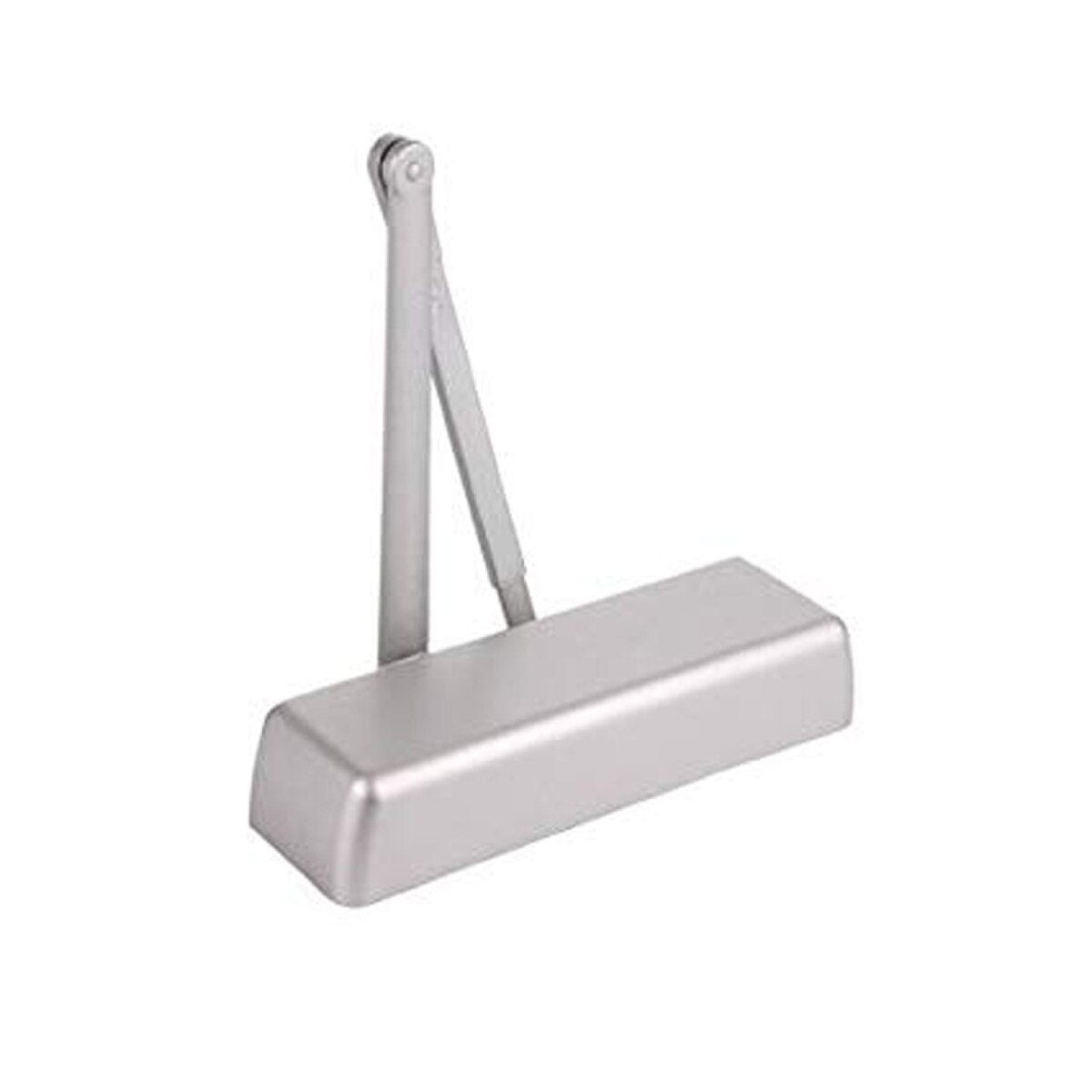

4000 Series Closer
The 4000 Series Closer features reliable operation, strength and durability, meeting ANSI/BHMA Grade 1 and ADA reduced opening force requirements, as well as latch and closing speeds that ensure positive latching. Choice of standard or heavy-duty arms and adjustable spring power meets needs of any application. Similar mounting hole patterns to competitive closers means hassle-free aftermarket replacement.
FEATURES
- Size: Adjustable Spring Sizes 1 - 6
- Body Material: Cast Iron
- Cover: Plastic Cover Standard
- Arms: Standard and heavy-duty arms available as hold open or non-hold open
- Mounting: Tri-packed for parallel, regular or top jamb installation
- Reliable: Adjustable spring power, latch and closing speeds ensure positive latching
- Templating: Retrofit for LCN 4040XP
- Fasteners: Sleeve nuts and bolts provided with each closer
DIMENSIONS
- Exterior Door Width: 28" to 54"
- Interior Door Width: 32" to 58"
- Cover Dimensions: 3 1/2" x 12 1/4" (89mm x 311mm)
- Closer Projection: 2 1/4" (57mm)
- Mounting Hole Pattern: 2 1/4" x 5"
CUT SHEETS
Sentinel 4016 Closer Data Sheet
TEMPLATES
Sentinel 4016 Closer Installation Instructions
Sentinel 4016 Closer CUSH Arm Installation Instructions
Sentinel 4016 Closer Hold-Open Arm Installation Instructions
CERTIFICATIONS
- Certified for ANSI/BHMA A156.4 Grade 1
- 90 minute positive pressure fire rating per UL10c and CAN / ULC S104
- Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1
MOUNTING PLATES
| Cast Iron Cylinder Assembly | Standard Cylinder Assembly |
| Delay Action Cylinder (DEL) | Cylinder used for delayed action closing |
| Tri-Pack Arm | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe required for parallel arm mounting |
| Cush-n-Stop Arm (CUSH) | Holder/Stop arm is intended for use where an auxiliary door stop cannot be used and low to moderate abuse is anticipated Stop is removable to allow for additional applications where auxiliary door stops are installed Hold open arm door closers are not permitted to be used on fire door assemblies. |
| Hold Open Cush-n-Stop Arm (HCNS) | Holder/Stop arms incorporate a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments Handle controls hold open function Prior to dead stop, backcheck slows the door speed to reduce the stop action Hold open arm door closers are not permitted to be used on fire door assemblies. |

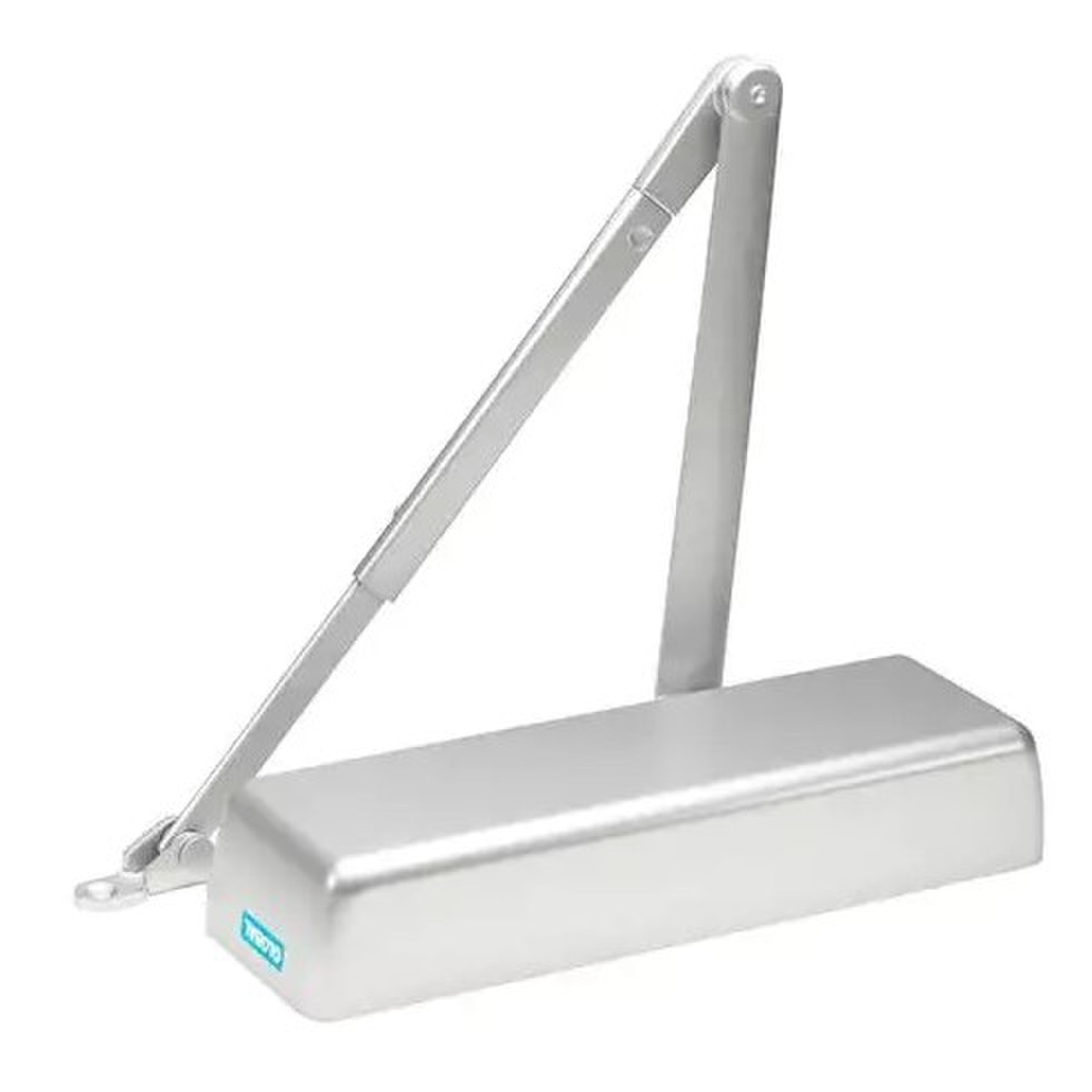

| AL/689 | Aluminum Powder Coated |

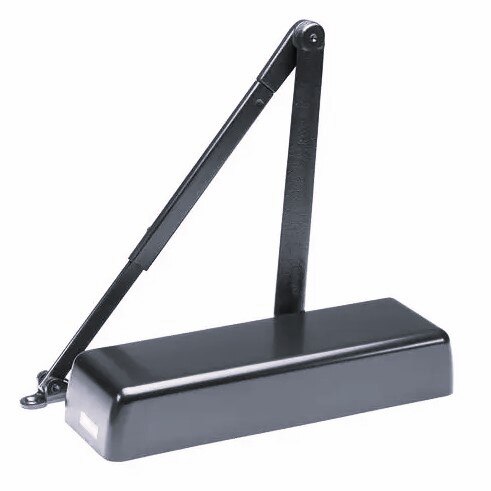

| BLK/693 | Black Suede Powder Coated |
| DU/695 | Dark Bronze Powder Coated |
