AB-A570HDC-83

(0)No Reviews yet
SKU: AB-A570HDC-83
List Price: $222.00
Manufacturer: ABH Mfg.
Category: Continuous Hinges
Finish Code: Alum
Measurement: 83" HINGE
Description: FUll Surface Limited Frame Center Pivot Contious Geared Hinge, Heavy Duty, 83", Clear Aluminum

In Stock and Ready to Ship

Available: 33

Price Update 11/10/25

Back

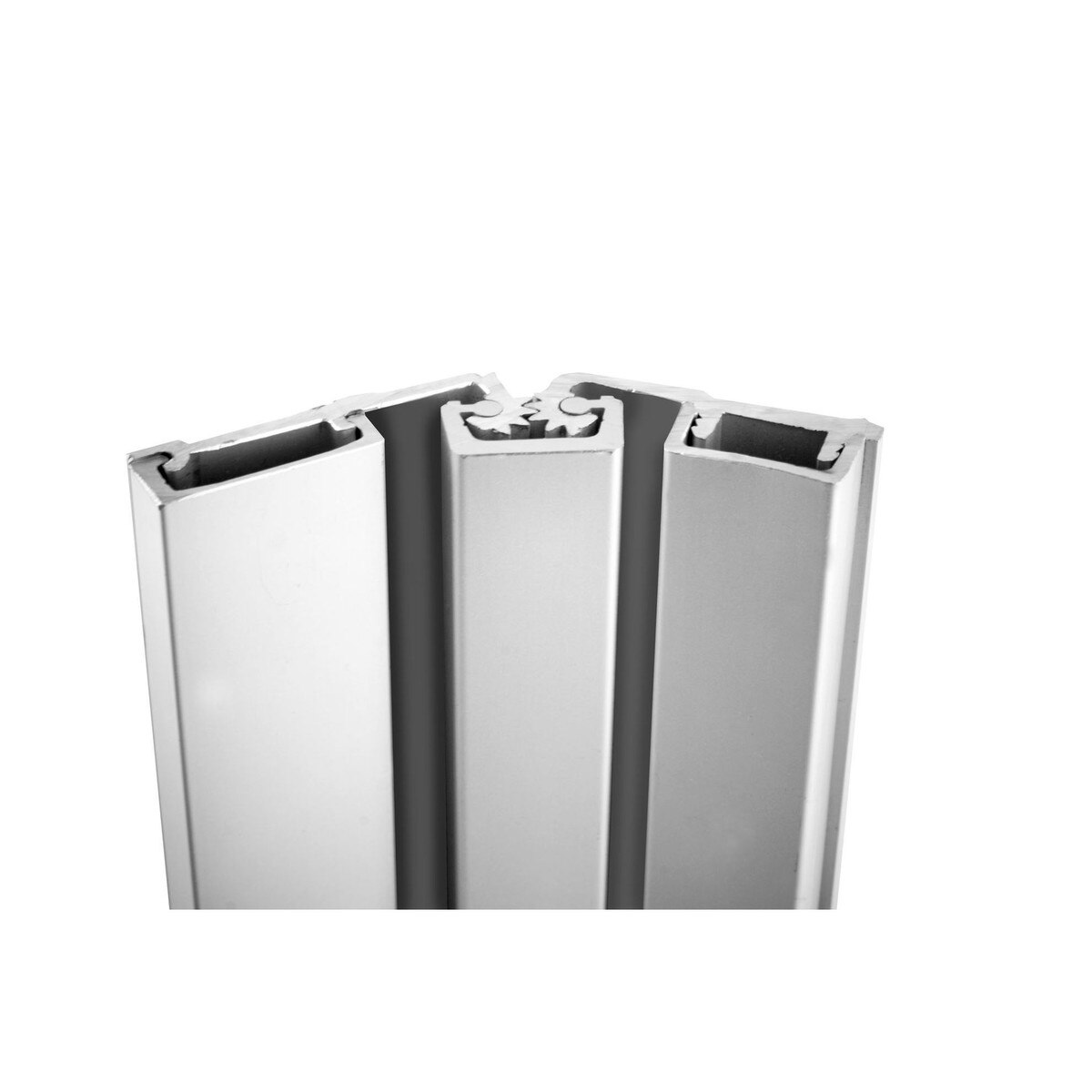

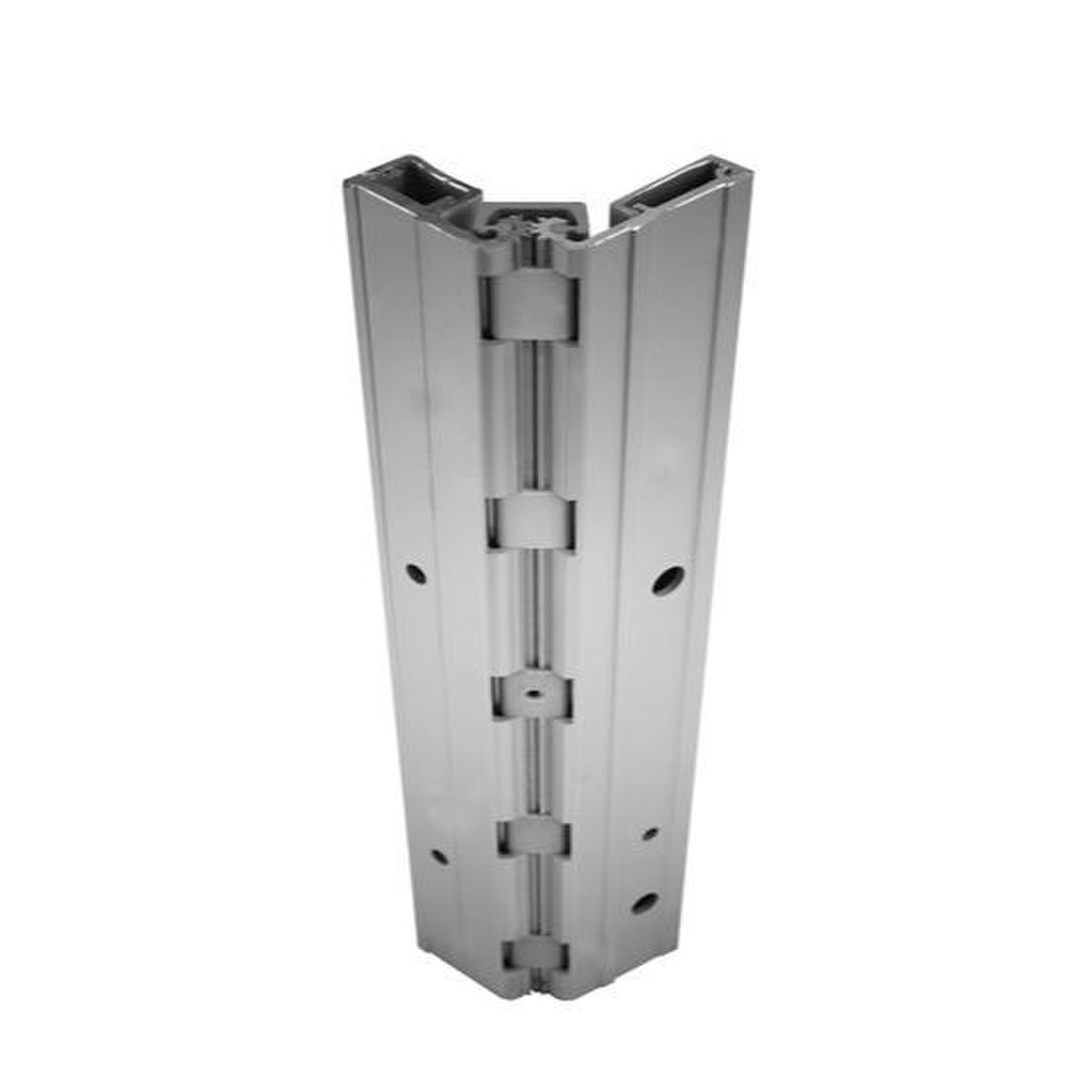

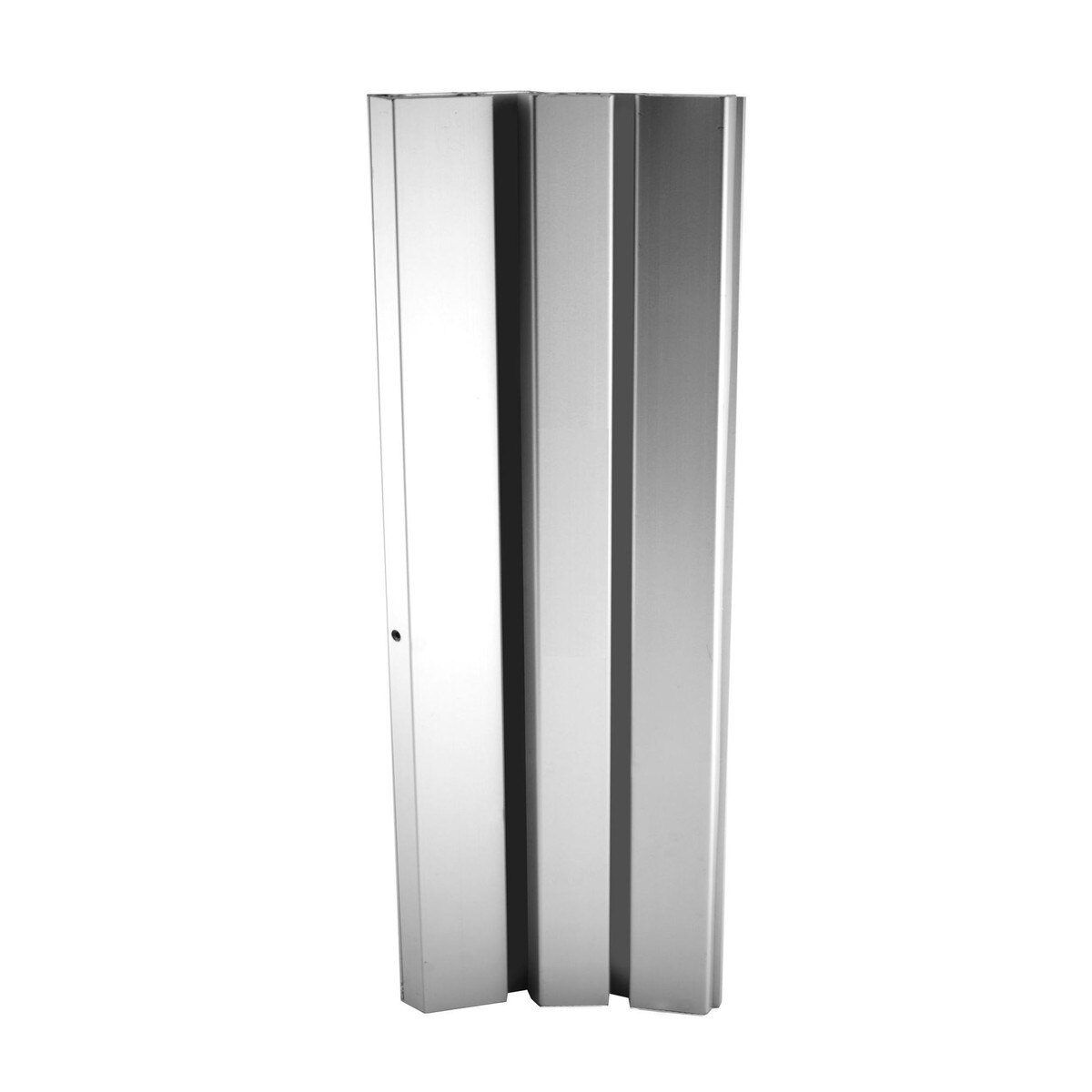

A570HD 83" Aluminum Continuous Gear Hinges Full Surface

FEATURES


  • Length: 83"
  • Finish: 628 - Clear Anodized Aluminum
  • BHMA Grade 1
  • Full Surface, Heavy Duty

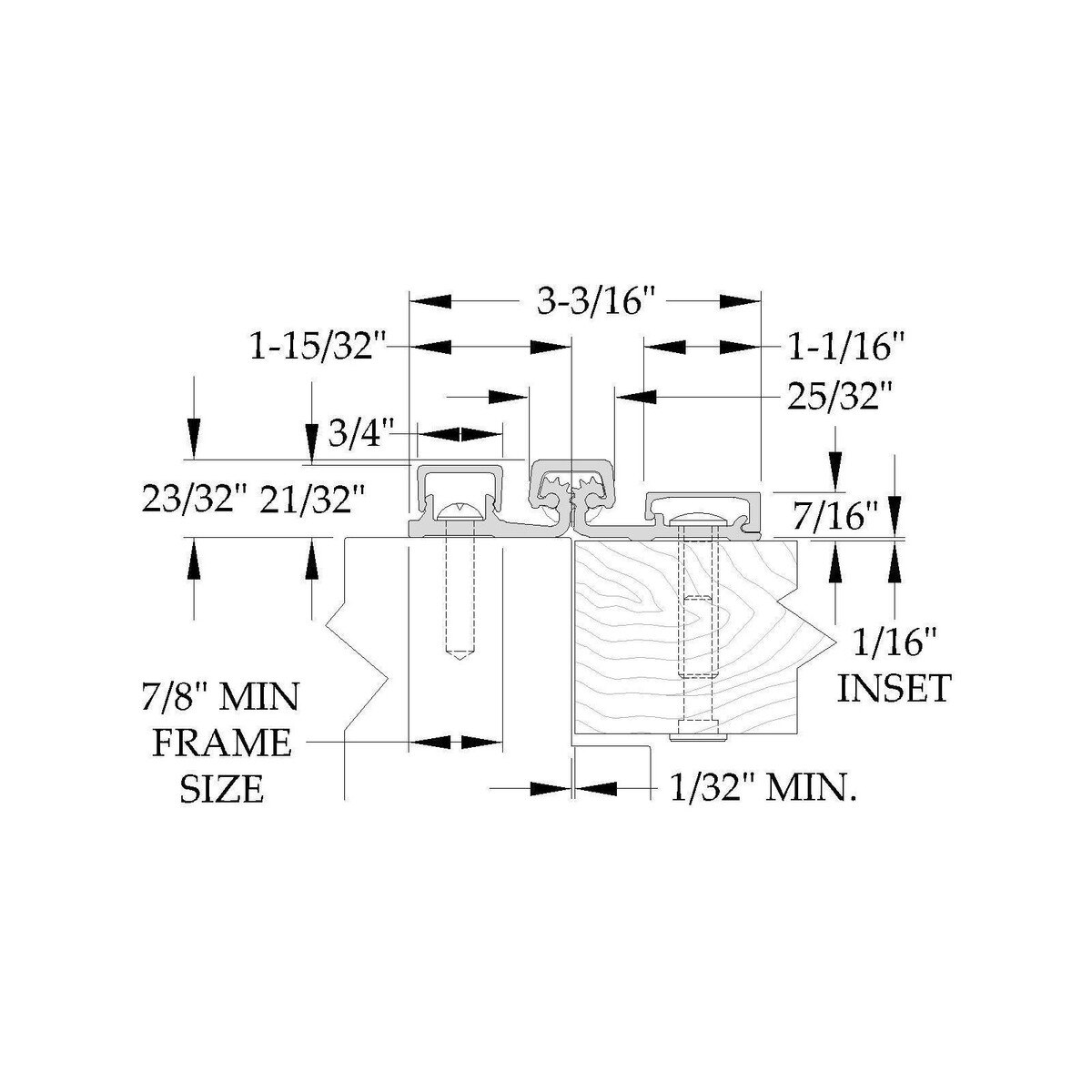

  • 1/16" Door Inset
  • For narrow-faced frames
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Average weight per unit = 11 pounds
Back

CUT SHEETS

A210HD & A570HD Aluminum Continuous Gear Hinges Full Surface - Cut Sheet

TEMPLATES

A570HD Aluminum Continuous Gear Hinges Full Surface

Fire Rated Studs for Full Surface Aluminum Continuous Geared Hinge - Template

Full Surface Installation Instructions

TECH MEMOS

Aluminum Continuous Geared Hinge Door Clearance Chart
