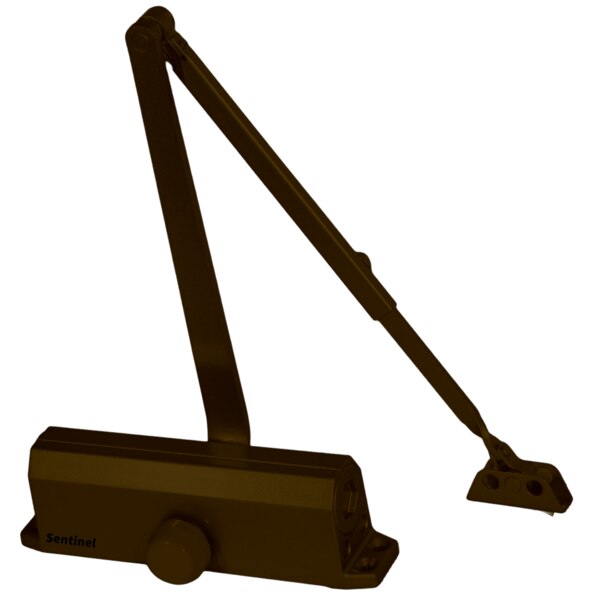

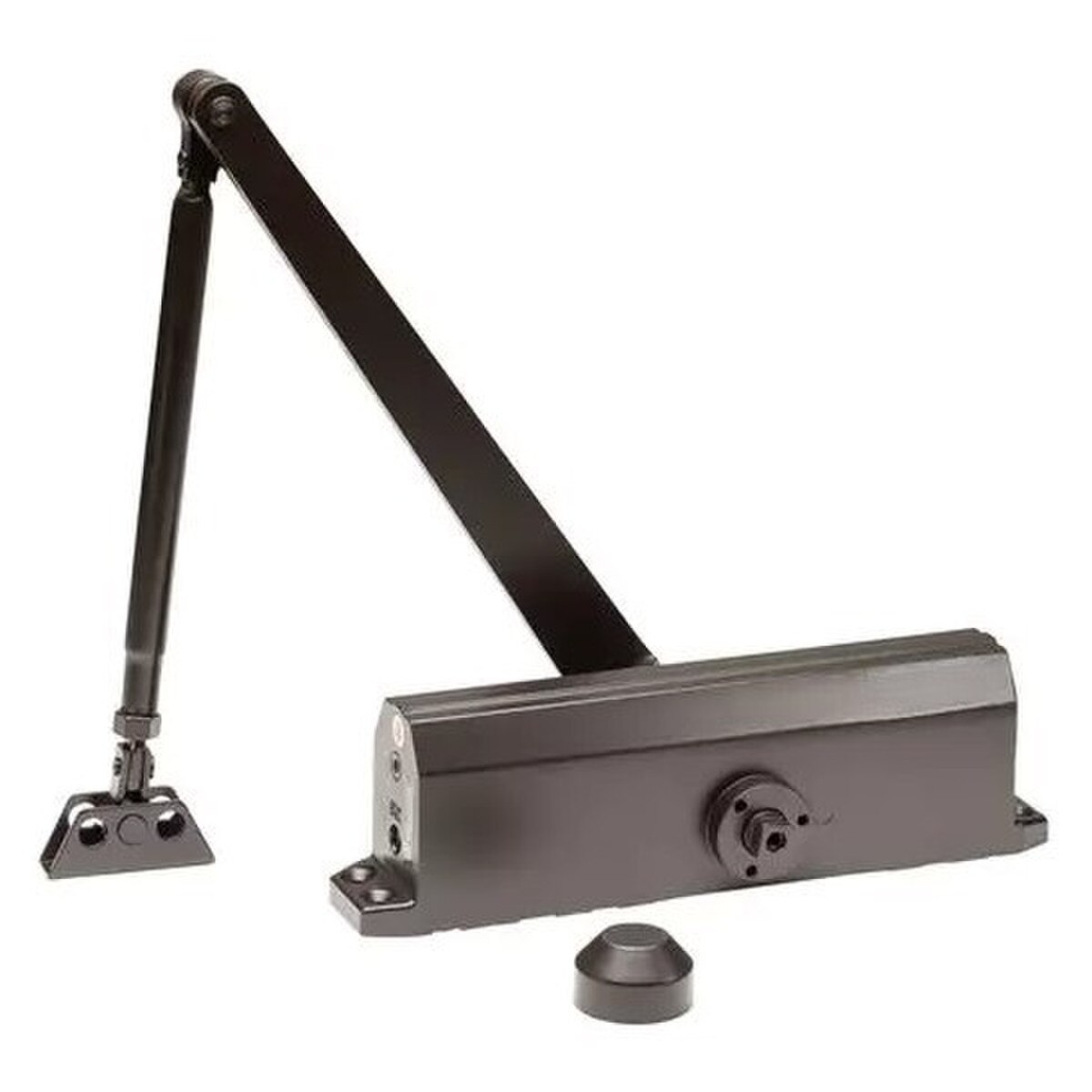

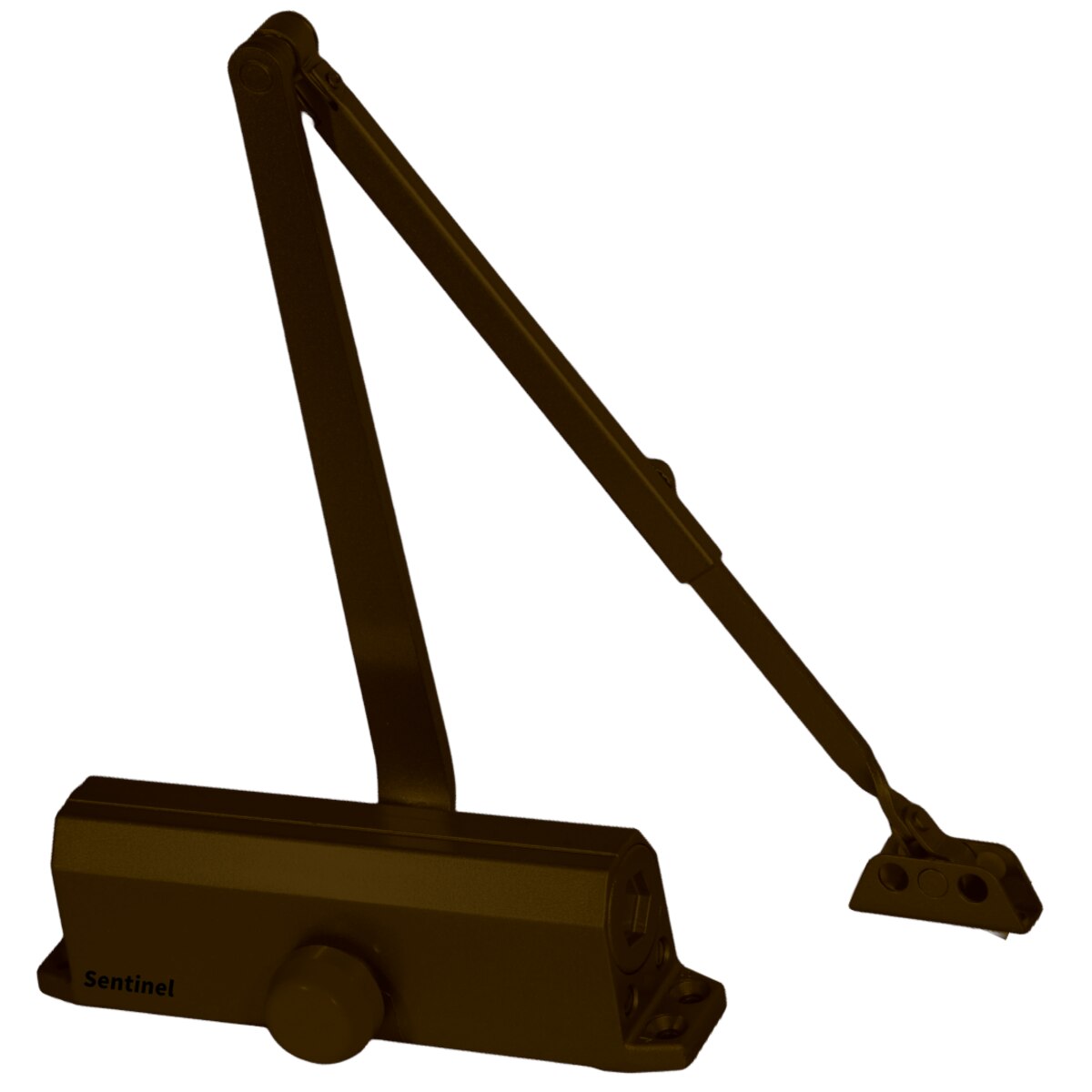

SW-5036BCDU
5000 Series Closer
The 5000 Series closers are an excellent closer for use in external door applications featuring body and arm assemblies that are corrosion resistant and can be installed in regular, top jamb and parallel arm applications. All 5000 Series closers have cast aluminum bodies with high compression steel springs and hardened rack and pinions for doors opening 180 degree maximum. The 5014 closer has an adjustable spring power from size 1 thru 4, complying with 5 lb. interior and 8½ lb exterior barrier-free opening force restrictions. The 5036 closer is adjustable from size 3 thru 6, providing an excellent closer for use in external door applications. The 5000 closer is also available in fixed size 3, 4 and 5 spring tension.
FEATURES
- Size: See Options Tab for sizing chart
- Body Material: Cast Aluminum
- Cover: None
- Handing: Non-Handed
- Arms: Standard arms available as hold open or non-hold open
- Mounting: Tri-packed for parallel, regular or top jamb installation
- ADA Compliant: Barrier Free (BF) on 5014 models only.
- Reliable: Adjustable Latch, Sweep, & Back Check (BC) ensure positive latching.
- Templating: Retrofit for LCN 1250 and 1260 Closers
- Fasteners: Self reaming and tapping screws provided with each closer
DIMENSIONS
- Exterior Door Width: 28" to 54"
- Interior Door Width: 32" to 58"
- Closer Projection: 2 1/8" (54mm)
- Mounting Hole Pattern: 9 1/16" x 3/4”
CUT SHEETS
Sentinel 5000 Series Closer Data Sheet
TEMPLATES
Sentinel 5000 Series Closer Installation Instructions
Sentinel 5000 Series Closer Drop Plate Installation Instructions
CERTIFICATIONS
- Certified for ANSI/BHMA A156.4 Grade 1
- UL listed 55H5
| Model | Size | Interior Door Width | Exterior Door Width |
|---|---|---|---|
| 5003 | Size 3 only | 38" - 42" | 32" - 36" |
| 5004 | Size 4 only | 42" - 48" | 36" - 42" |
| 5005 | Size 5 only | 48" - 54" | 42" - 48" |
| 5014 | Adjustable Spring Power, Sizes Available 1-4 | 32" - 48" wide doors | 28" - 42" wide doors |
| 5036 | Adjustable Spring Power, Sizes Available 3-6 | 42" - 58" wide doors | 36" - 54" wide doors |
| Tri-Pack Arm | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe required for parallel arm mounting |
| Hold Open Arm | Hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration Hold open arm door closers are not permitted to be used on fire door assemblies. |
| AL/689 | Aluminum Powder Coated |
| BLK/693 | Black Suede Powder Coated |
| DU/695 | Dark Bronze Powder Coated |
