LN-4041-RW-PA-695

(0)No Reviews yet
SKU: LN-4041-RW-PA-695
List Price: $729.00
Manufacturer: Lcn

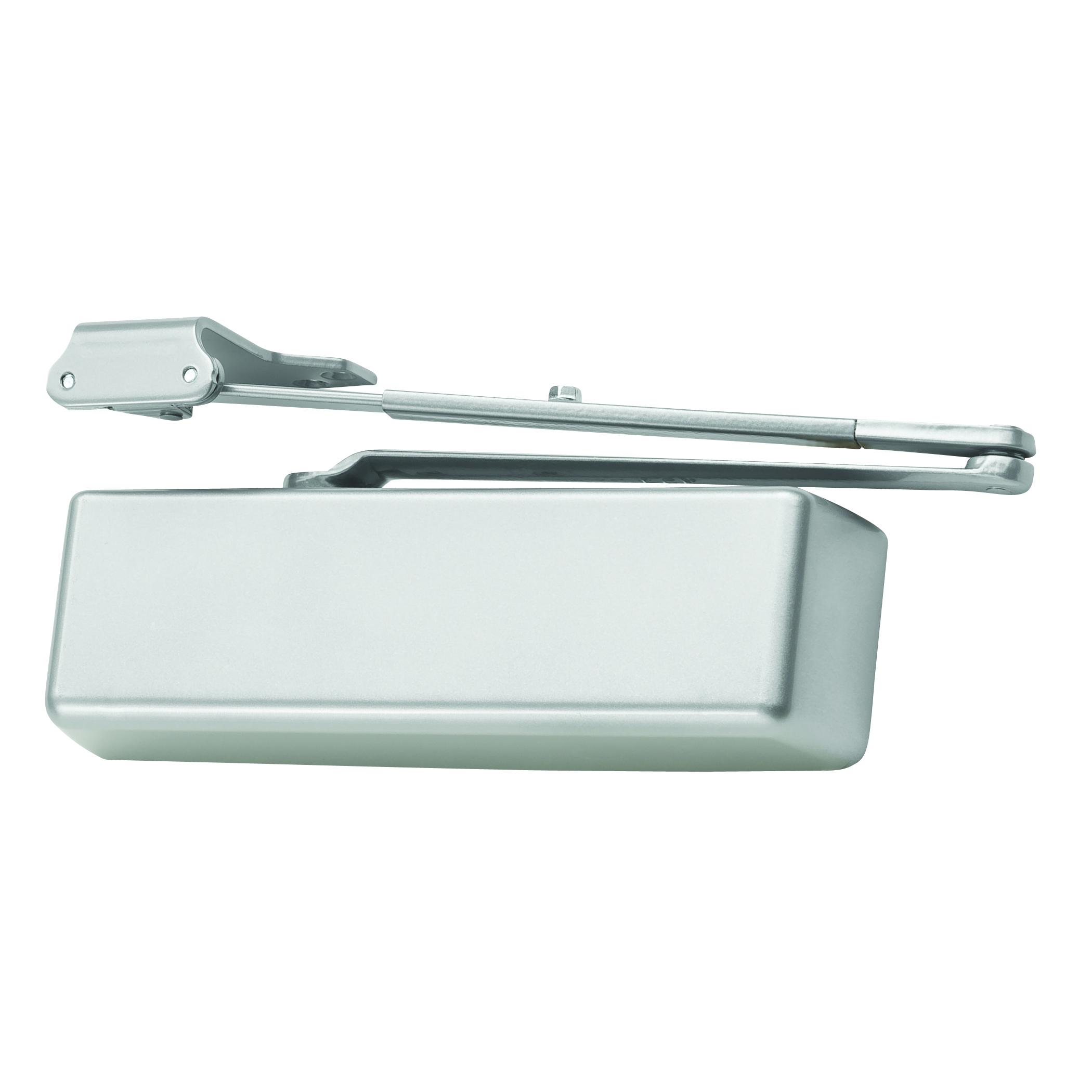

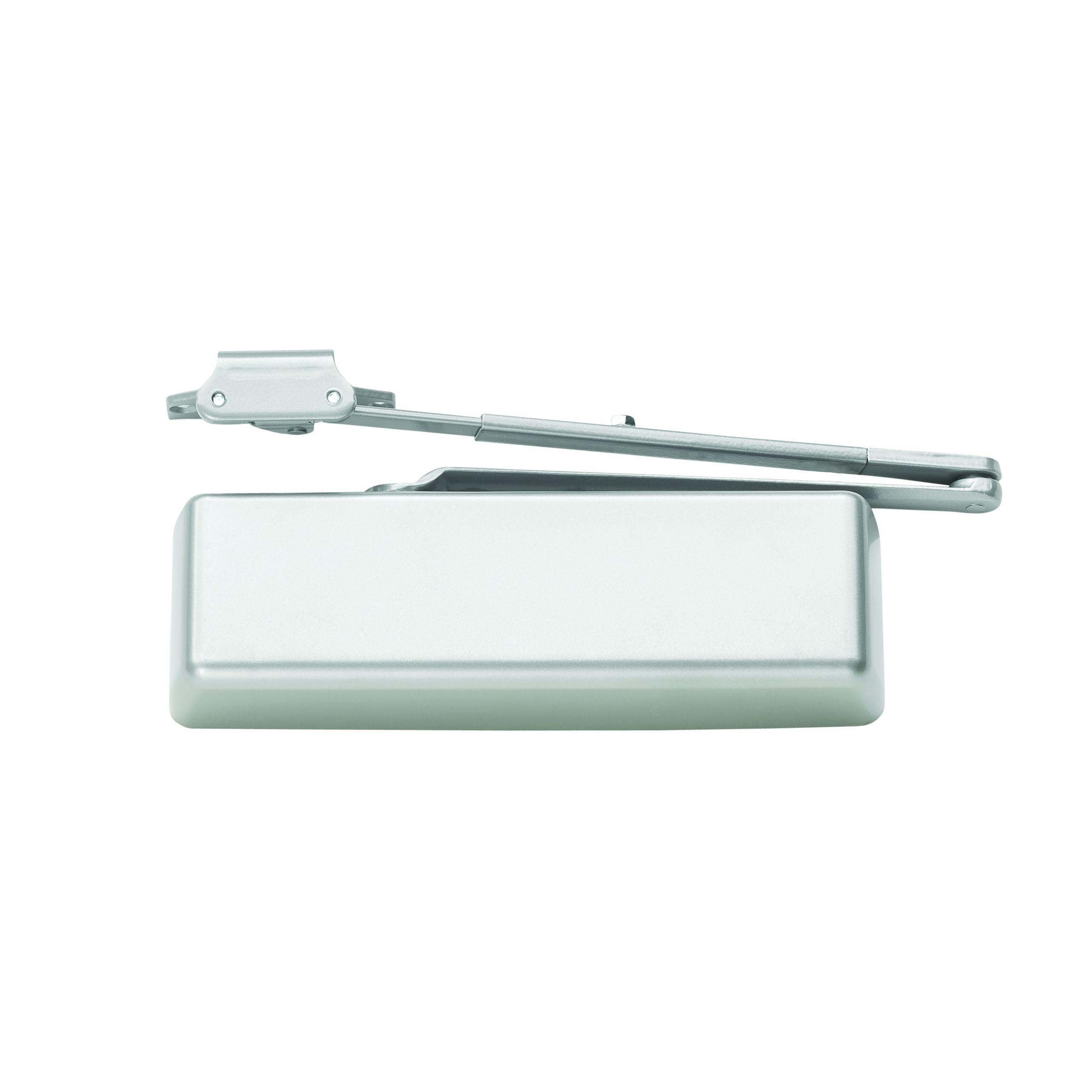

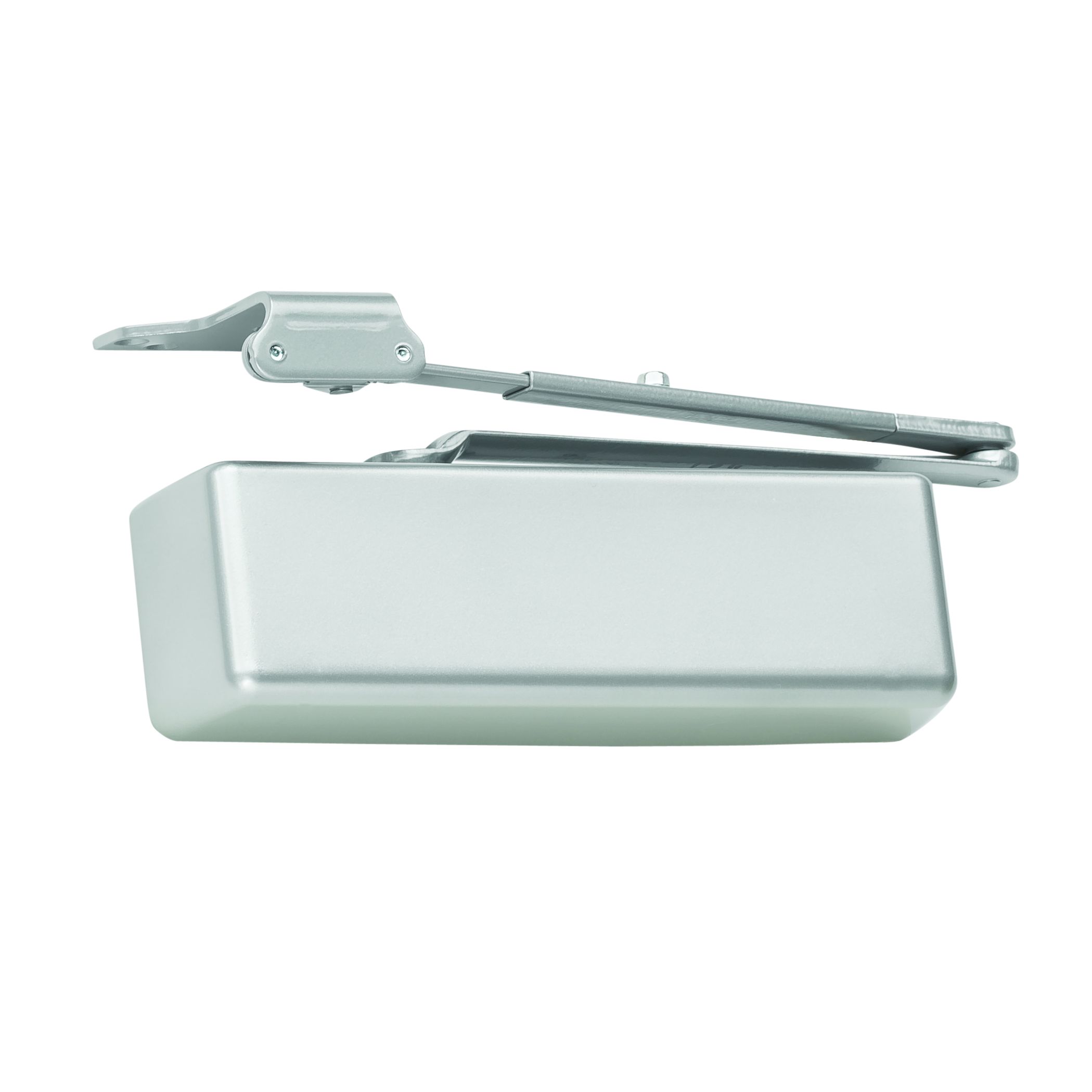

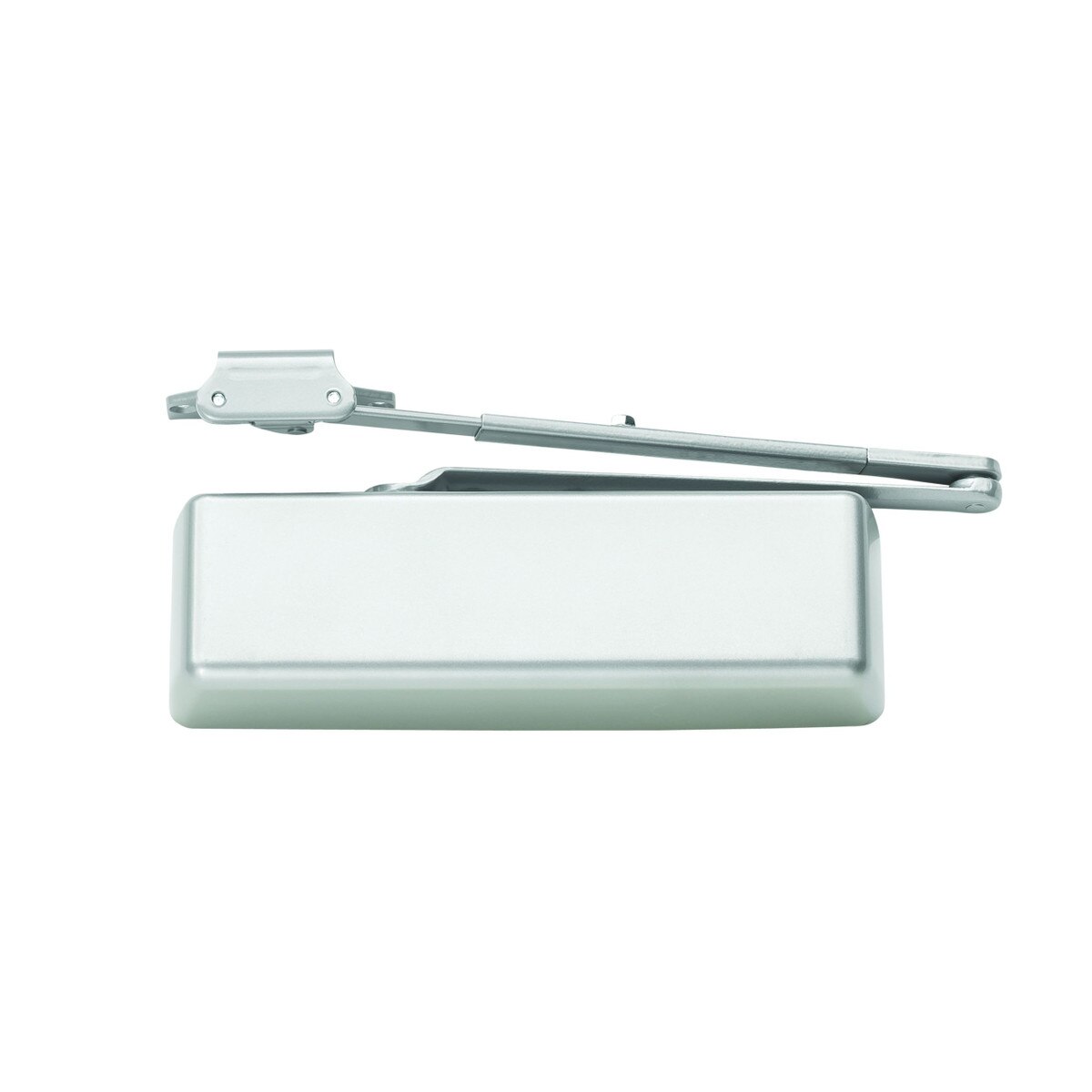

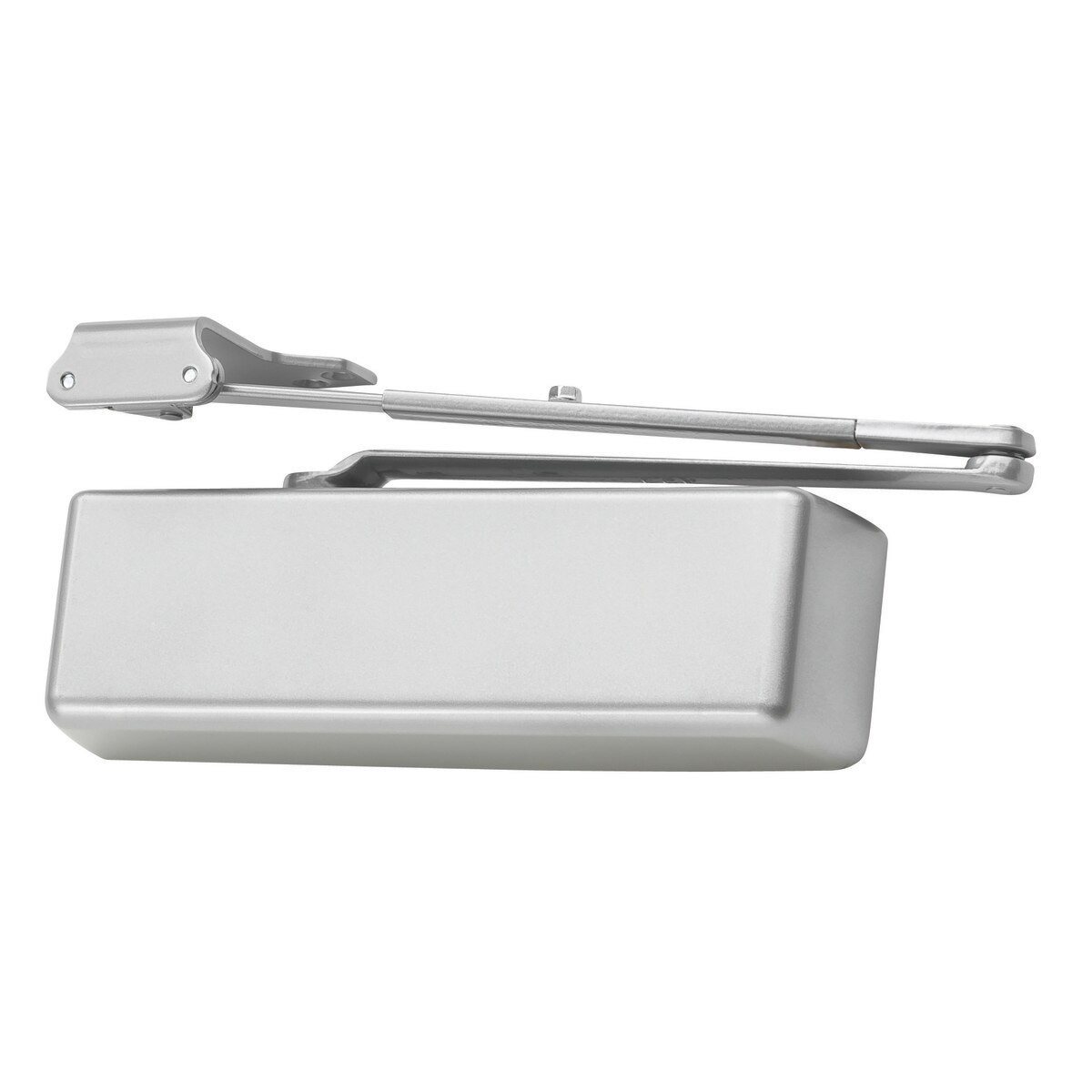

Description: 4040XP Series Closer with Regular Arm with Parallel Bracket (RWPA)
Category: Surface Mount Closers
Finish Code: 695
Weight: 11.1

In Stock and Ready to Ship

Available: 73

4040XP Series Closer


The 4040XP Series is LCN’s most popular door closer—and for good reason. This durable non-handed, surface-mounted heavy-duty closer, is designed for the most demanding high-use-and abuse applications as well as for easy installation and maintenance.


FEATURES


  • Patented positive stop
  • Patented regulation valve indicators
  • Independent speed adjustments
  • QR code for instructions and support
  • Size: Adjustable Spring Size 1-6, includes LCN Green Dial
  • Body Material: Cast Iron
  • Cover: Plastic Cover (PC) Standard, unless specified otherwise
  • Bearing: Full Complement
  • Pinion Journal: Double Heat Treated
  • Fluid: All Weather Liquid X Fluid
  • Templating: Peel-n-Stick Template
  • Mounting: Depending on arm selection, Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
  • Fasteners: Self Reaming and Tapping Screws (SRT) Standard, unless specified otherwise

DIMENSIONS


  • Exterior Door Width: 24" to 48"
  • Interior Door Width: 24" to 60"
  • Piston Diameter: 1 1/2"
  • Pinion Journal Diameter: 11/16"
  • Mounting Hole Pattern: 2 1/4" x 5"

CUT SHEETS


LCN 4000 Series Surface Mounted Closers Catalog


TEMPLATES


LCN Closers and Auto Operators Templates and Instructions Index


CERTIFICATIONS


  • Meets ADA requirements
  • UL and cUL listed for self-closing doors without hold-open
  • Tested and certified under ANSI/BHMA A156.4 Grade 1


Cast Iron Cylinder Assembly (CYL) Standard Cylinder Assembly
Delay Action Cylinder (CYLDEL) Cylinder used for delayed action closing

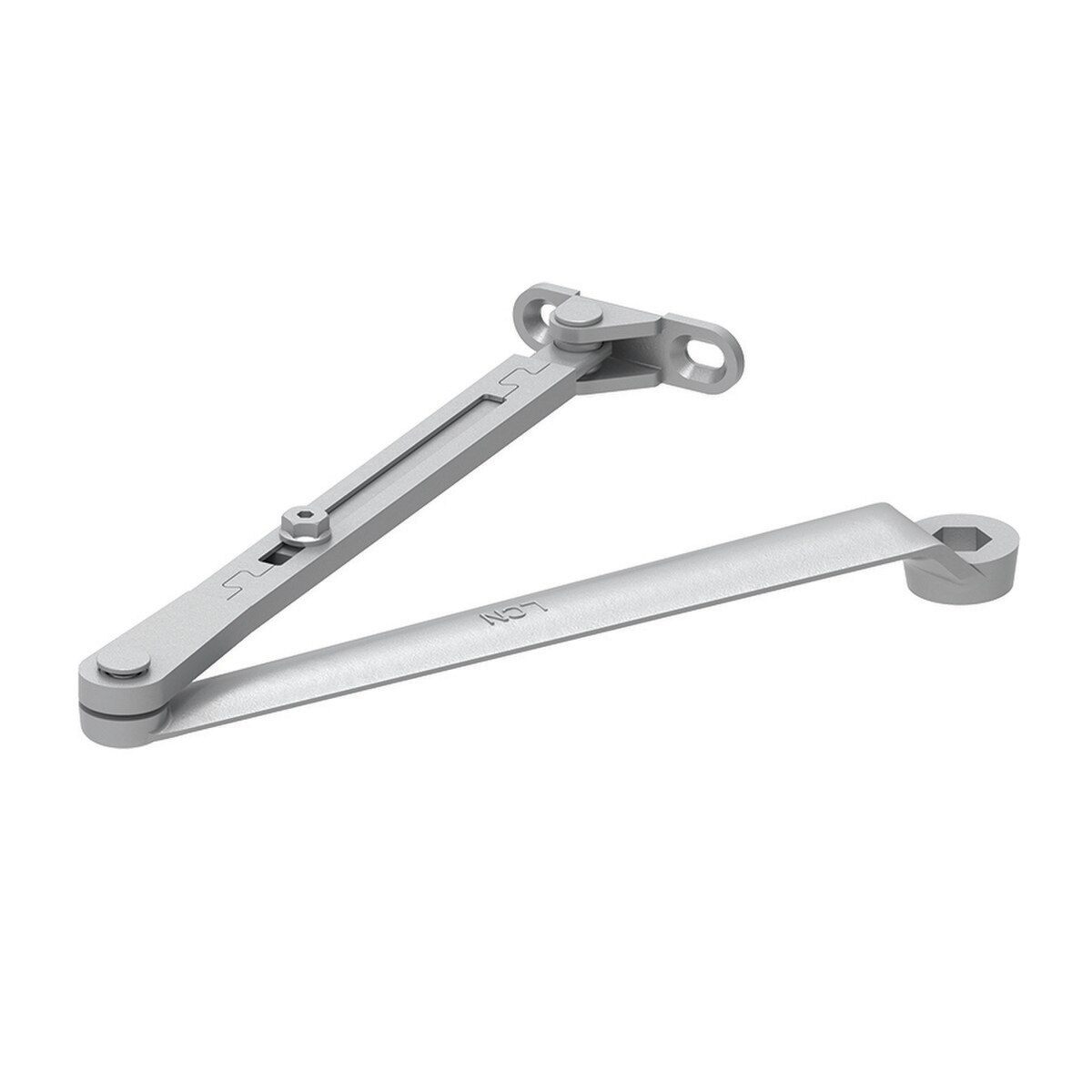

Regular Arm (REGARM) Mounts Hinge Side (Pull Side) and Top Jamb (Push Side)
Regular Arm/62PA Parallel Arm Bracket (RWPA) Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)

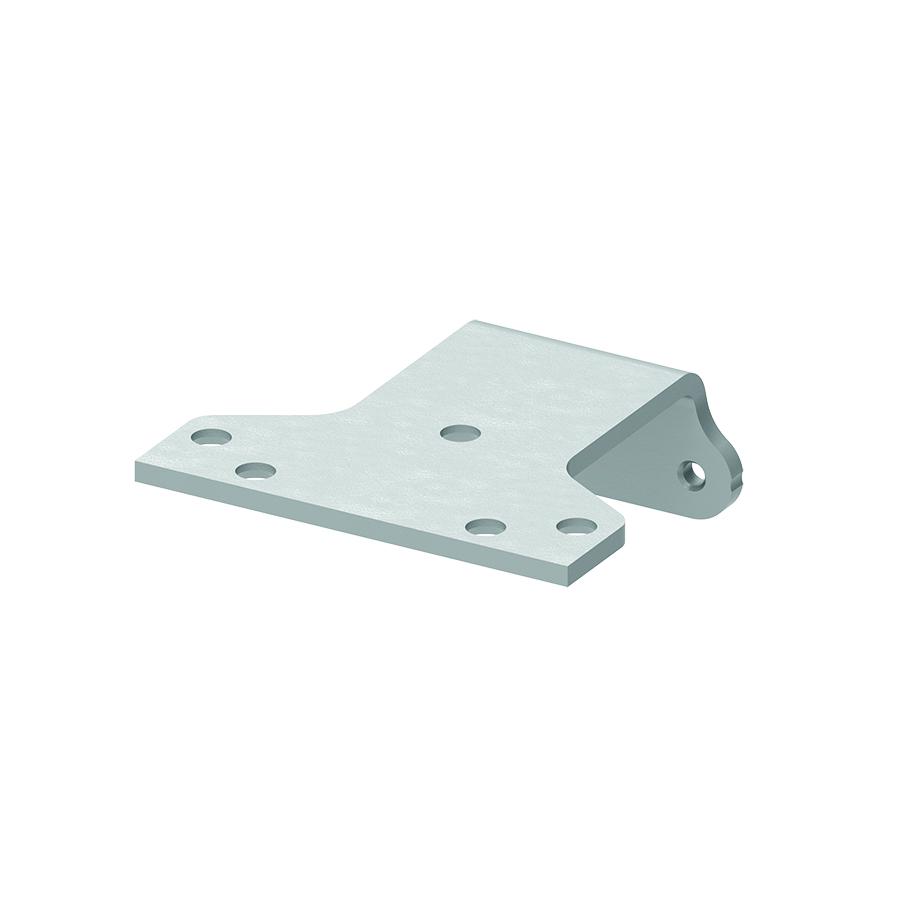

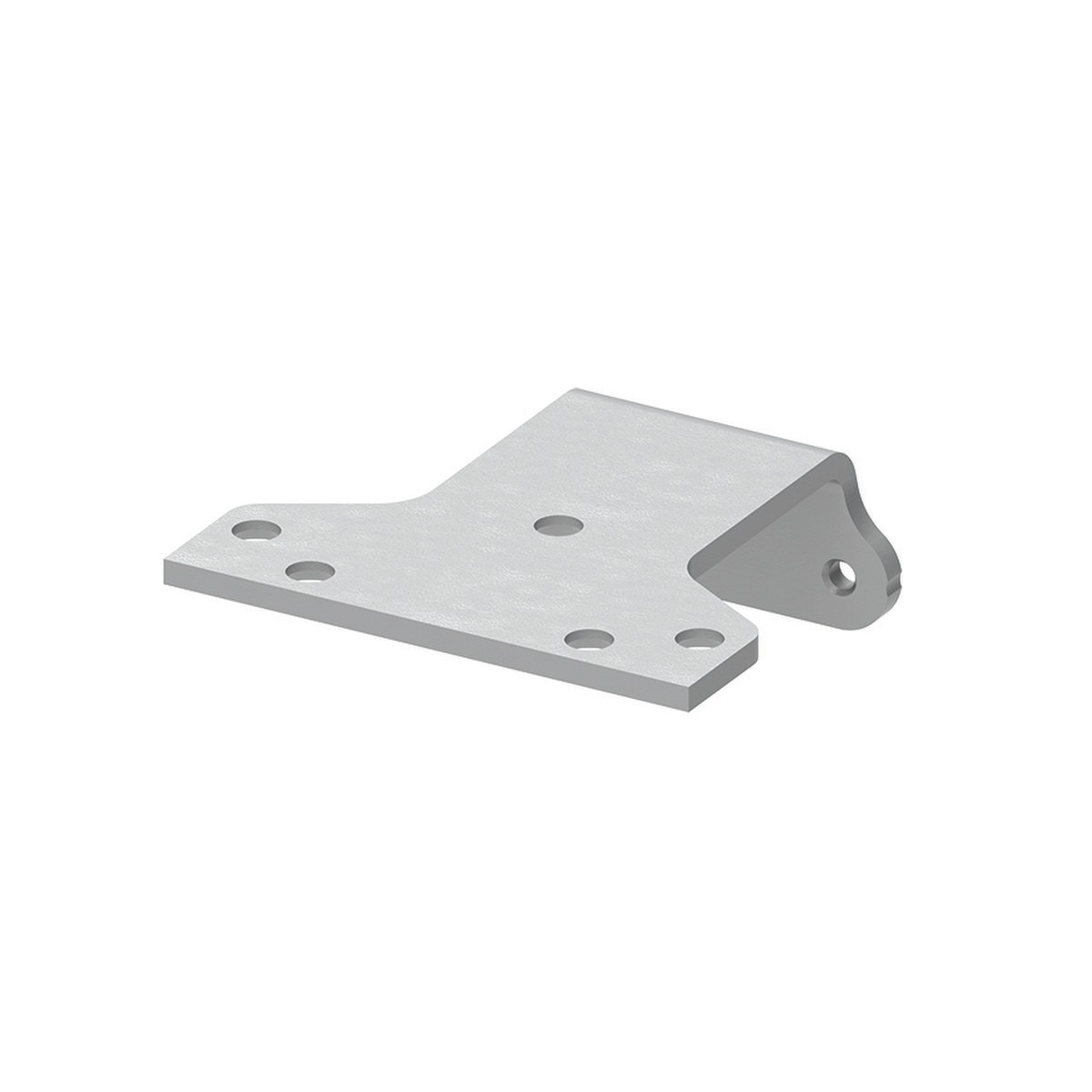

Includes PA shoe, 4040XP-62PA required for parallel arm mounting
Regular Arm/62A Auxiliary Shoe (RW62A) Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
Requires a top rail of 7" (178mm)
Includes auxillary shoe, 4040XP-62A, for parallel arm mounting of regular arm with overhead holder/stop
Long Arm (LONG) Includes long rod and shoe, 4040XP-79LR, for top jamb mount with deep reveals
Extra Long Arm (XLONG) Includes extra long rod and shoe, 4040XP-79ELR, for top jamb mount with deep reveals
Hold Open Arm (H) Provides hold open function adjustable at shoe
Mounts Hinge Side (Pull Side) and Top Jamb (Push Side)
Hold Open Arm/62PA Parallel Arm Bracket (HWPA) Provides hold open function adjustable at shoe
Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
Includes PA shoe, 4040XP-62PA, required for parallel arm mounting
Hold Open Long Arm (HLONG) Provides hold open function adjustable at shoe
Includes long head and tube, 4040XP-3048L, for top jamb mount with deep reveals
Extra Duty Arm (EDA) Mounts Parallel Arm (Push Side) only
Features solid forged steel main and forearm for potentially abusive installations
Extra Duty Arm/62G Thick Hub Shoe (EDA62G) Mounts Parallel Arm (Push Side) only
Features solid forged steel main and forearm for potentially abusive installations
Includes thick hub shoe, 4040XP-62G, for blade stop clearance
Hold Open Extra Duty Arm (HEDA) Handing required
Mounts Parallel Arm (Push Side) only
Provides hold open function adjustable at shoe
Features solid forged steel main and forearm for potentially abusive installations
Hold Open Extra Duty Arm/62G Thick Hub Shoe (HEDA62G) Handing required
Mounts Parallel Arm (Push Side) only
Provides hold open function adjustable at shoe
Features solid forged steel main and forearm for potentially abusive installations
Includes thick hub shoe, 4040XP-62G, for blade stop clearance
Cush-n-Stop Arm (CUSH) Features solid forged steel main arm and forearm with stop in soffit shoe
Hold Open Cush-n-Stop Arm (HCUSH) Provides hold-open function with templated stop/hold open points
Handle controls hold open function
Spring Cush-n-Stop Arm (SCUSH) For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
Spring Hold Open Cush-n-Stop Arm (SHCUSH) For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
Handle controls hold open function


616/US11 Satin Bronze, Blackened, Satin Relieved, Plated
622/US19 Flat Black Powder Coated
632/US3 Bright Brass Plated
633/US4 Satin Brass Plated
639/US10 Satin Bronze Plated
646/US15 Satin Nickel Plated
651/US26 Bright Chrome Plated
652/US26D Satin Chrome Plated
689 Aluminum Powder Coated
690 Statuary Bronze Powder Coated
691 Light Bronze Powder Coated
693 Gloss Black Powder Coated
695 Dark Bronze Powder Coated
696 Brass Powder Coated
SRI Special Rust Inhibitor for Powder Coat Finishes


PC Plastic Cover - Standard
MC Metal Cover - Handing Required


SRT Self Reaming and Tapping Screws - Standard
TBSRT Through Bolt Self Reaming and Tapping Screws - 1-3/4" Door Thickness only
WMS Wood and Machine Screws
TBWMS Through Bolt Wood and Machine Screws - 1-3/4" Door Thickness only
TORX Torx Machine Screws
TBTRX Through Bolt and Torx Machine Screws - 1-3/4" Door Thickness only
