ARM4016HCNSAL

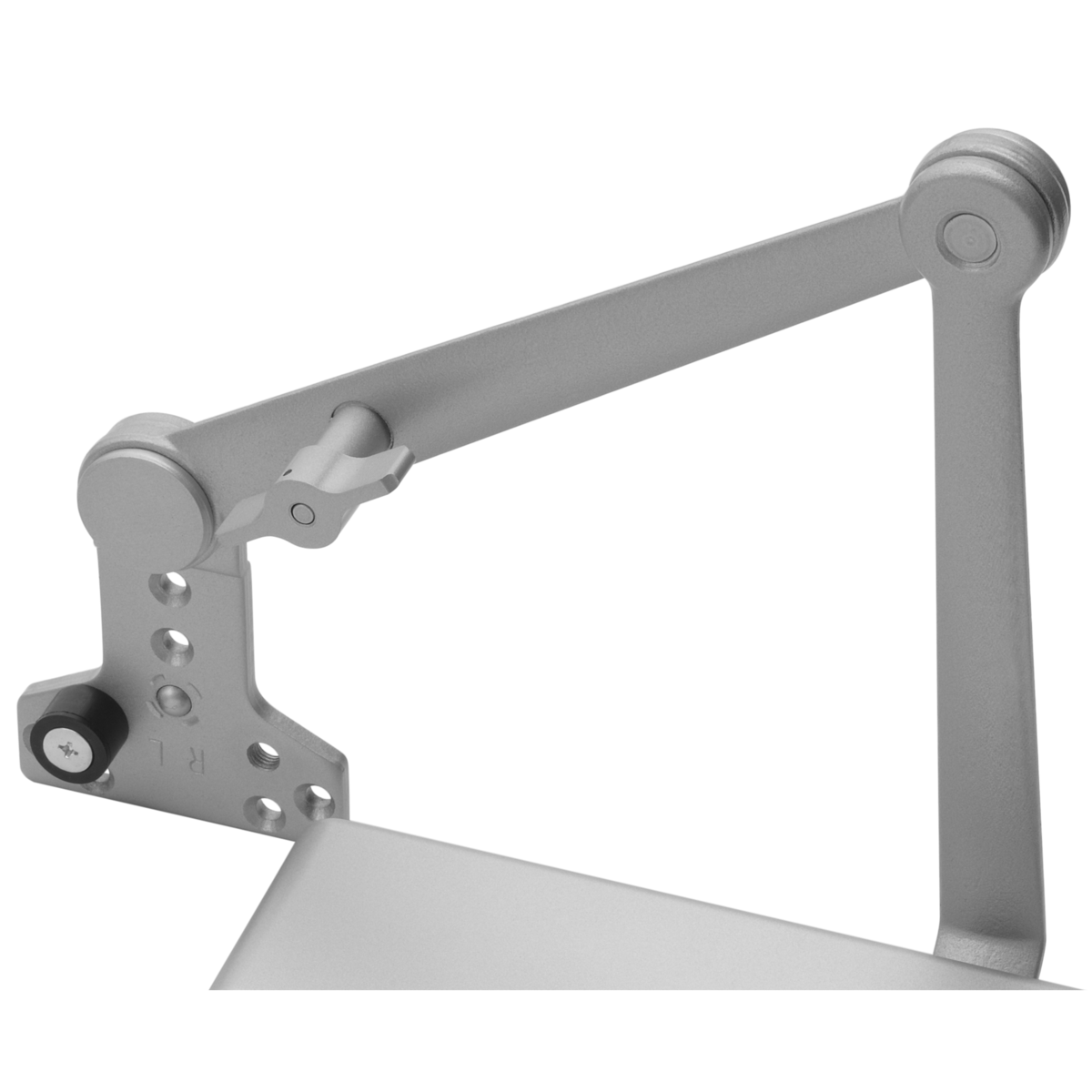

Sentinel 4016 HCUSH Closer Arm

FEATURES

• For non fire-rated openings.
• Arm Type: HCUSH - Thumb Turn Hold Open Cushion Arm
• Handing: Non-handed
• Finish: AL - Matches 628 - Clear Anodized Aluminum
• Solid forged steel main arm and forearm

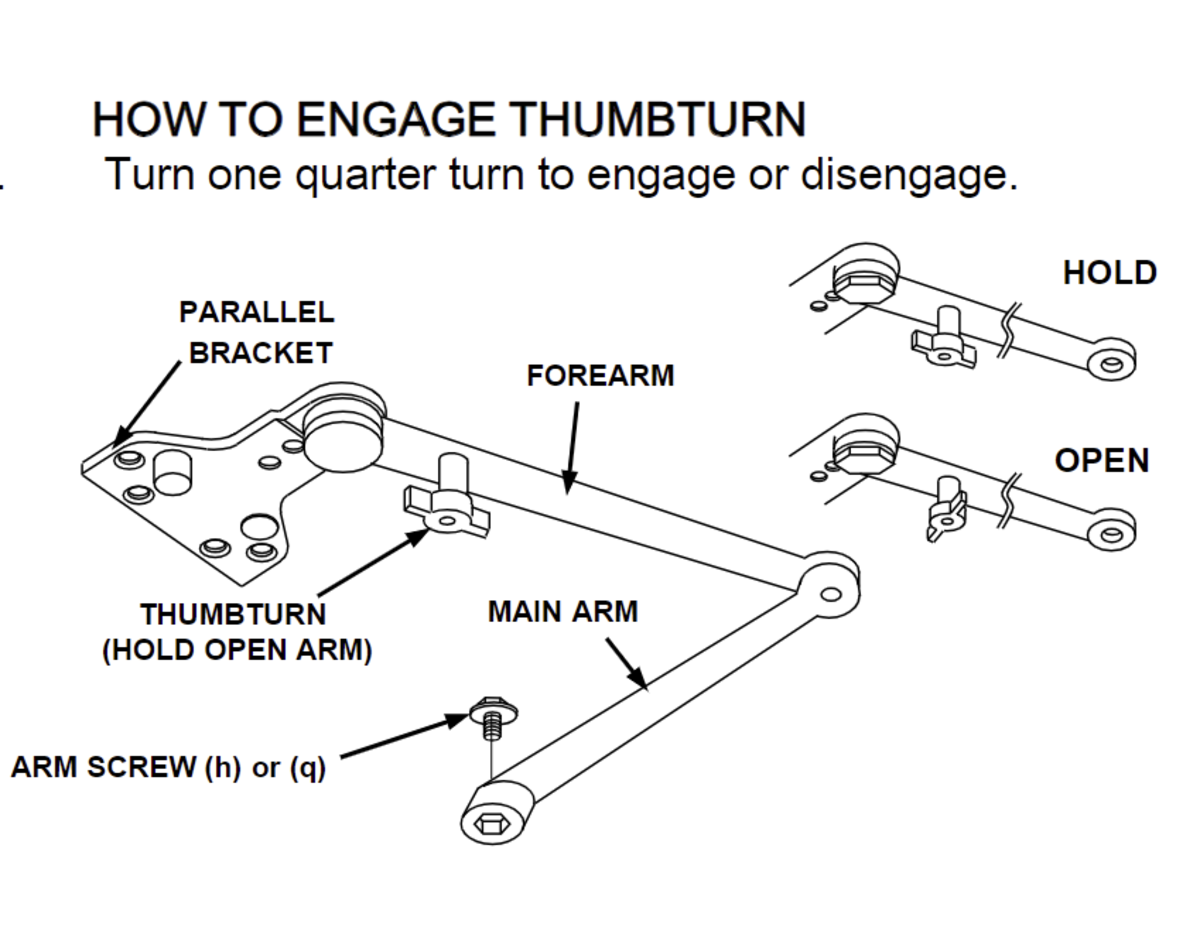

• Hold open function with templated stop/hold open points
• Handle controls hold open function

CUT SHEETS

4016 Series Door Closer Sell Sheet

TEMPLATES

Sentinel 4016 CUSH/HCUSH Arm Installation Template
