LN-1450-RW-PA-SLIM-695
Details

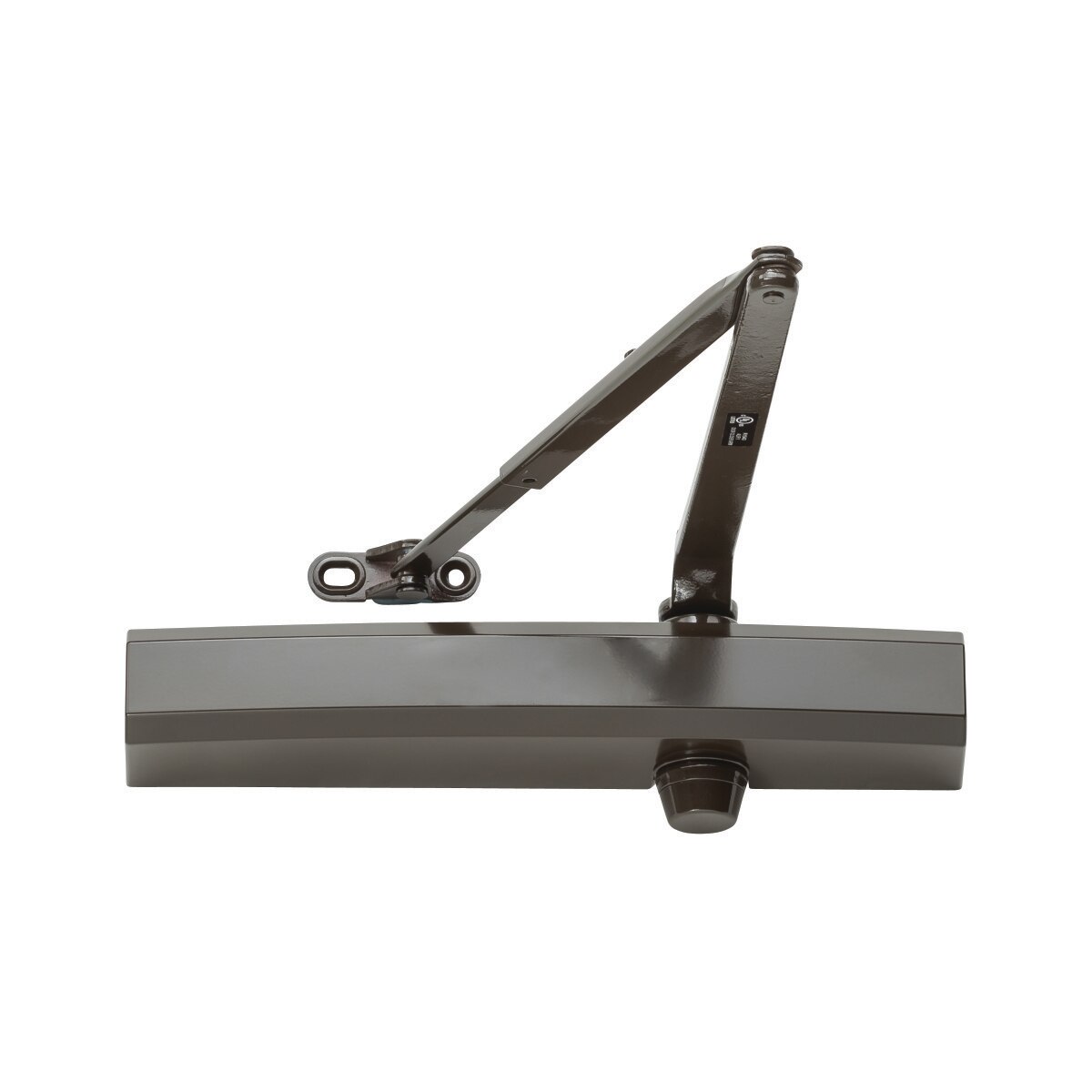

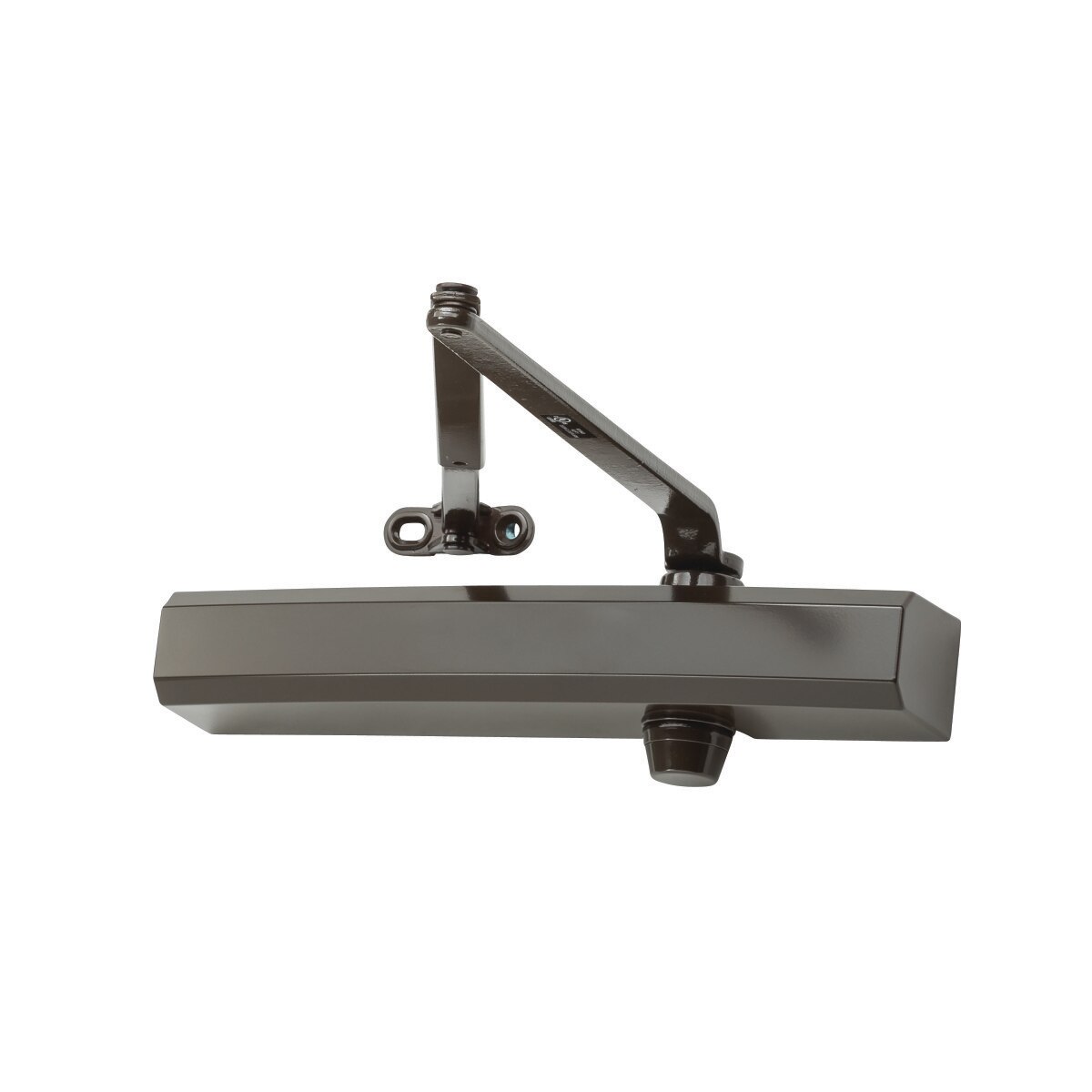

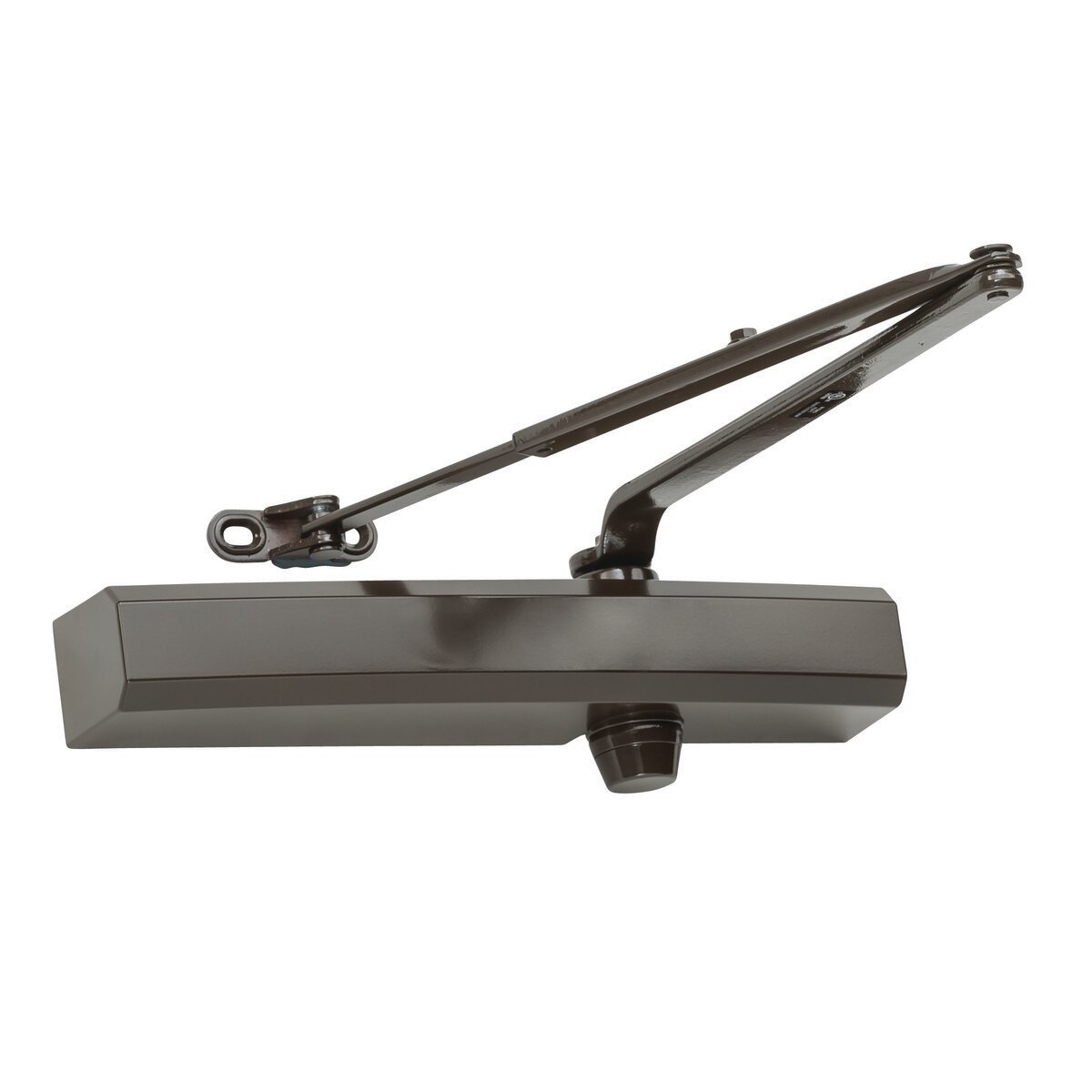

1450 Series Closer
The 1450 Series cast aluminum closer was specially designed to deliver consistent, dependable, long-term performance in frequently used, low-abusive traffic areas. With industry's most common hole pattern it can fit a range of applications like aftermarket replacement, aluminum storefronts and new construction projects.
FEATURES
- Size: Adjustable Spring Size 1-6
- Body Material: Cast Aluminum
- Cover: Slim Line Plastic Cover (SLIMPC) Standard, unless specified otherwise
- Bearing: Full Complement
- Pinion Journal: Single Heat Treated
- Fluid: All Weather Fluid
- Templating: Peel-n-Stick Template
- Mounting: Depending on arm selection, Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
- Fasteners: Universal Screw Pack (UNIV) Standard, unless specified otherwise
DIMENSIONS
- Exterior Door Width: 24" to 48"
- Interior Door Width: 24" to 60"
- Piston Diameter: 1 1/4"
- Pinion Journal Diameter: 5⁄8"
- Mounting Hole Pattern: 3⁄4" x 12"
Resources
CUT SHEETS
LCN 1000 Series Surface Mounted Closers Catalog
TEMPLATES
LCN Closers and Auto Operators Templates and Instructions Index
CERTIFICATIONS
- Meets ADA requirements
- UL and cUL listed
- Meets BAA (Buy American Act)
- Tested and certified under ANSI/BHMA A156.4 Grade 1
Options
| Cast Aluminum Cylinder Assembly (CYL) | Standard Cylinder Assembly |
| Delay Action Cylinder (CYLDEL) | Cylinder used for delayed action closing |
| Regular Arm/62PA Parallel Arm Bracket (RWPA) | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe, 1450-62PA required for parallel arm mounting |
| Regular Arm/62A Auxiliary Shoe (RW62A) | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Requires a top rail of 7 1⁄8" (181mm) Includes auxillary shoe, 1450-62A, for parallel arm mounting of regular arm with overhead holder/stop |
| Long Arm (LONG) | Includes long rod and shoe, 1450-79LR, for top jamb mount with deep reveals |
| Hold Open Arm/62PA Parallel Arm Bracket (HWPA) | Provides hold open function adjustable at shoe Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe, 1450-62PA, required for parallel arm mounting |
| Hold Open Long Arm (HLONG) | Provides hold open function adjustable at shoe Includes long head and tube, 1450-3048L, for top jamb mount with deep reveals |
| Extra Duty Arm (EDA) | Mounts Parallel Arm (Push Side) only Features solid forged steel main and forearm for potentially abusive installations |
| Extra Duty Arm/62G Thick Hub Shoe (EDA62G) | Mounts Parallel Arm (Push Side) only Features solid forged steel main and forearm for potentially abusive installations Includes thick hub shoe, 1450-62G, for blade stop clearance |
| Hold Open Extra Duty Arm (HEDA) | Handing required Mounts Parallel Arm (Push Side) only Provides hold open function adjustable at shoe Features solid forged steel main and forearm for potentially abusive installations |
| Cush-n-Stop Arm (CUSH) | Features solid forged steel main arm and forearm with stop in soffit shoe |
| Hold Open Cush-n-Stop Arm (HCUSH) | Provides hold-open function with templated stop/hold open points Handle controls hold open function |
| Spring Cush-n-Stop Arm (SCUSH) | For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe |
| Spring Hold Open Cush-n-Stop Arm (SHCUSH) | For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe Handle controls hold open function |
| 622/US19 | Flat Black Powder Coated |
| 689 | Aluminum Powder Coated |
| 690 | Statuary Bronze Powder Coated |
| 691 | Light Bronze Powder Coated |
| 693 | Gloss Black Powder Coated |
| 695 | Dark Bronze Powder Coated |
| 696 | Brass Powder Coated |
| SRI | Special Rust Inhibitor for Powder Coat Finishes |
| SLIMPC | Slim Line Plastic Cover - Standard |
| FPC | Full Plastic Cover |
| MC | Metal Cover - Handing Required |
| UNIV | Universal Screws - Standard |
| TORX | Torx Machine Screws |
| TBTRX | Through Bolt and Torx Machine Screws - 1-3/4" Door Thickness only |
