LN-1250-RW-PA-689
Best Seller

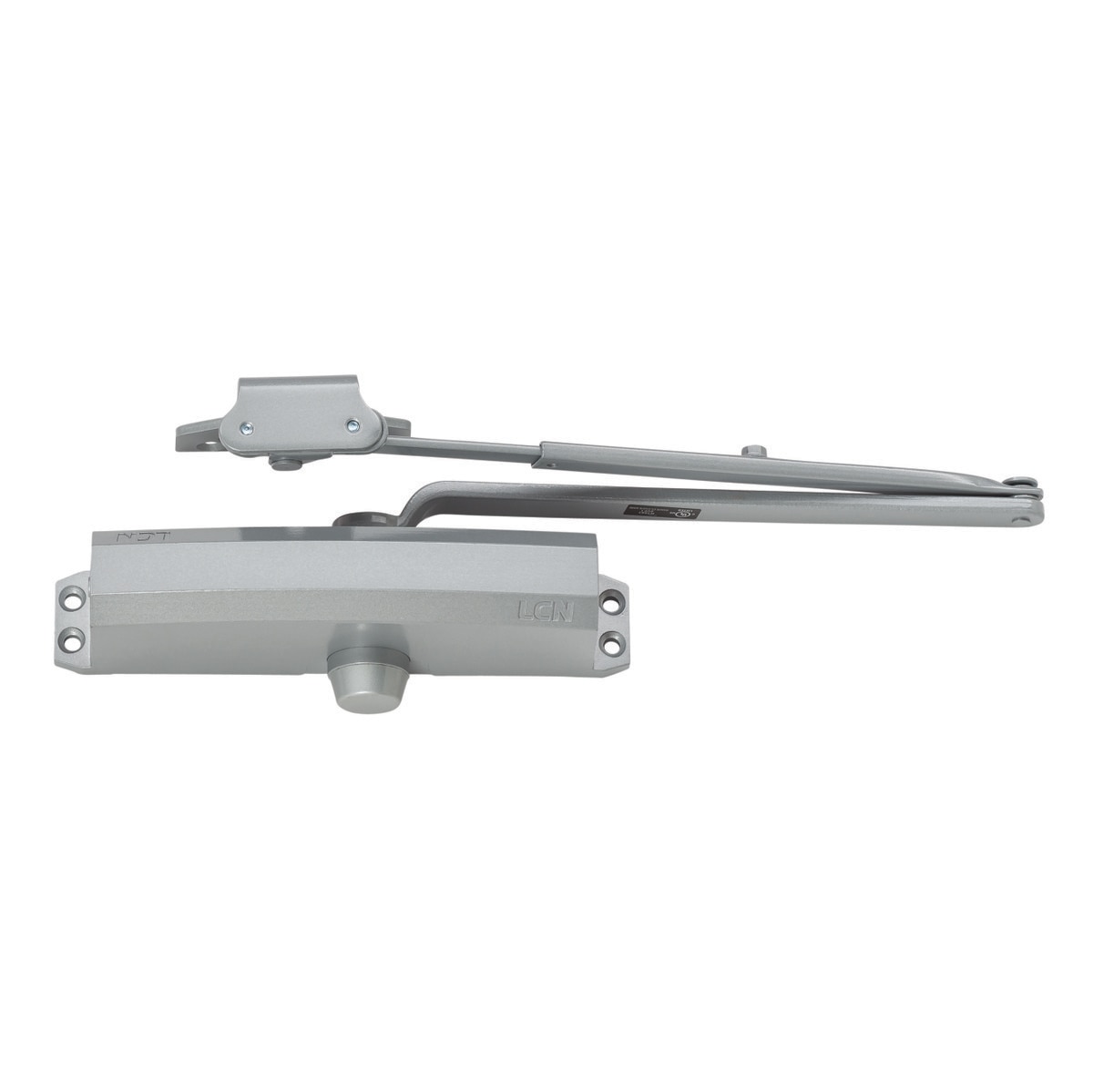

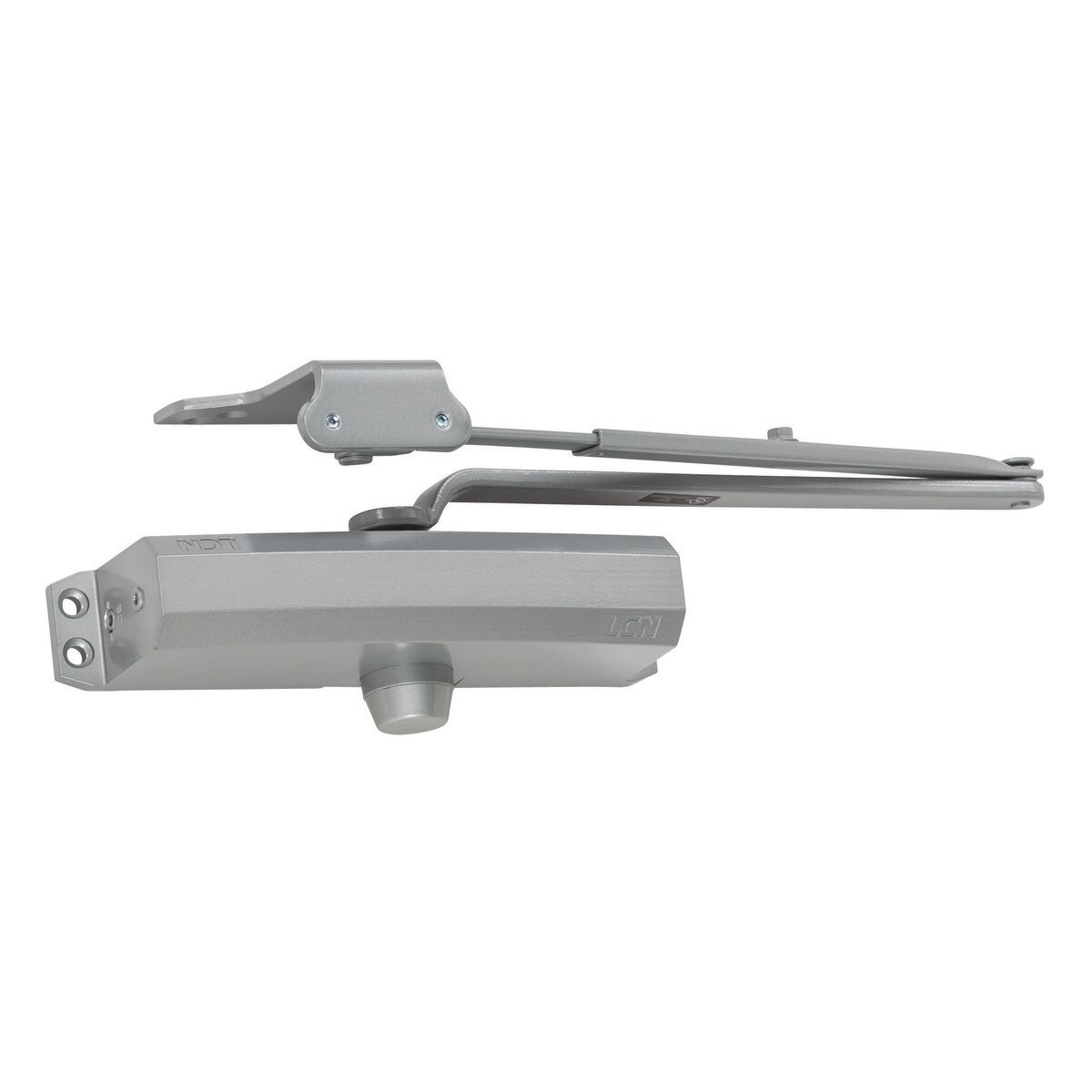

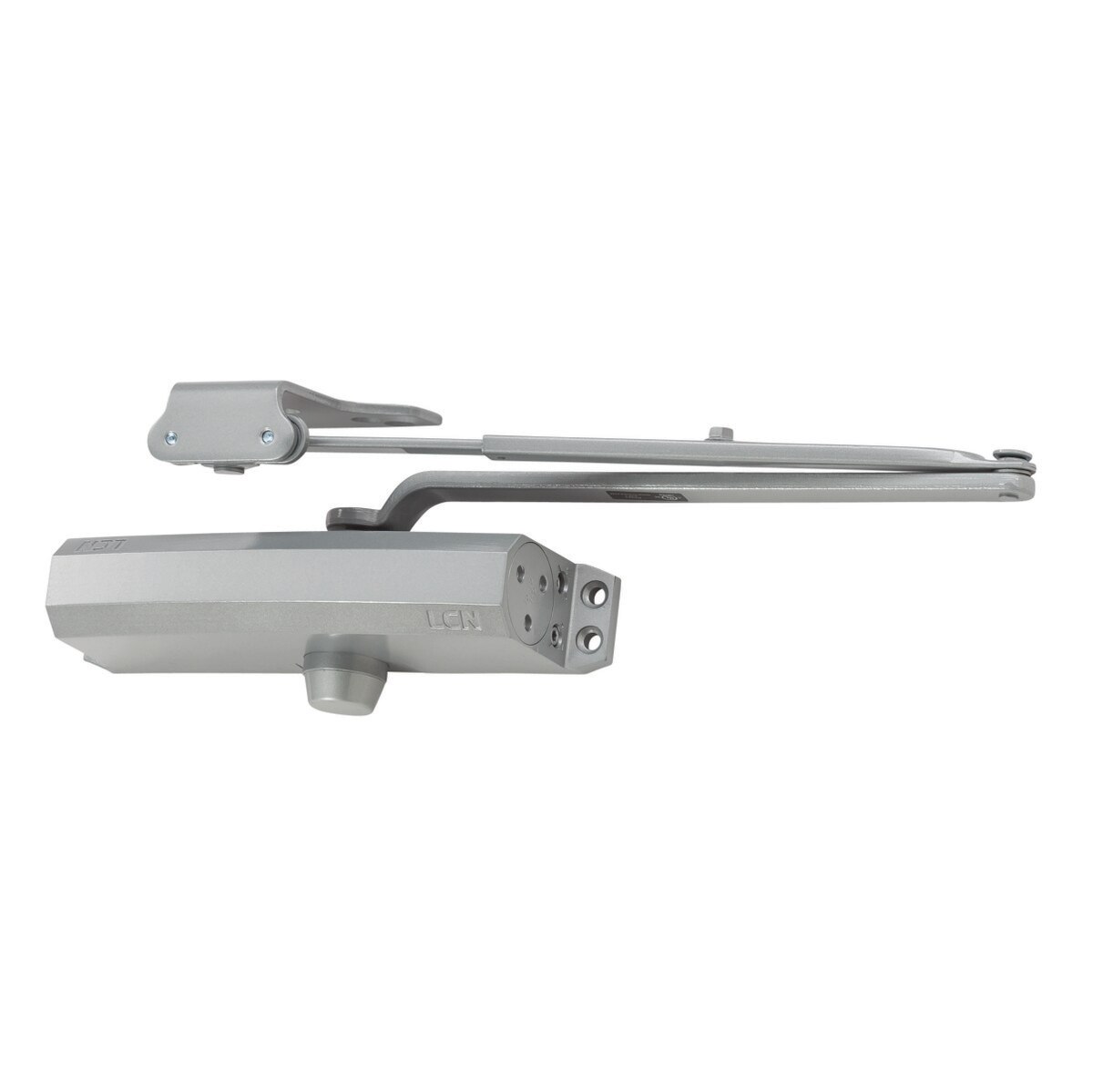

1250 Series Closer
Designed for low-frequency and low-abusive traffic areas, the 1250 Series is ideal for aluminum storefronts, interior offices and other applications. The closer features dependable operation, low maintenance and an optional slim line cover. Also, with the most common hole pattern in the industry, the 1250 Series is primed for easy aftermarket replacement.
FEATURES
- Size: Adjustable Spring Size 1-5
- Body Construction: Cast Aluminum
- Cover: Less Cover Standard, unless specified otherwise
- Bearing: Full Complement
- Pinion Journal: Single Heat Treated
- Fluid: All Weather Fluid
- Templating: Peel-n-Stick Template
- Mounting: Depending on arm selection, Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
- Fasteners: Universal Screw Pack (UNIV) Standard, unless specified otherwise
DIMENSIONS
- Exterior Door Width: 24" to 42"
- Interior Door Width: 24" to 54"
- Piston Diameter: 1 3⁄8"
- Pinion Journal Diameter: 5⁄8"
- Mounting Hole Pattern: 3⁄4" x 9 1⁄16"
CUT SHEETS
LCN 1000 Series Surface Mounted Closers Catalog
TEMPLATES
LCN Closers and Auto Operators Templates and Instructions Index
CERTIFICATIONS
- Meets ADA requirements
- UL and cUL listed
- Meets BAA (Buy American Act)
- Tested and certified under ANSI/BHMA A156.4 Grade 1
| Regular Arm/62PA Parallel Arm Bracket (RWPA) | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe, 1250-62PA, required for parallel arm mounting |
| Regular Arm/62A Auxiliary Shoe (RW62A) | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Requires a top rail of 7 1⁄8" (181mm). Includes auxillary shoe, 1250-62A, for parallel arm mounting of regular arm with overhead holder/stop |
| Hold Open Arm/62PA Parallel Arm Bracket (HWPA) | Provides hold open function adjustable at shoe Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe, 1250-62PA, required for parallel arm mounting |
| Long Arm (LONG) | Includes long rod and shoe, 1250-79LR, for top jamb mount with deep reveals |
| Hold Open Long Arm (HLONG) | Provides hold open function adjustable at shoe Includes long head and tube, 1250-3048L, for top jamb mount with deep reveals |
| Extra Duty Arm (EDA) | Mounts Parallel Arm (Push Side) only Features solid forged steel main and forearm for potentially abusive installations |
| Hold Open Extra Duty Arm (HEDA) | Handing required Mounts Parallel Arm (Push Side) only Provides hold open function adjustable at shoe Features solid forged steel main and forearm for potentially abusive installations |
| Cush-n-Stop Arm (CUSH) | Features solid forged steel main arm and forearm with stop in soffit shoe |
| Hold Open Cush-n-Stop Arm (HCUSH) | Provides hold-open function with templated stop/hold open points Handle controls hold open function |
| Spring Cush-n-Stop Arm (SCUSH) | For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe |
| Spring Hold Open Cush-n-Stop Arm (SHCUSH) | For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe Handle controls hold open function |
| 622/US19 | Flat Black Powder Coated |
| 689 | Aluminum Powder Coated |
| 690 | Statuary Bronze Powder Coated |
| 691 | Light Bronze Powder Coated |
| 693 | Gloss Black Powder Coated |
| 695 | Dark Bronze Powder Coated |
| 696 | Brass Powder Coated |
| SRI | Special Rust Inhibitor for Powder Coat Finishes |
| LESSCOV | Less Cover - Standard |
| SLIMPC | Slim Line Plastic Cover |
| UNIV | Universal Screws - Standard |
| TORX | Torx Machine Screws |
| TBTRX | Through Bolt and Torx Machine Screws - 1-3/4" Door Thickness only |
