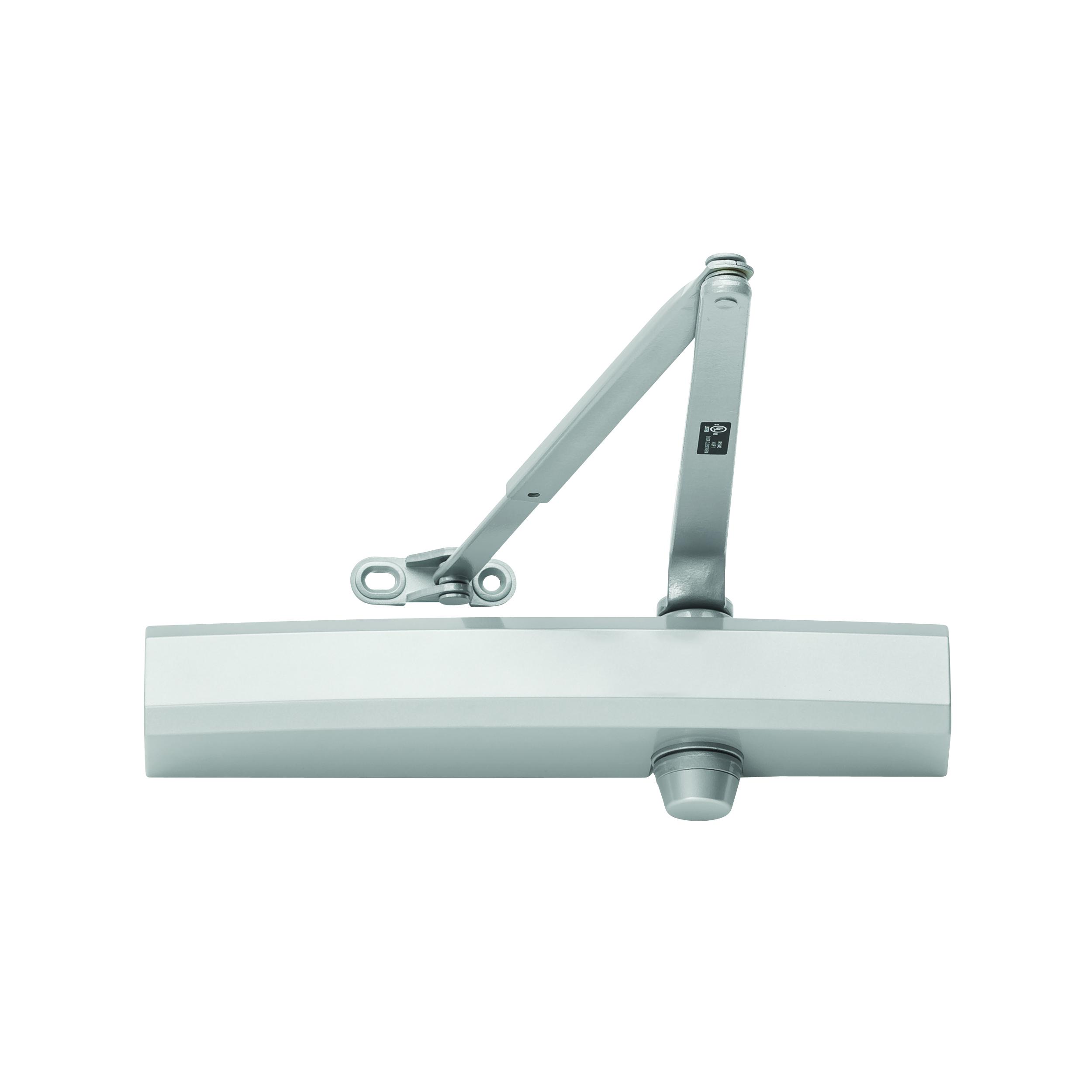

LN-1450-RW-PA-SLIM-689

SKU: LN-1450-RW-PA-SLIM-689
List Price: $520.00
Manufacturer: LCN
Category: Surface Mount Closers
Finish Code: 689
Description: ADJ 1-6 CLSER REG ARM W/PAB STD. 12" CTC SLIM COVER -ALUM F

In Stock

Available: 32

Price Update 2/27/26

Back

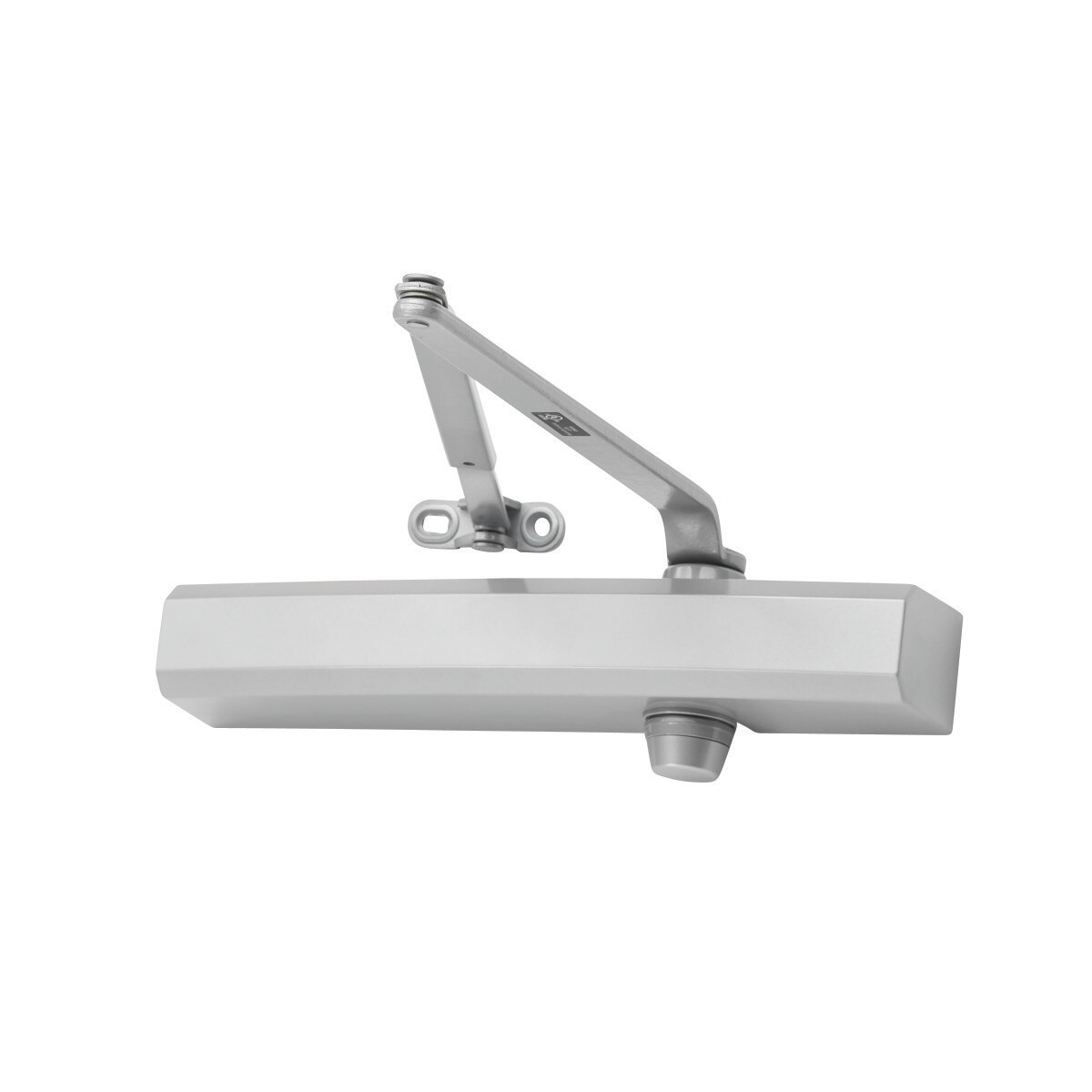

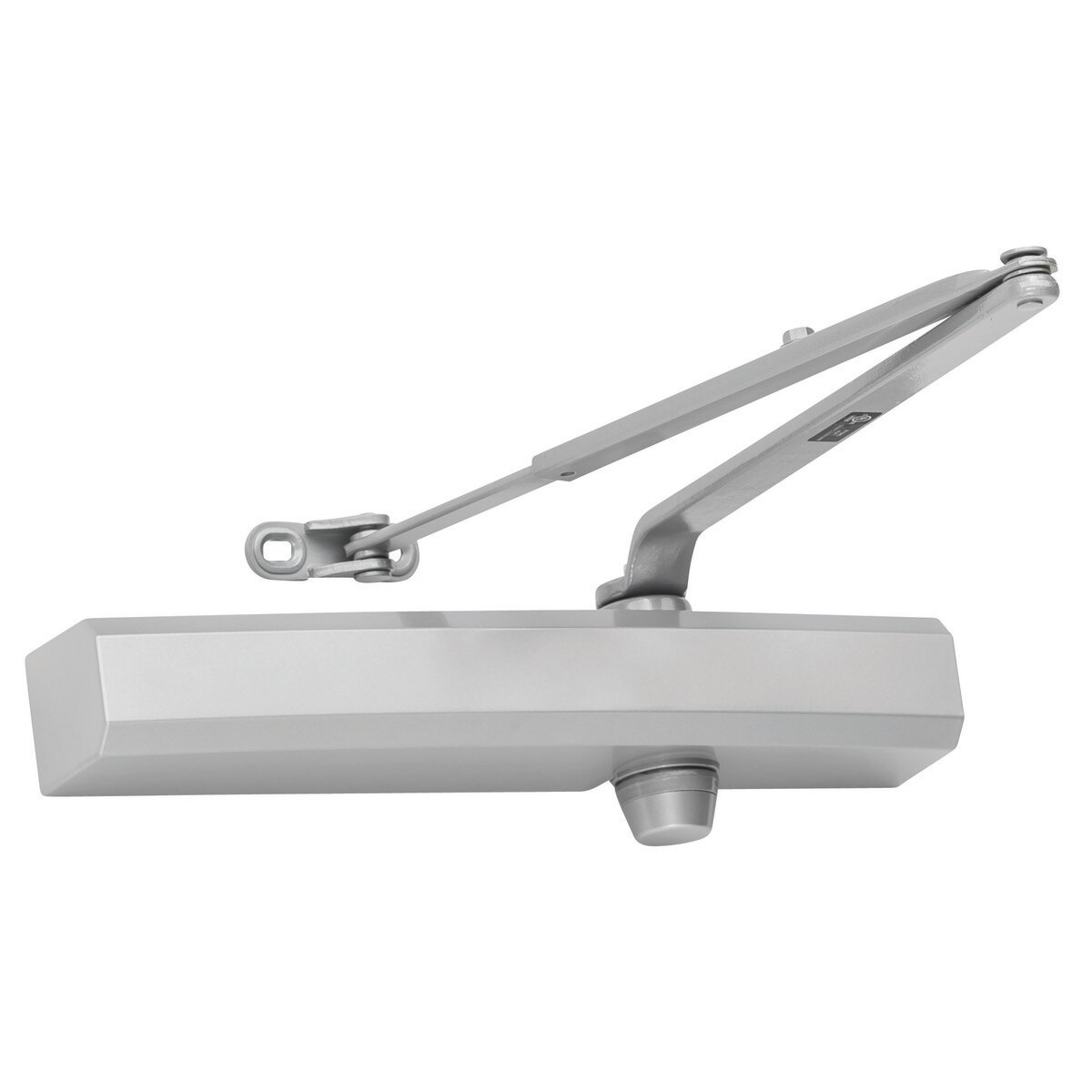

1450 Series Closer


The 1450 Series cast aluminum closer was specially designed to deliver consistent, dependable, long-term performance in frequently used, low-abusive traffic areas. With industry's most common hole pattern it can fit a range of applications like aftermarket replacement, aluminum storefronts and new construction projects.

FEATURES


  • Size: Adjustable Spring Size 1-6
  • Body Material: Cast Aluminum
  • Cover: Slim Line Plastic Cover (SLIMPC) Standard, unless specified otherwise
  • Bearing: Full Complement
  • Pinion Journal: Single Heat Treated
  • Fluid: All Weather Fluid
  • Templating: Peel-n-Stick Template
  • Mounting: Depending on arm selection, Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
  • Fasteners: Universal Screw Pack (UNIV) Standard, unless specified otherwise

DIMENSIONS


  • Exterior Door Width: 24" to 48"
  • Interior Door Width: 24" to 60"
  • Piston Diameter: 1 1/4"
  • Pinion Journal Diameter: 5⁄8"
  • Mounting Hole Pattern: 3⁄4" x 12"
Back

CUT SHEETS


LCN 1000 Series Surface Mounted Closers Catalog

TEMPLATES


LCN Closers and Auto Operators Templates and Instructions Index

CERTIFICATIONS


  • Meets ADA requirements
  • UL and cUL listed
  • Meets BAA (Buy American Act)
  • Tested and certified under ANSI/BHMA A156.4 Grade 1
Back


Cast Aluminum Cylinder Assembly (CYL) Standard Cylinder Assembly
Delay Action Cylinder (CYLDEL) Cylinder used for delayed action closing


Regular Arm/62PA Parallel Arm Bracket (RWPA) Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
Includes PA shoe, 1450-62PA required for parallel arm mounting
Regular Arm/62A Auxiliary Shoe (RW62A) Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
Requires a top rail of 7 1⁄8" (181mm)
Includes auxillary shoe, 1450-62A, for parallel arm mounting of regular arm with overhead holder/stop
Long Arm (LONG) Includes long rod and shoe, 1450-79LR, for top jamb mount with deep reveals
Hold Open Arm/62PA Parallel Arm Bracket (HWPA) Provides hold open function adjustable at shoe
Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
Includes PA shoe, 1450-62PA, required for parallel arm mounting
Hold Open Long Arm (HLONG) Provides hold open function adjustable at shoe
Includes long head and tube, 1450-3048L, for top jamb mount with deep reveals
Extra Duty Arm (EDA) Mounts Parallel Arm (Push Side) only
Features solid forged steel main and forearm for potentially abusive installations
Extra Duty Arm/62G Thick Hub Shoe (EDA62G) Mounts Parallel Arm (Push Side) only
Features solid forged steel main and forearm for potentially abusive installations
Includes thick hub shoe, 1450-62G, for blade stop clearance
Hold Open Extra Duty Arm (HEDA) Handing required
Mounts Parallel Arm (Push Side) only
Provides hold open function adjustable at shoe
Features solid forged steel main and forearm for potentially abusive installations
Cush-n-Stop Arm (CUSH) Features solid forged steel main arm and forearm with stop in soffit shoe
Hold Open Cush-n-Stop Arm (HCUSH) Provides hold-open function with templated stop/hold open points
Handle controls hold open function
Spring Cush-n-Stop Arm (SCUSH) For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
Spring Hold Open Cush-n-Stop Arm (SHCUSH) For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
Handle controls hold open function


622/US19 Flat Black Powder Coated
689 Aluminum Powder Coated
690 Statuary Bronze Powder Coated
691 Light Bronze Powder Coated
693 Gloss Black Powder Coated

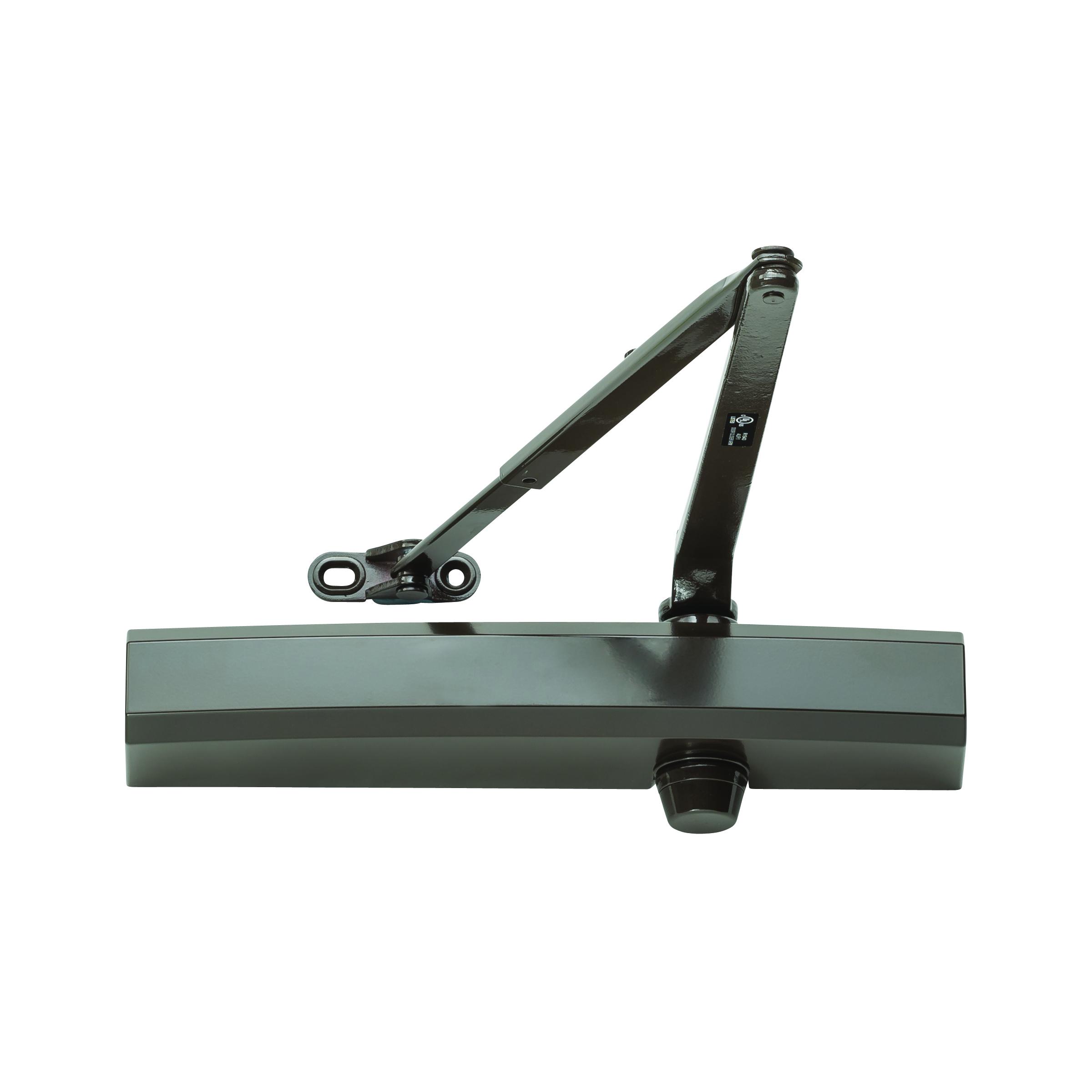

695 Dark Bronze Powder Coated
696 Brass Powder Coated
SRI Special Rust Inhibitor for Powder Coat Finishes


SLIMPC Slim Line Plastic Cover - Standard
FPC Full Plastic Cover
MC Metal Cover - Handing Required


UNIV Universal Screws - Standard
TORX Torx Machine Screws
TBTRX Through Bolt and Torx Machine Screws - 1-3/4" Door Thickness only
