LN-1250-3049-PA-689

(0)No Reviews yet
SKU: LN-1250-3049-PA-689
List Price: $173.00
Manufacturer: Lcn

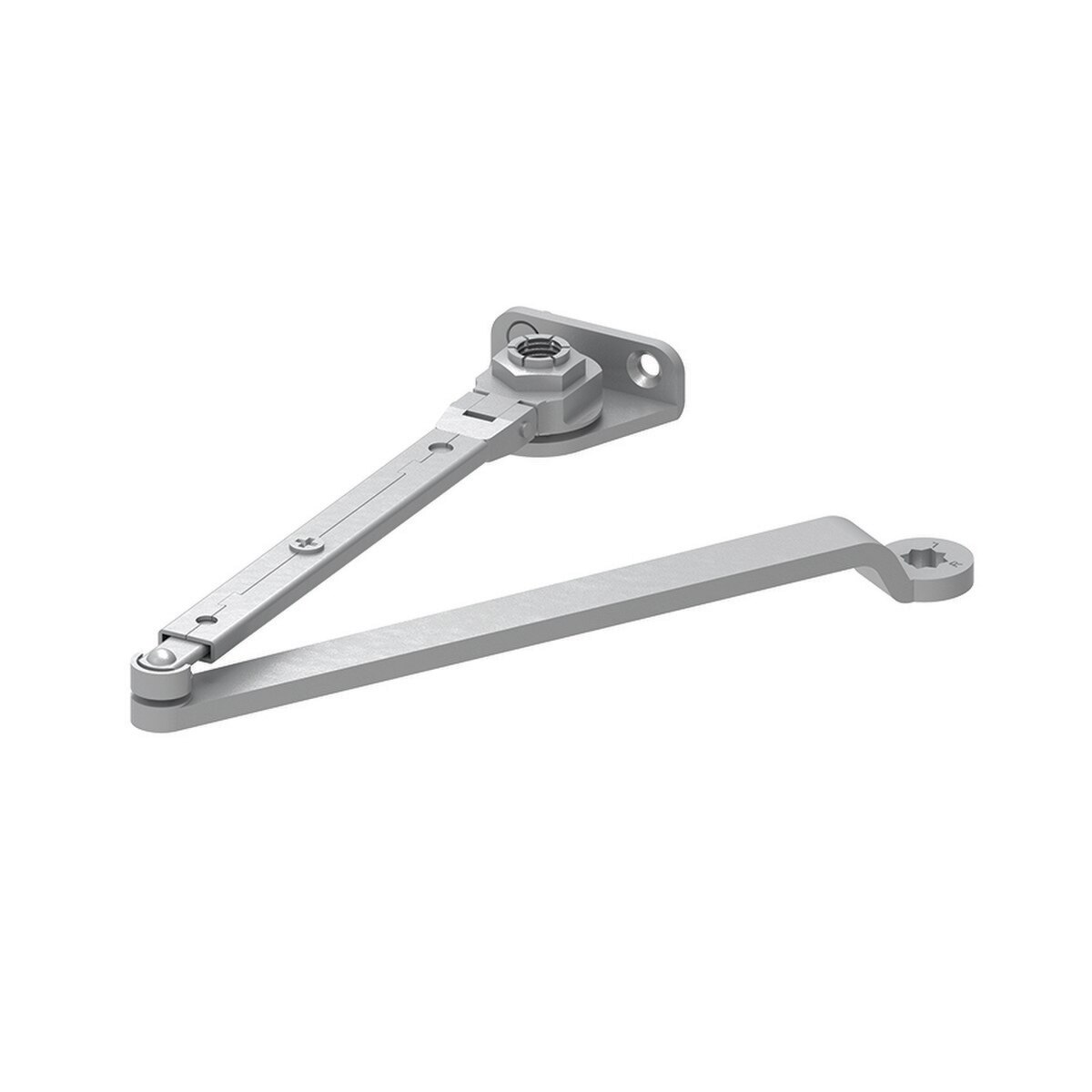

Description: 1250-3049 Hold Open Arm with Parallel Arm Bracket (HWPA) for 1250 Series Closers
Category: Parts And Accessories
Finish Code: 689
Weight: 2

In Stock and Ready to Ship

Available: 7

1250-3049PA


Hold Open Arm with Parallel Arm Bracket (HWPA) for 1250 Series Closers


FEATURES


  • Finish: 689 - Aluminum Powder Coated
  • Handing: Non-Handed
  • Includes 62PA Parallel Arm Shoe
  • Mounts hinge side, top jamb or parallel arm (62PA required)
  • Hold open adjustable at shoe

CUT SHEETS

LCN 1000 Series Surface Mounted Closers Catalog


TEMPLATES

LCN Closers and Auto Operators Templates and Instructions Index


CERTIFICATIONS


  • Meets ADA requirements
  • UL and cUL listed
  • Meets BAA (Buy American Act)
  • Tested and certified under ANSI/BHMA A156.4 Grade 1

ARM TYPE OPTIONS


Regular Arm/62PA Parallel Arm Bracket (RWPA) Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
Includes PA shoe, 1250-62PA, required for parallel arm mounting
Regular Arm/62A Auxiliary Shoe (RW62A) Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
Requires a top rail of 7 1⁄8" (181mm).
Includes auxillary shoe, 1250-62A, for parallel arm mounting of regular arm with overhead holder/stop
Hold Open Arm/62PA Parallel Arm Bracket (HWPA) Provides hold open function adjustable at shoe
Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
Includes PA shoe, 1250-62PA, required for parallel arm mounting
Long Arm (LONG) Includes long rod and shoe, 1250-79LR, for top jamb mount with deep reveals
Hold Open Long Arm (HLONG) Provides hold open function adjustable at shoe
Includes long head and tube, 1250-3048L, for top jamb mount with deep reveals
Extra Duty Arm (EDA) Mounts Parallel Arm (Push Side) only
Features solid forged steel main and forearm for potentially abusive installations
Hold Open Extra Duty Arm (HEDA) Handing required
Mounts Parallel Arm (Push Side) only
Provides hold open function adjustable at shoe
Features solid forged steel main and forearm for potentially abusive installations
Cush-n-Stop Arm (CUSH) Features solid forged steel main arm and forearm with stop in soffit shoe
Hold Open Cush-n-Stop Arm (HCUSH) Provides hold-open function with templated stop/hold open points
Handle controls hold open function
Spring Cush-n-Stop Arm (SCUSH) For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
Spring Hold Open Cush-n-Stop Arm (SHCUSH) For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
Handle controls hold open function

FINISH OPTIONS


622/US19 Flat Black Powder Coated
689 Aluminum Powder Coated
690 Statuary Bronze Powder Coated
691 Light Bronze Powder Coated
693 Gloss Black Powder Coated
695 Dark Bronze Powder Coated
696 Brass Powder Coated
SRI Special Rust Inhibitor for Powder Coat Finishes

COVER OPTIONS


LESSCOV Less Cover - Standard
SLIMPC Slim Line Plastic Cover

FASTENER OPTIONS


UNIV Universal Screws - Standard
TORX Torx Machine Screws
TBTRX Through Bolt and Torx Machine Screws - 1-3/4" Door Thickness only
