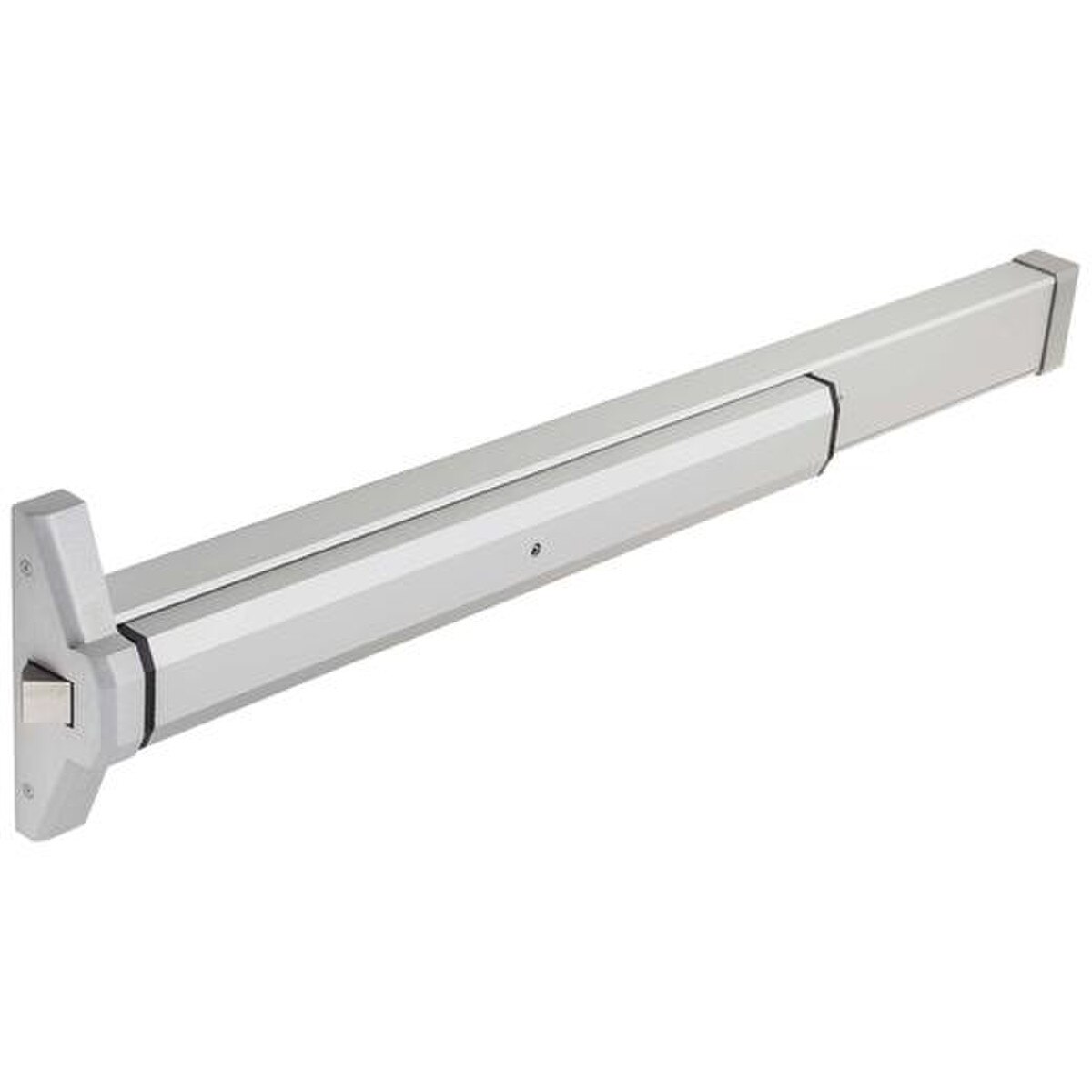

S801-NS-RIM-36-CYL-DU, Sentinel

• Listed by Underwriters Laboratories Inc. for Panic Hardware.
• Meets ANSI A156.3-2001 Grade 2 standards, ensuring security and durability for high-traffic areas, rated for
250,000 cycles.
• Requires a 2" mounting surface, suitable for Narrow, Medium, and Wide Stile Aluminum Doors, as well as
Hollow Metal and Wood Doors.
• Non-handed design, compatible with both LHRB (Left Hand Reverse Bevel) and RHRB (Right Hand Reverse
Bevel) door applications.
• The S801 Series features a 1" forged steel latch bolt with a 5/8" throw for secure engagement with the
frame-mounted roller strike.
• Constructed with a 6063 hardened anodized aluminum push bar and casing, a steel back plate base, and
coated metal end caps for an attractive and durable finish.
• Includes hex dogging key for dogging the touch bar and a standard external key rim cylinder for outside
unlatching.
