AB-A210HDD-83

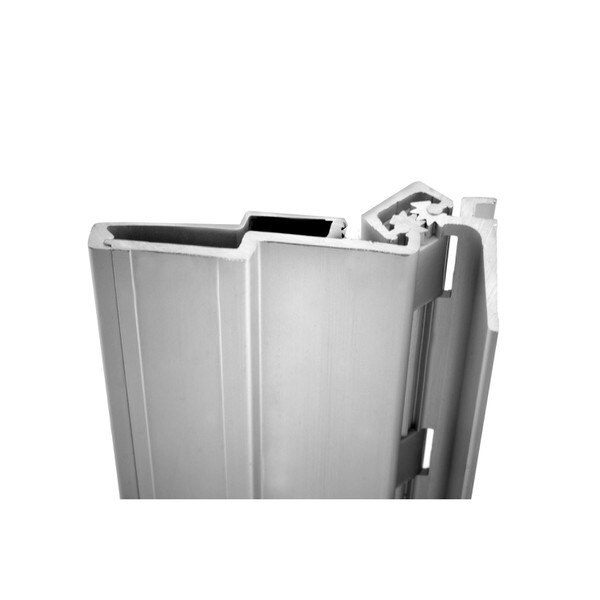

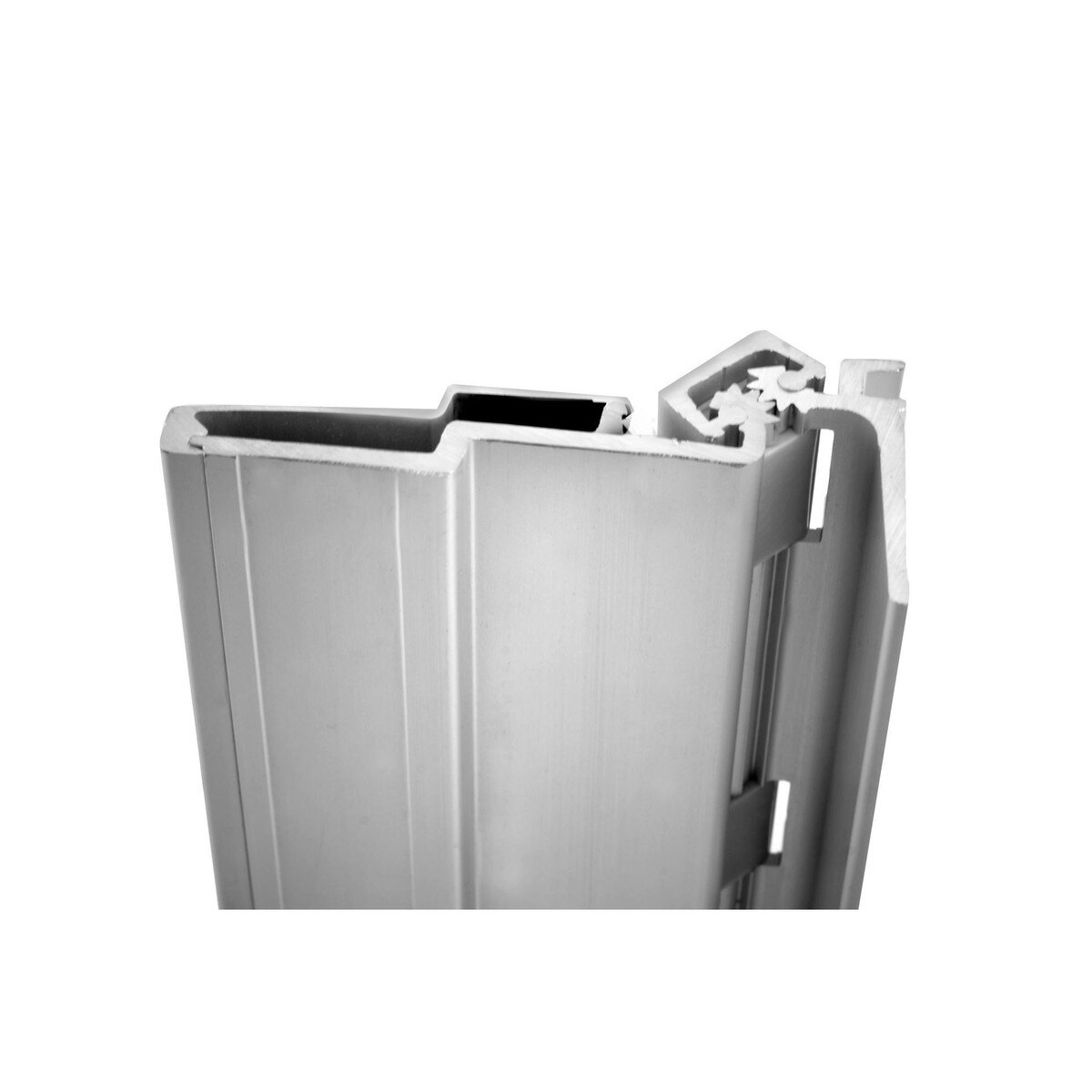

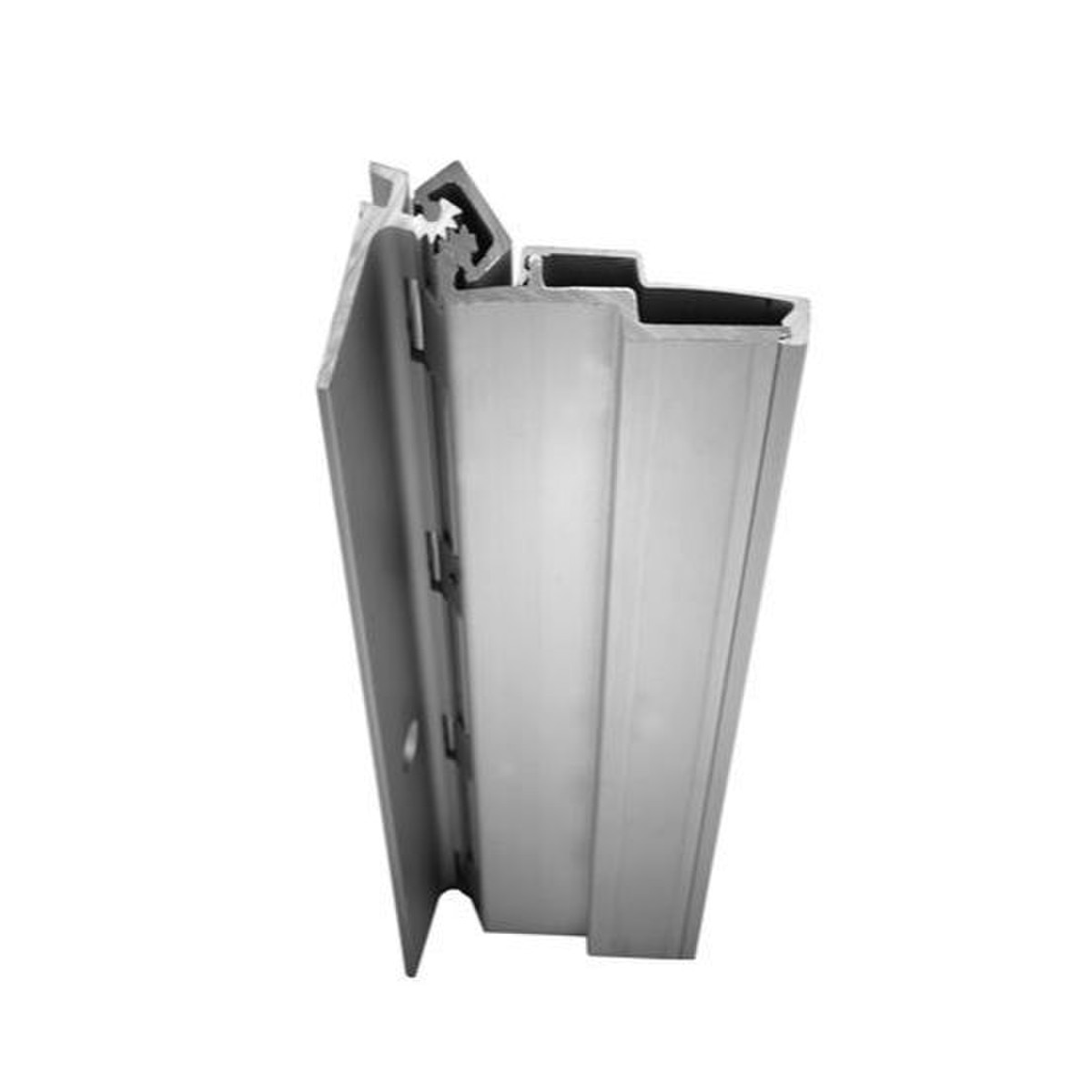

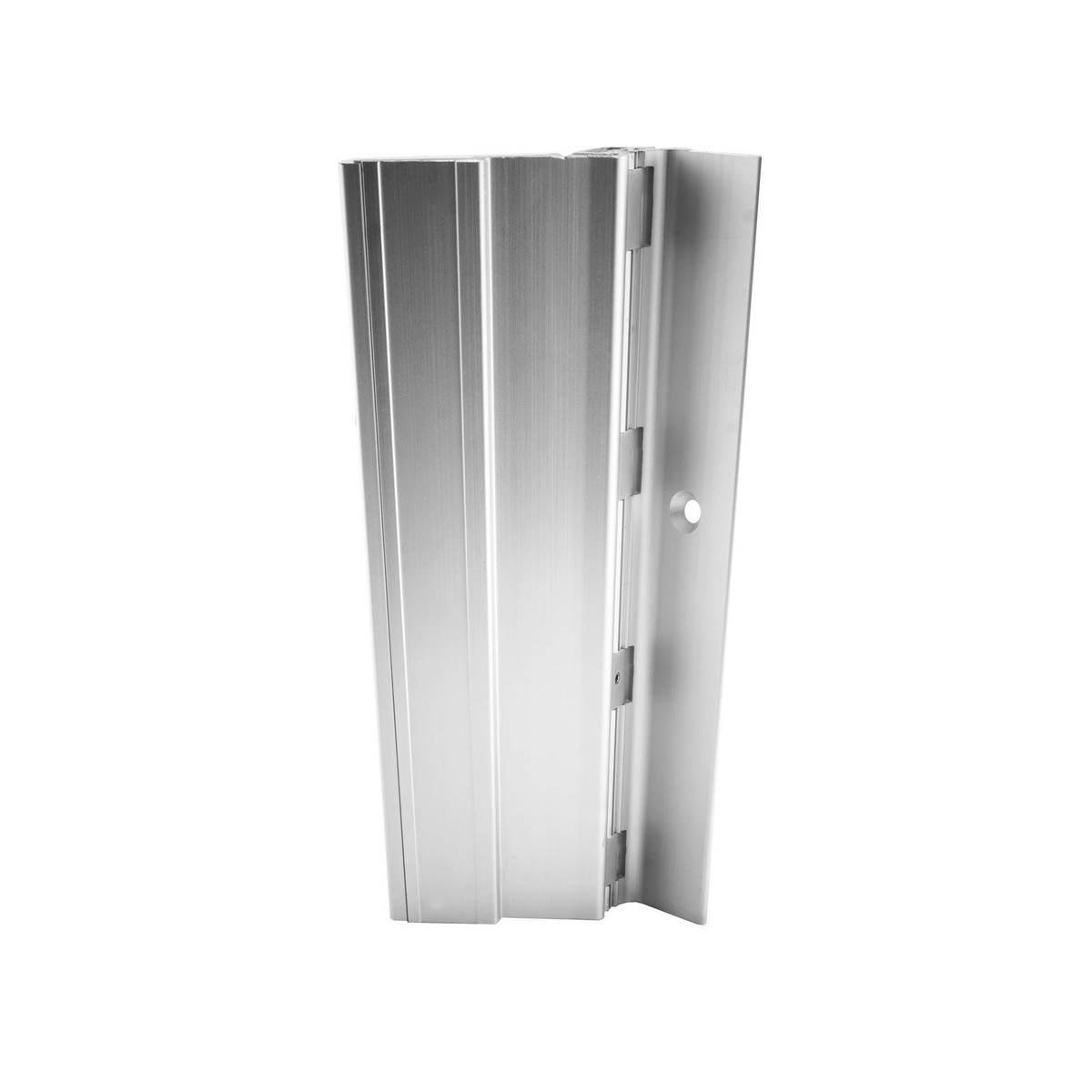

A210HD 83" Aluminum Continuous Gear Hinges Full Surface Swing Clear

FEATURES

• Length: 83"
• Finish: 313 - Dark Bronze Anodized
• BHMA Grade 1
• Full Surface, Heavy Duty
• No Door Inset, Flush Mount
• 48" door width maximum
• 450 lbs. door weight maximum
• Average weight per unit = 14 pounds

CUT SHEETS

A210HD & A570HD Aluminum Continuous Gear Hinges Full Surface - Cut Sheet

TEMPLATES

A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear

Fire Rated Studs for Full Surface Aluminum Continuous Geared Hinge - Template

Full Surface Installation Instructions

TECH MEMOS

Aluminum Continuous Geared Hinge Door Clearance Chart
