AB-A110HDC-83

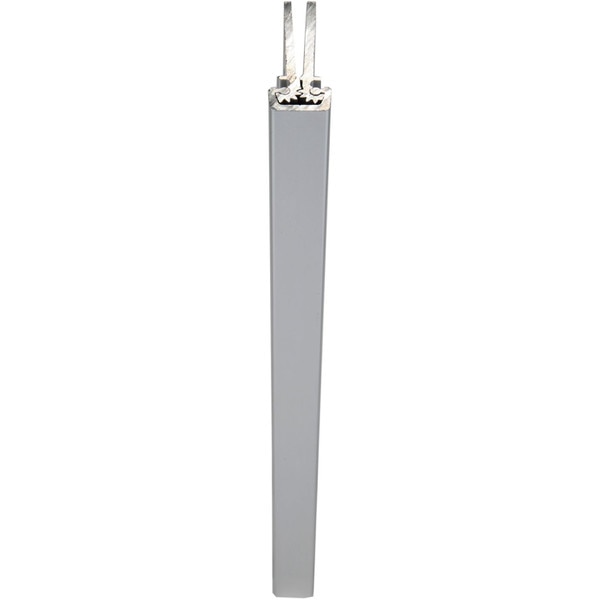

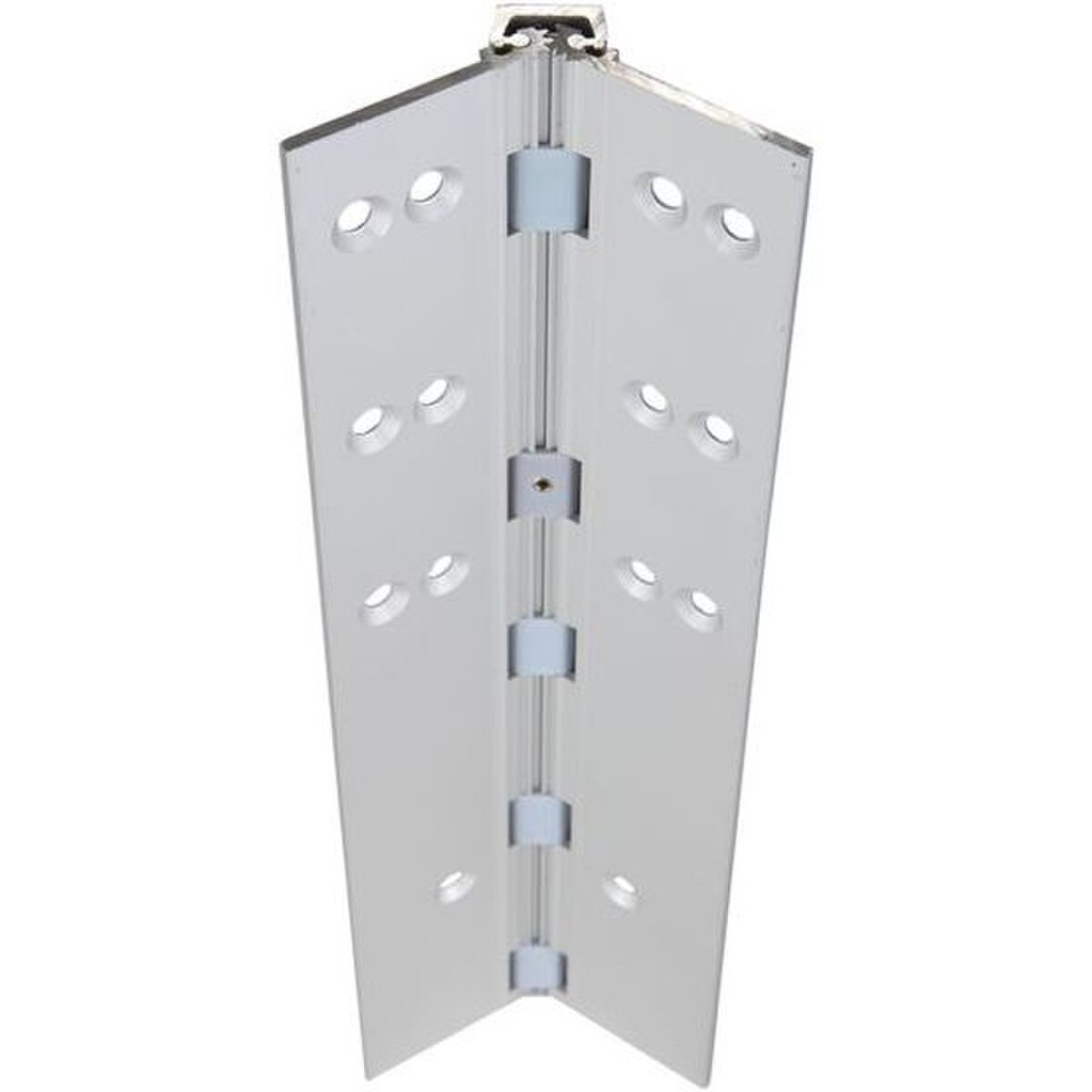

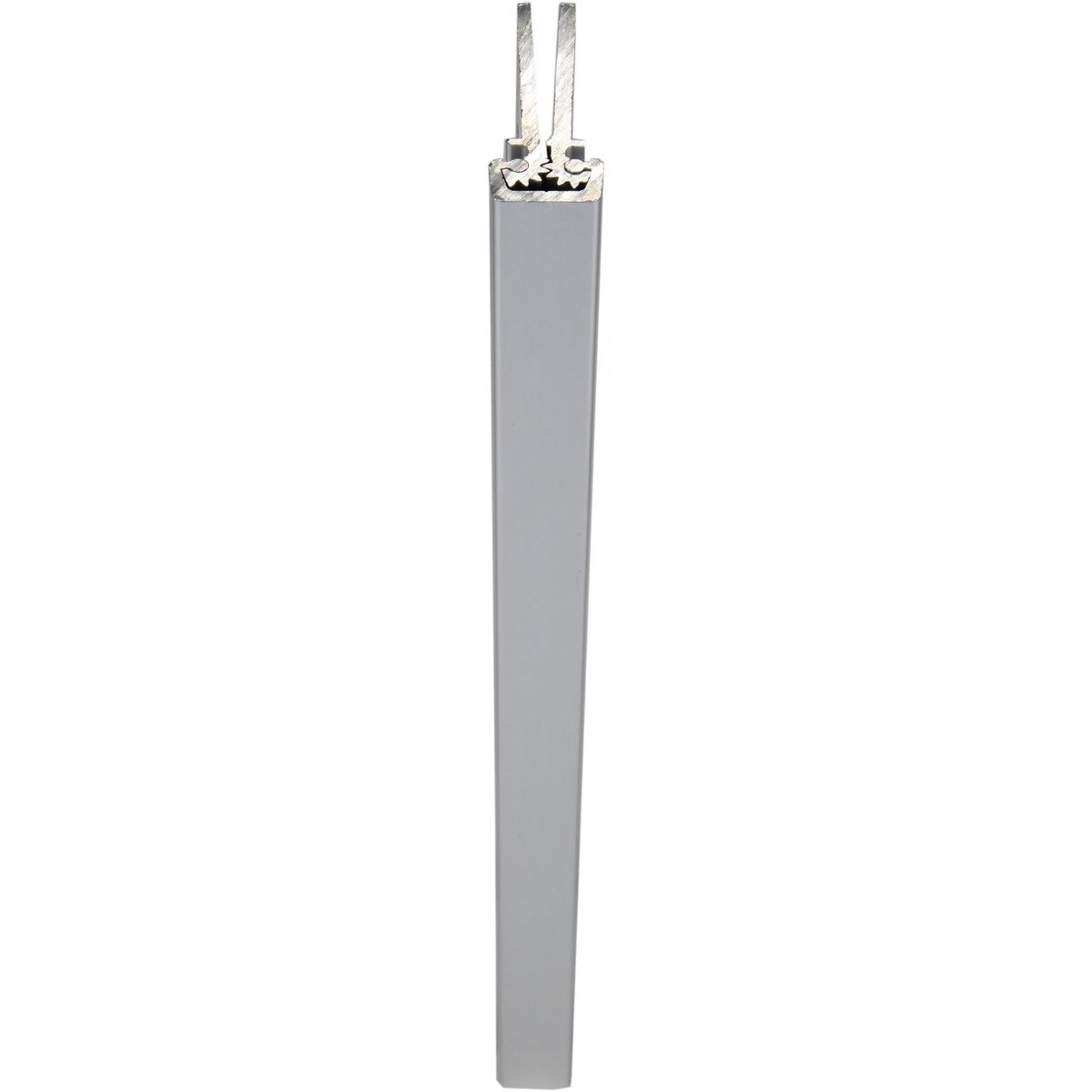

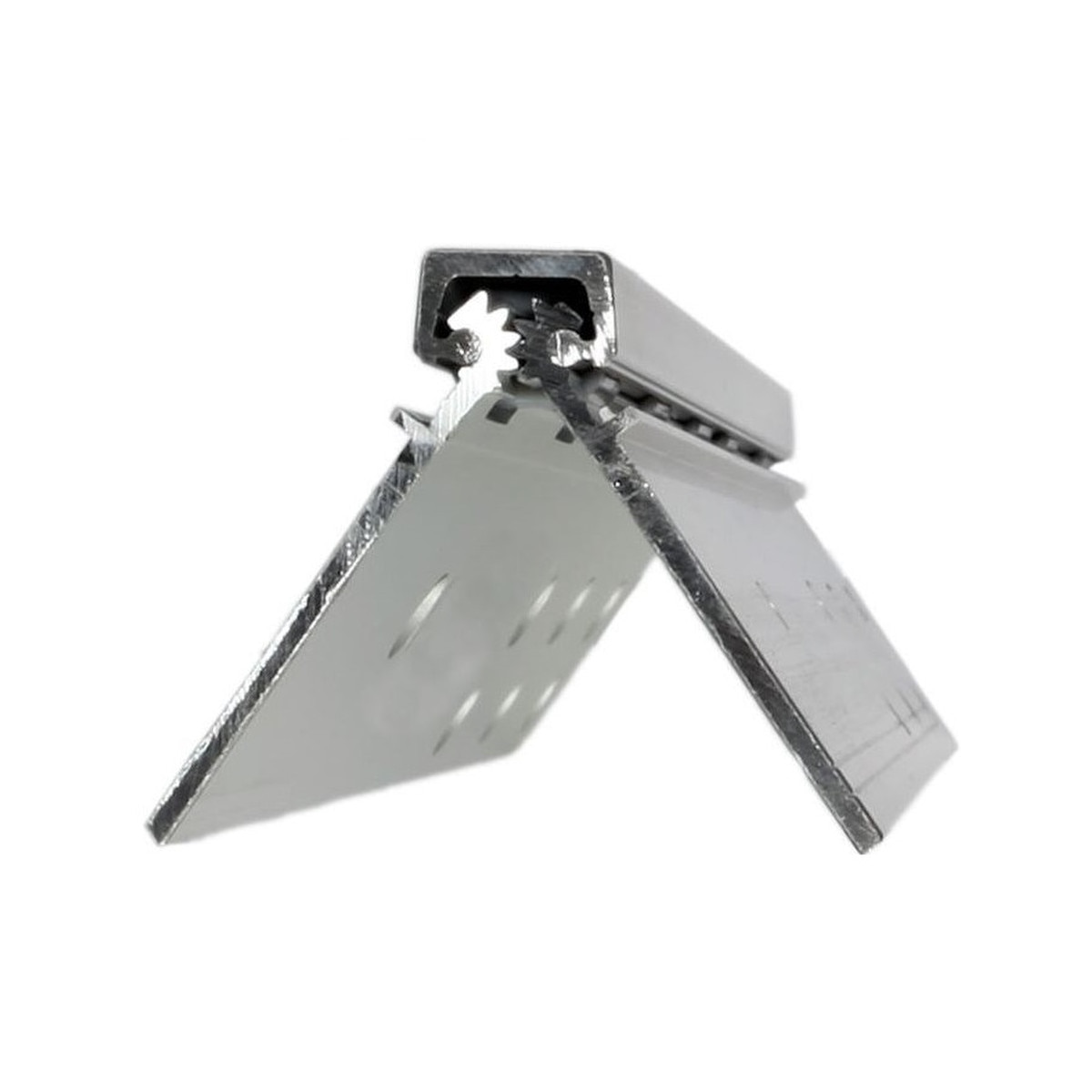

A110HD 83" Aluminum Continuous Gear Hinges Full Mortise

FEATURES

• Length: 83"
• Finish: 628 - Clear Anodized Aluminum
• BHMA Grade 1
• Full Concealed, Heavy Duty
• No Door Inset, Flush Mount
• 48" door width maximum
• 450 lbs. door weight maximum
• Average weight per unit = 11 pounds

CUT SHEETS

A110HD/A110LL & A110WT Aluminum Continuous Gear Hinges Full Mortise - Cut Sheet

TEMPLATES

A110HD/A110LL Aluminum Continuous Gear Hinges Full Mortise

Fire Rated Studs for Full Concealed Aluminum Geared Hinge

Full Concealed Installation Instructions

TECH MEMOS

Aluminum Continuous Geared Hinge Door Clearance Chart
