VD-EPT-10-SP28, Von Duprin

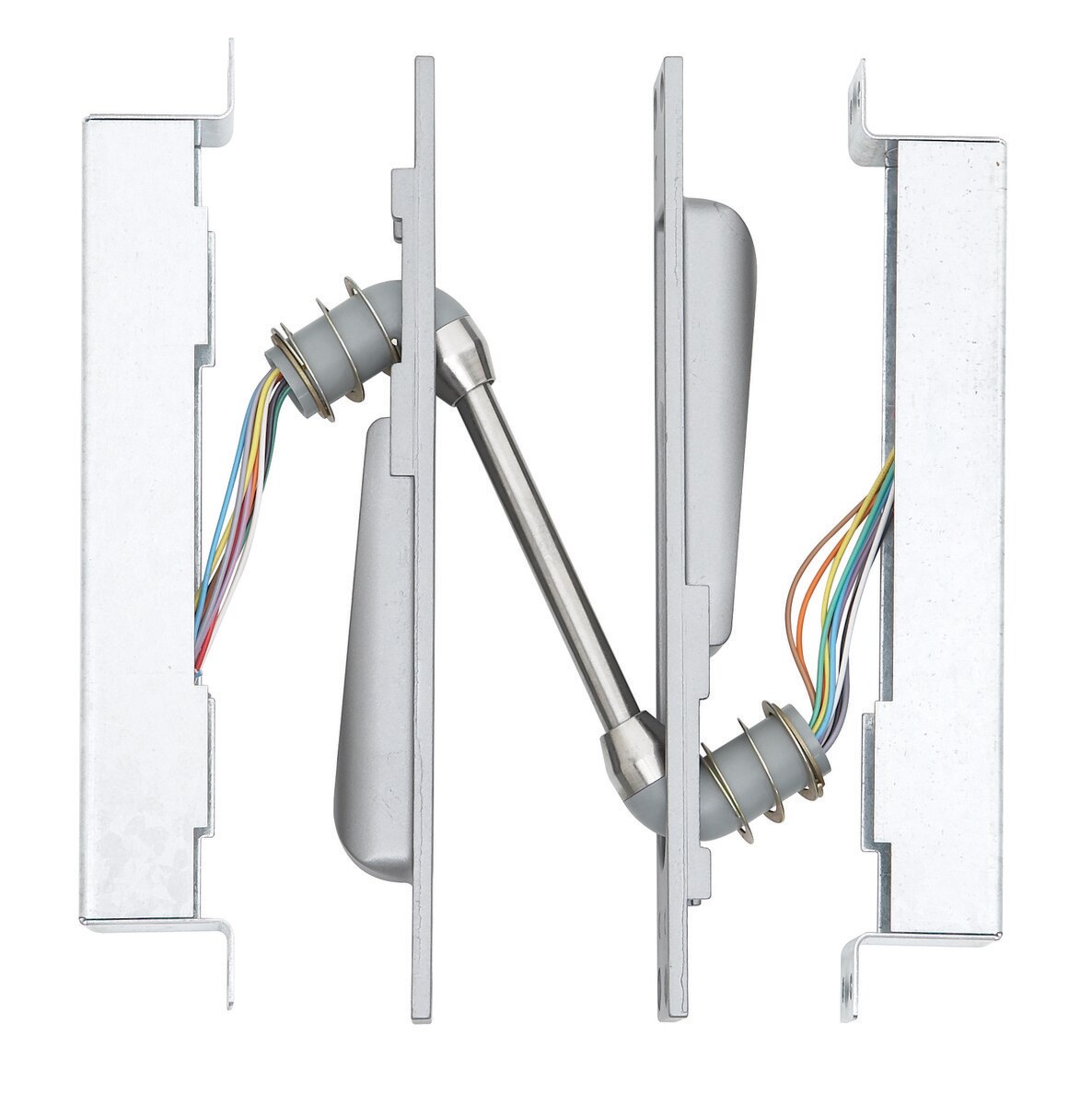

Electrical Power Transfer (EPT-10)
10 Wire/24 Gauge
Electric Power Transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The units are completely concealed when the door is in the closed position, and are ideal for installations involving abuse or heavy traffic.
FEATURES
- EPT-10: Ten 24 gauge wires
- Finish: 689/SP28 - Aluminum Painted
- Ball-and-socket joint construction provides cut and pinch protection for wiring
- Built for heavy traffic and high abuse openings
DIMENSIONS
- Up to 1 AMPS @ 24VDC, with a 16 AMPS maximum surge
- Housing: 9" x 1 ¼" x 1 5⁄8" (229 mm x 32 mm x 38 mm)
