VD-99EO-36-710

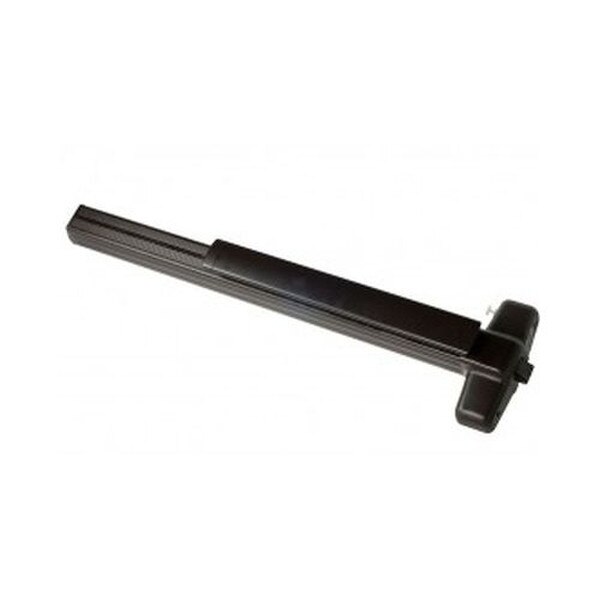

99 Series Rim Exit Device
99 rim exit devices for all types of single and double doors with mullion. UL listed for panic exit hardware
OPERATION
Device ships EO/DT/NL; Field selectable.
For TP, K or L remove NL drive screw from device.
FEATURES
- Handing: Non-Handed
- Finish: 710/313AN - Dark Bronze Anodized
- Mechanism Case Design: Grooved
- Fasteners and through bolts: Includes screw pack for 1 3⁄4" (44 mm) and 2 ¼" (57 mm) thick metal or wood doors
DIMENSIONS
- Device Length: 3'-0" (914 mm)
- Door Size: 2'-4" - 3'-0" (711 mm to 914 mm)
- Device Centerline from Finished Floor: 39 13⁄16" (1011 mm)/39 11⁄16" (1008 mm) with mullion
- Center Case: 8" x 2 3⁄4" x 2 3⁄8" (203 mm x 70 mm x 60 mm)
- Mechanism Case: 2 1⁄4" x 2 1⁄4" (57 mm x 57 mm)
- Push Bar Neutral P
CUT SHEETS
TEMPLATES
Von Duprin 98/99 Rim Exit Device Installation Instructions
Von Duprin 99 Rim Optional Strike Installation Instructions
Von Duprin 98/99 Wood Door Templates Index
Von Duprin 98/99 Series Exit Device Hollow Metal Door Applications Template Index
CERTIFICATIONS
- ANSI/BHMA A156.3 2014 Grade 1 certified
- ANSI/UL 305
- CAN/ULC-S132
