LN-4041-SCUSH-689

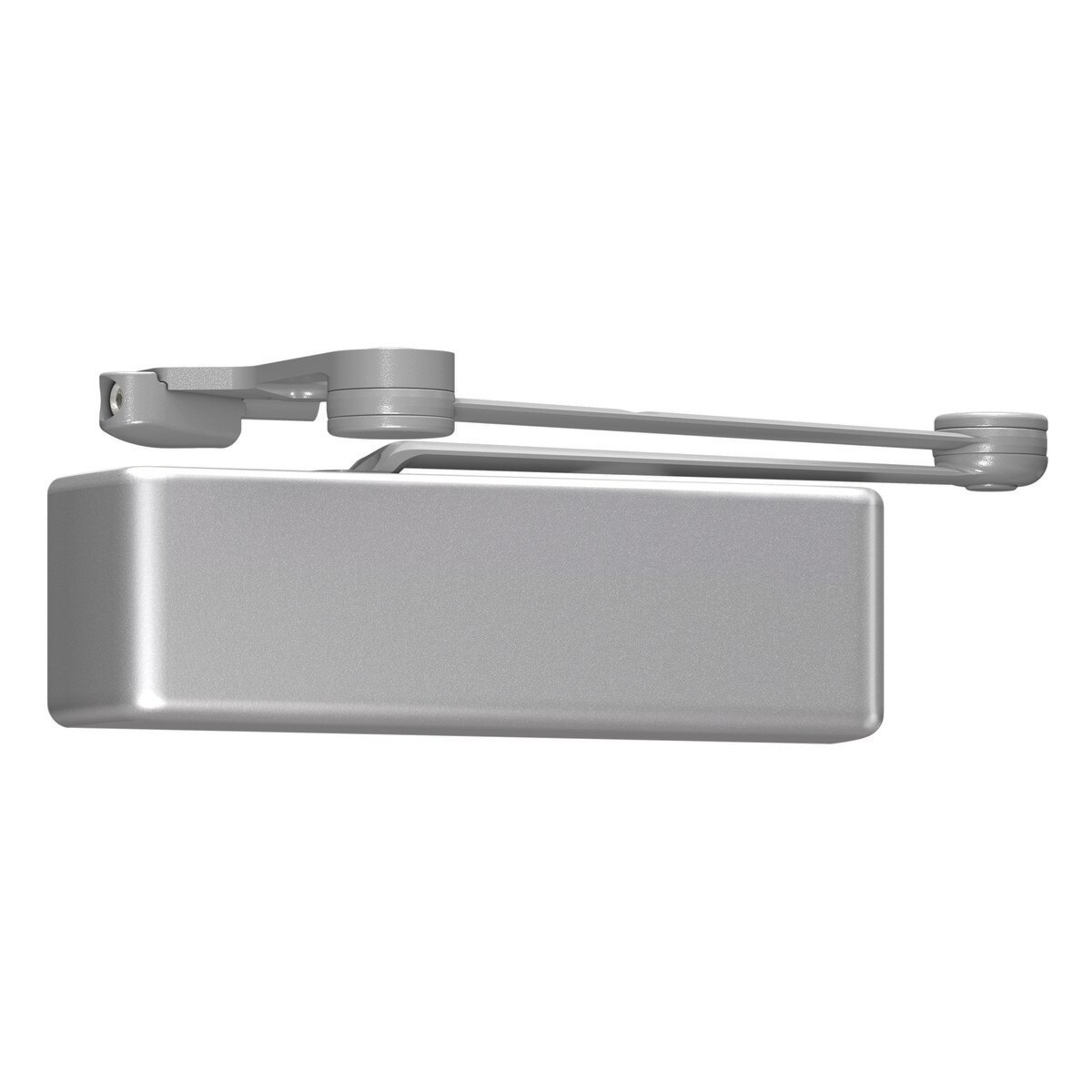

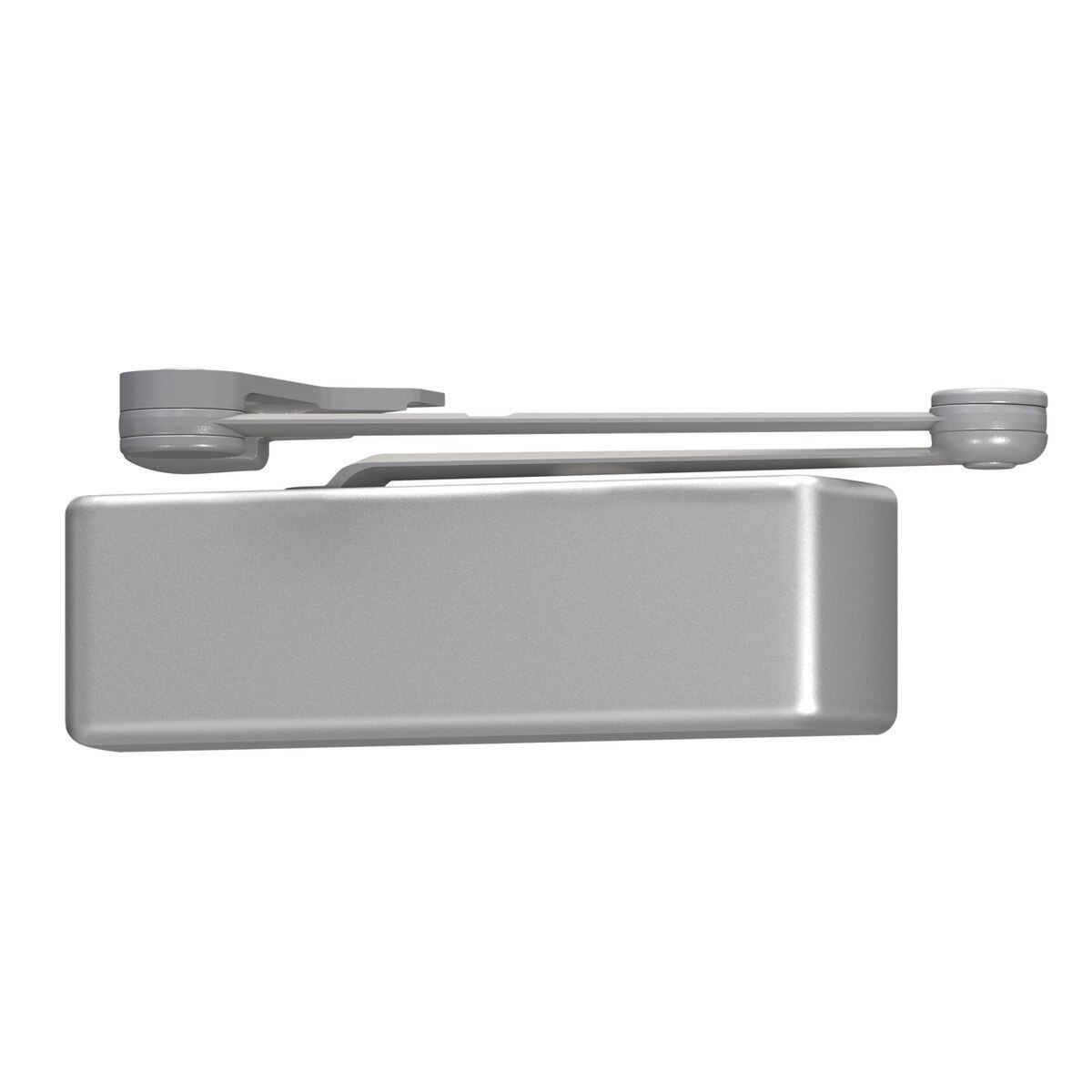

4040XP Series Closer
The 4040XP Series is LCN’s most popular door closer—and for good reason. This durable non-handed, surface-mounted heavy-duty closer, is designed for the most demanding high-use-and-abuse applications as well as for easy installation and maintenance
FEATURES
- Arm Type: 4050A-3077SCNS Spring Cush-n-Stop Arm (SCUSH)
- Finish: 689 - Aluminum Painted
- Handing: Non-Handed
- Mounting: Spring CUSH
- Size: Adjustable spring size 1-6 (Includes LCN Green Dial)
- Cover: Plastic, standard
- Patented positive stop
- Patented regulation valve indicators
- Independent speed adjustments
- QR code for instructions and support
- Cast iron body
- Full complement bearing
- 1 1 ⁄2" diameter piston
- Double heat treated pinion journal
- All weather liquid X fluid
- Peel-n-Stick templates - 2-1/4" x 5" mounting hole pattern
CUT SHEETS
LCN 4000 Series Surface Mounted Closers Catalog
TEMPLATES
Interactive Installation Instructions
Pull, Top Jamb, and PA Mount Installation Instructions
EDA Mount Installation Instructions
CUSH/SCUSH Arm Mount Installation Instructions
Drop Plate Installation Instructions
CERTIFICATIONS
- Meets ADA requirements
- Meets BAA - Buy American Act
- UL and cUL listed for self-closing doors without hold-open
- Tested and certified under ANSI/BHMA A156.4 Grade 1
