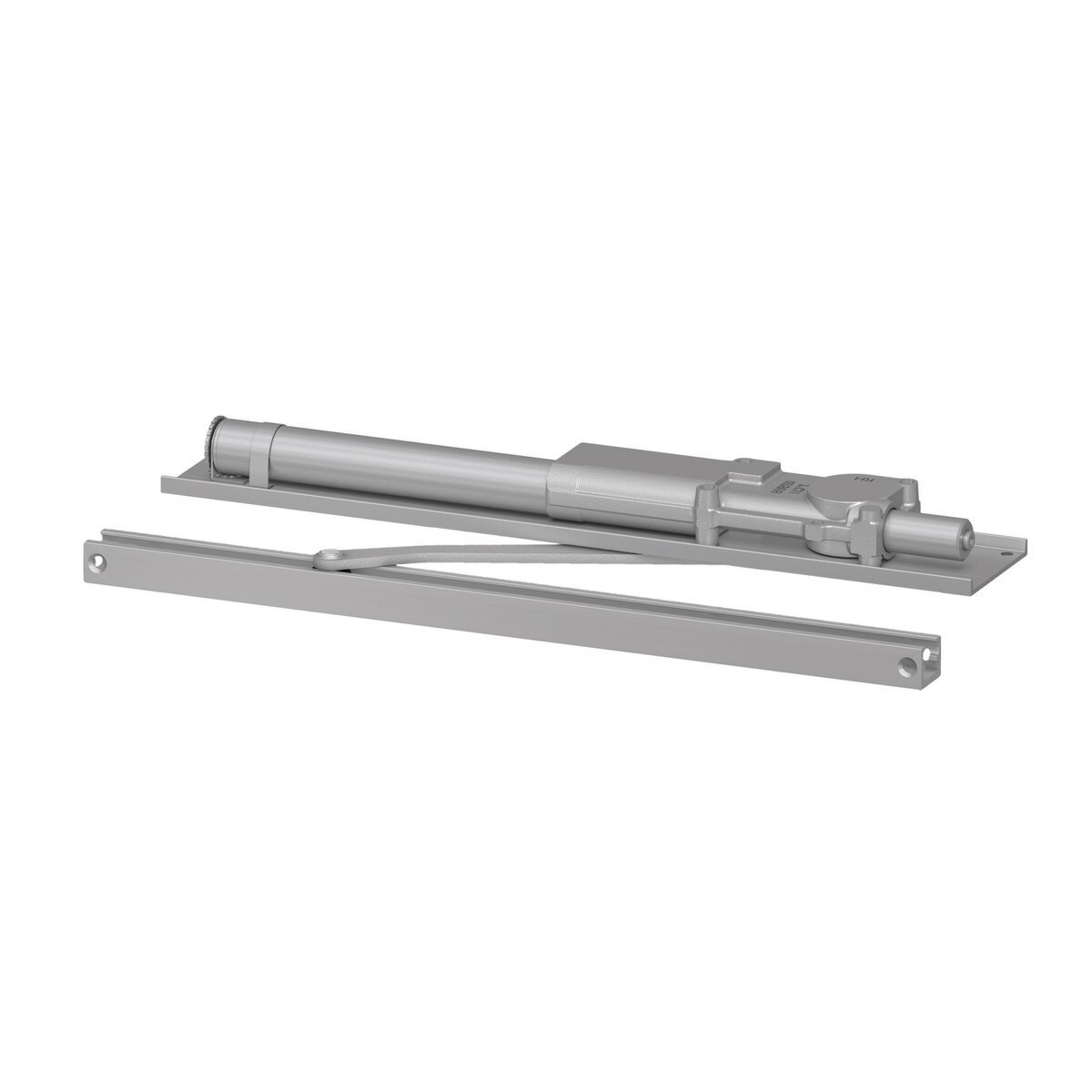

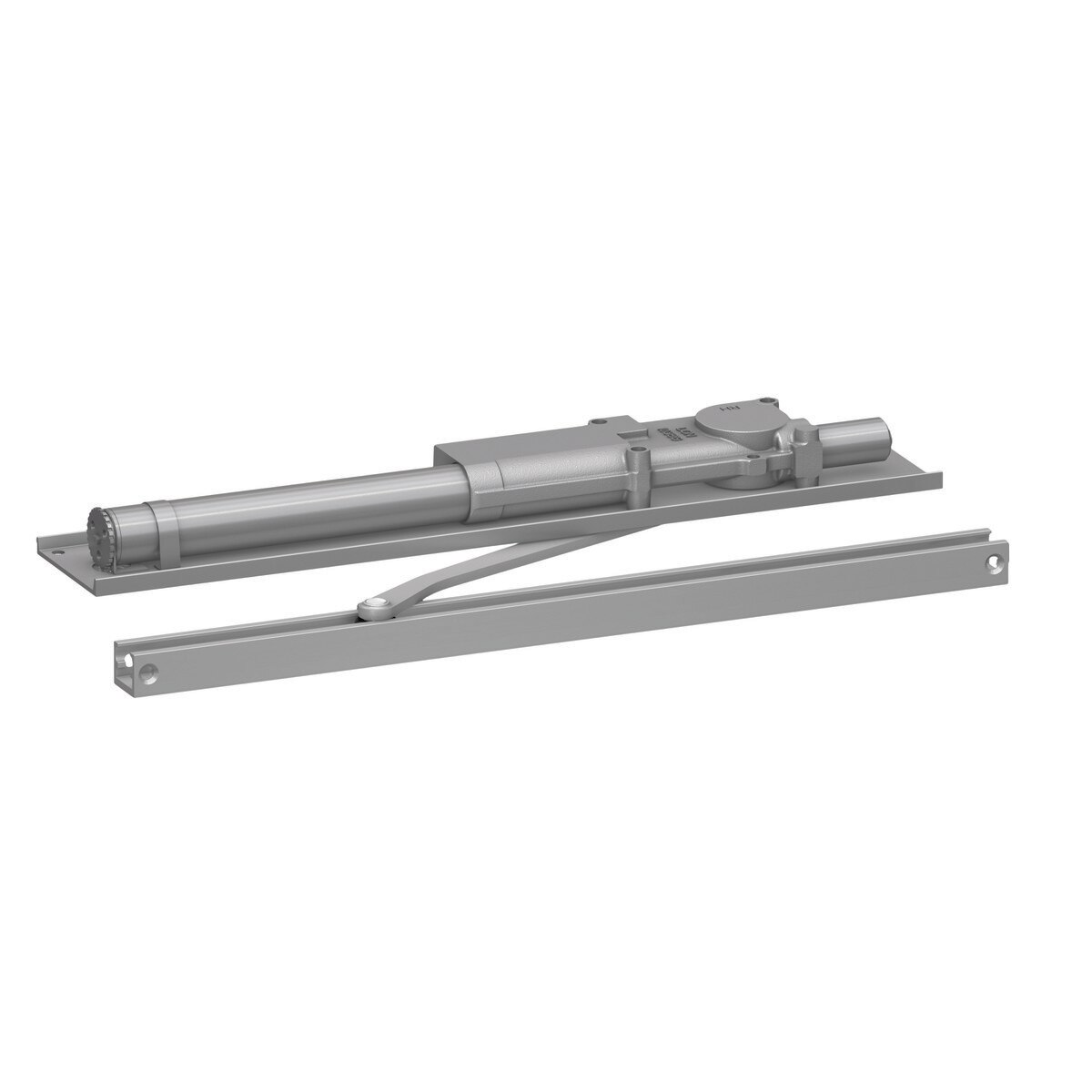

2030 Series PACER® Concealed Closer
The concealed 2030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1 3⁄4" aluminum transom. The forged steel single lever arm and roller assembly provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The choice of finishes and track functions meet virtually all architectural requirements.
FEATURES
- Size: Sized 1-5
- Body Material: Cast Iron
- Bearing: Full Complement
- Pinion Journal: Double Heat Treated
- Fluid: All Weather Fluid
- Mounting: Concealed In Tube; aluminum frame requires minimum 1-3/4" (44 mm) x 4" (102 mm) tube
- Fasteners: Wood and Machine Screws (WMS) unless specified otherwise
- Spring power and latch speed adjustments are independent for either swing
- Backcheck and general speed adjustments are common for both swings
DIMENSIONS
- Piston Diameter: 1 1/8"
- Pinion Journal Diameter: 11/16"
- Top Rail Mortise: 1 3⁄8" (35 mm) required
- Top Rail Mortise with Fire Shield: 1 13/32" (36 mm) required
- Top of Door Cutout: 5⁄16" (8 mm) required at top of the door, stop face only
Resources
CUT SHEETS
TEMPLATES
LCN Closers and Auto Operators Templates and Instructions Index
CERTIFICATIONS
- Meets ADA requirements for model 2031 only.
- UL and cUL listed for self-closing doors without hold-open
- Tested and certified under ANSI/BHMA A156.4 Grade 1
Options
| Size 1 - Model #2031 | Meets ADA requirements For Interior doors widths up to 28" |
| Size 2 - Model #2032 | For Interior doors widths ranging from 28" to 34" |
| Size 3 - Model #2033 | For Exterior doors widths ranging from 28" to 30" For Interior doors widths ranging from 34" to 38" |
| Size 4 - Model #2034 | For Exterior doors widths ranging from 30" to 36" For Interior doors widths ranging from 38" to 48" |
| Size 5 - Model #2035 | For Exterior doors widths ranging from 36" to 42" For Interior doors widths ranging from 48" to 54" |
| Standard Track (STDTRK) | Non hold-open |
| Standard Track with Bumper (BUMP) | Track assembly includes 2030-169 Track Bumper Non hold-open Bumper mounts in track to assist back check, does not replace auxiliary stop, limits maximum opening |
| Hold Open Track (H) | Track assembly includes 2030-3054 Hold-Open Clip and 2030-3034H Hold-Open Track Roller Hold-open point controlled by clip location, mounts in track to provide hold-open function Quiet, low friction roller assembly Shoulder dimension of roller: 1/16" (2 mm) |
| Hold Open Track with Bumper (HBMP) | Track assembly includes 2030-3054 Hold-Open Clip, 2030-3034H Hold-Open Track Roller, and 2030-169 Track Bumper Hold-open point controlled by clip location, mounts in track to provide hold-open function Quiet, low friction roller assembly Shoulder dimension of roller: 1/16" (2 mm) Bumper mounts in track to assist back check, does not replace auxiliary stop, limits maximum opening |
| 616/US11 | Satin Bronze, Blackened, Satin Relieved, Plated |
| 622/US19 | Flat Black Powder Coated |
| 632/US3 | Bright Brass Plated |
| 633/US4 | Satin Brass Plated |
| 639/US10 | Satin Bronze Plated |
| 646/US15 | Satin Nickel Plated |
| 651/US26 | Bright Chrome Plated |
| 652/US26D | Satin Chrome Plated |
| 689 | Aluminum Powder Coated |
| 690 | Statuary Bronze Powder Coated |
| 691 | Light Bronze Powder Coated |
| 693 | Gloss Black Powder Coated |
| 695 | Dark Bronze Powder Coated |
| 696 | Brass Powder Coated |
| SRI | Special Rust Inhibitor for Powder Coat Finishes |
| WMS | Wood and Machine Screws |
| HWMS | Hold Open Wood and Machine Screws |
| TORX | Torx Machine Screws |
| HTORX | Hold Open Torx Machine Screws |
