LN-1461-RW-PA-689

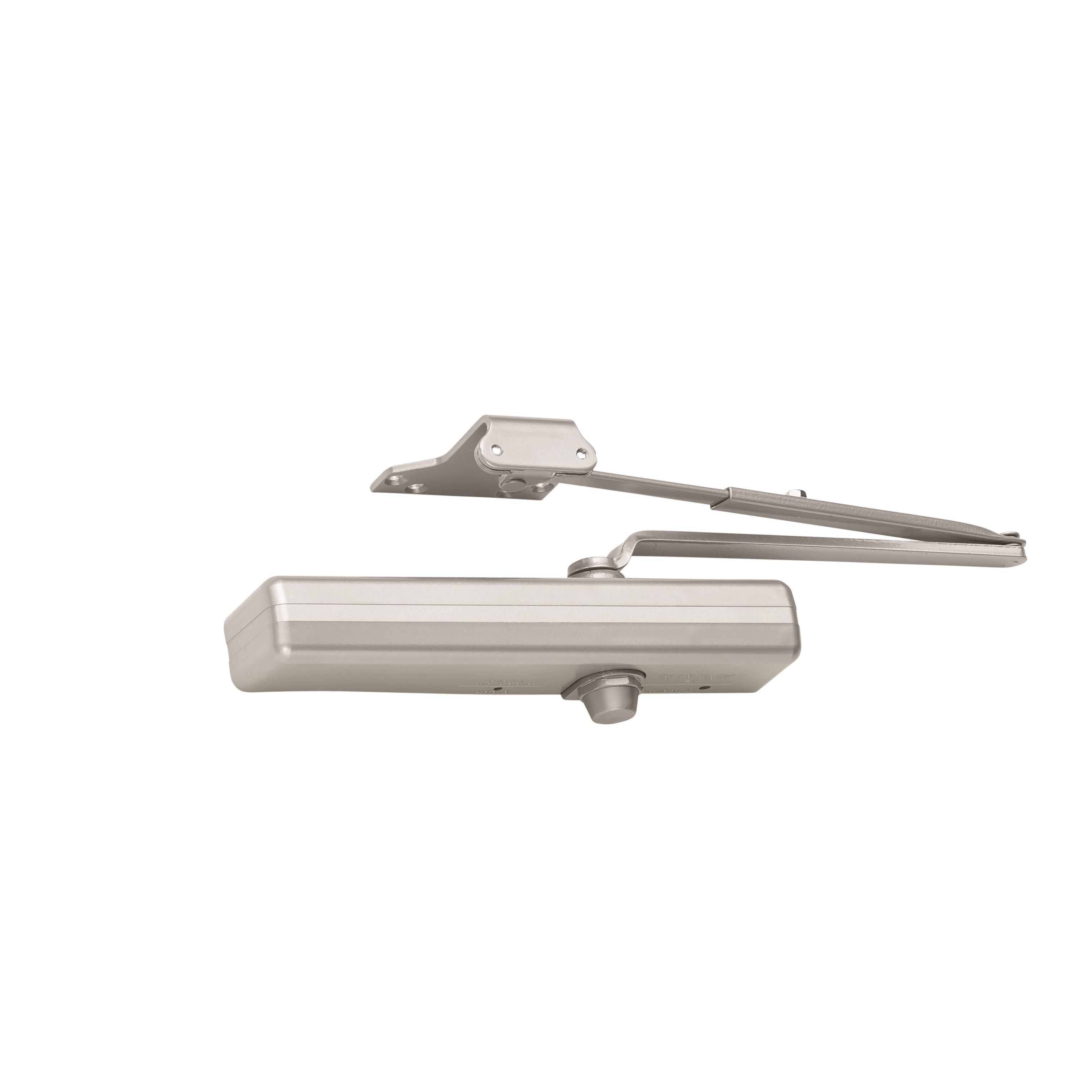

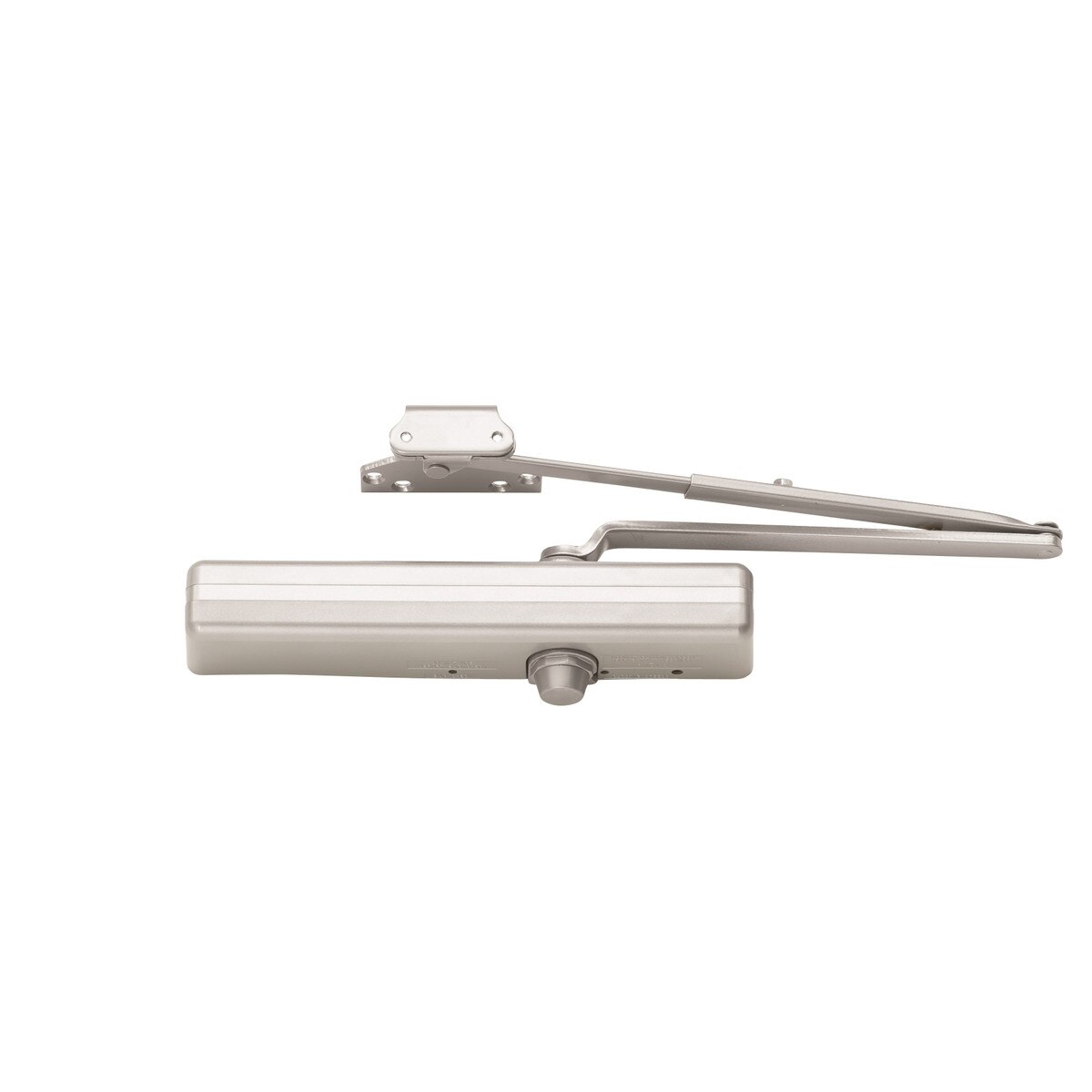

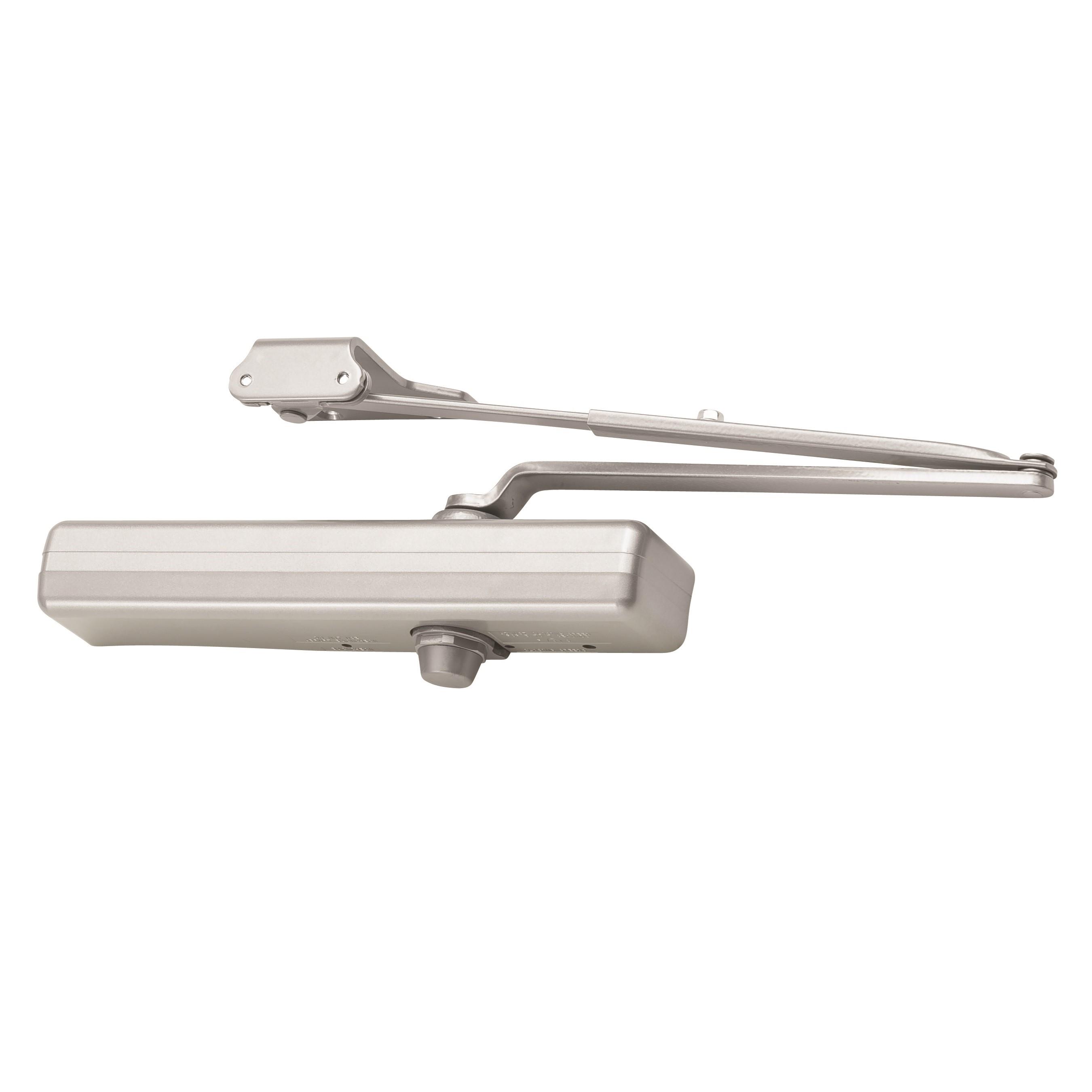

1460 Series Closer
Designed for maximum versatility, the 1460 Series closers, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and fast and accurate installation.
FEATURES
- Size: Adjustable Spring Size 1-6 (Includes patented Green Dial)
- Body Material: Cast Iron
- Cover: Slim Line Plastic Cover (SLIMPC) Standard, unless specified otherwise
- Bearing: Full Complement
- Pinion Journal: Single Heat Treated
- Fluid: All Weather Fluid
- Templating: Peel-n-Stick Template
- Mounting: Depending on arm selection, Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
- Fasteners: Self Reaming and Tapping Screws (SRT) Standard, unless specified otherwise
DIMENSIONS
- Exterior Door Width: 24" to 48"
- Interior Door Width: 24" to 60"
- Piston Diameter: 1 1/4"
- Pinion Journal Diameter: 3/4"
- Mounting Hole Pattern: 1" x 7 1/2"
CUT SHEETS
LCN 1000 Series Surface Mounted Closers Catalog
TEMPLATES
LCN Closers and Auto Operators Templates and Instructions Index
CERTIFICATIONS
- Meets ADA requirements
- UL and cUL listed for self-closing doors without hold-open
- Tested and certified under ANSI/BHMA A156.4 Grade 1
CYLINDER OPTIONS
| Cast Iron Cylinder Assembly (CYL) | Standard Cylinder Assembly |
| Delay Action Cylinder (CYLDEL) | Cylinder used for delayed action closing |
ARM TYPE OPTIONS
| Regular Arm (REGARM) | Mounts Hinge Side (Pull Side) and Top Jamb (Push Side) |
| Regular Arm/62PA Parallel Arm Bracket (RWPA) | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe, 1460-62PA required for parallel arm mounting |
| Regular Arm/62A Auxiliary Shoe (RW62A) | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Requires a top rail of 7 1⁄8" (181mm) Includes auxillary shoe, 1460-62A, for parallel arm mounting of regular arm with overhead holder/stop |
| Long Arm (LONG) | Includes long rod and shoe, 1460-79LR, for top jamb mount with deep reveals |
| Hold Open Arm (H) | Provides hold open function adjustable at shoe Mounts Hinge Side (Pull Side) and Top Jamb (Push Side) |
| Hold Open Arm/62PA Parallel Arm Bracket (HWPA) | Provides hold open function adjustable at shoe Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe, 1460-62PA, required for parallel arm mounting |
| Hold Open Long Arm (HLONG) | Provides hold open function adjustable at shoe Includes long head and tube, 1450-3048L, for top jamb mount with deep reveals |
| Heavy Duty Arm (HD) | Mounts Hinge Side (Pull Side) and Top Jamb (Push Side) Features solid forged steel main and forearm for potentially abusive installations |
| Heavy Duty Arm (HDPA) | Mounts Hinge Side (Pull Side) and Top Jamb (Push Side) Features solid forged steel main and forearm for potentially abusive installations Includes PA shoe, 1460-62PA, required for parallel arm mounting |
| Heavy Duty Long Arm (HDLONG) |
