LN-1250-RW-PA-COV-695

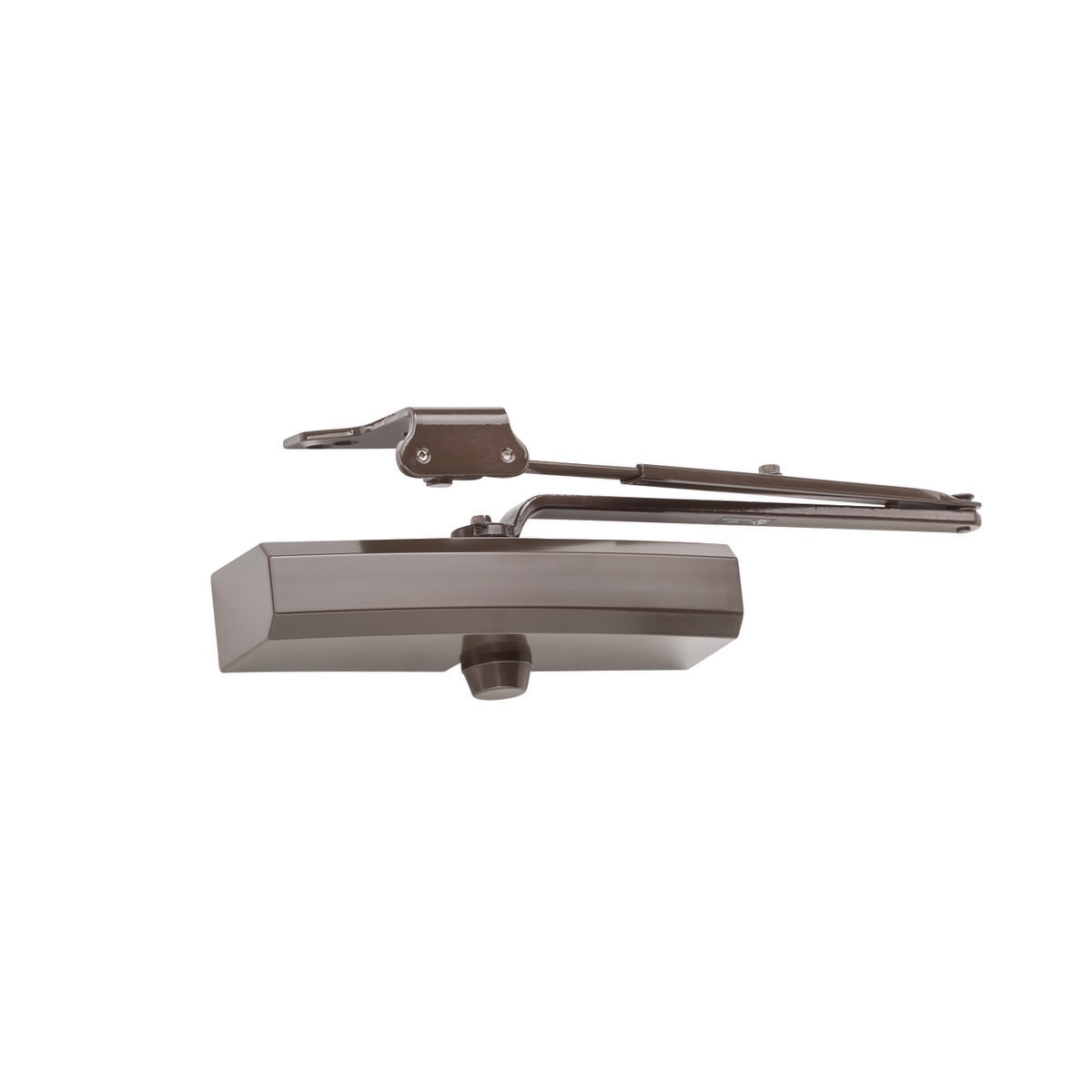

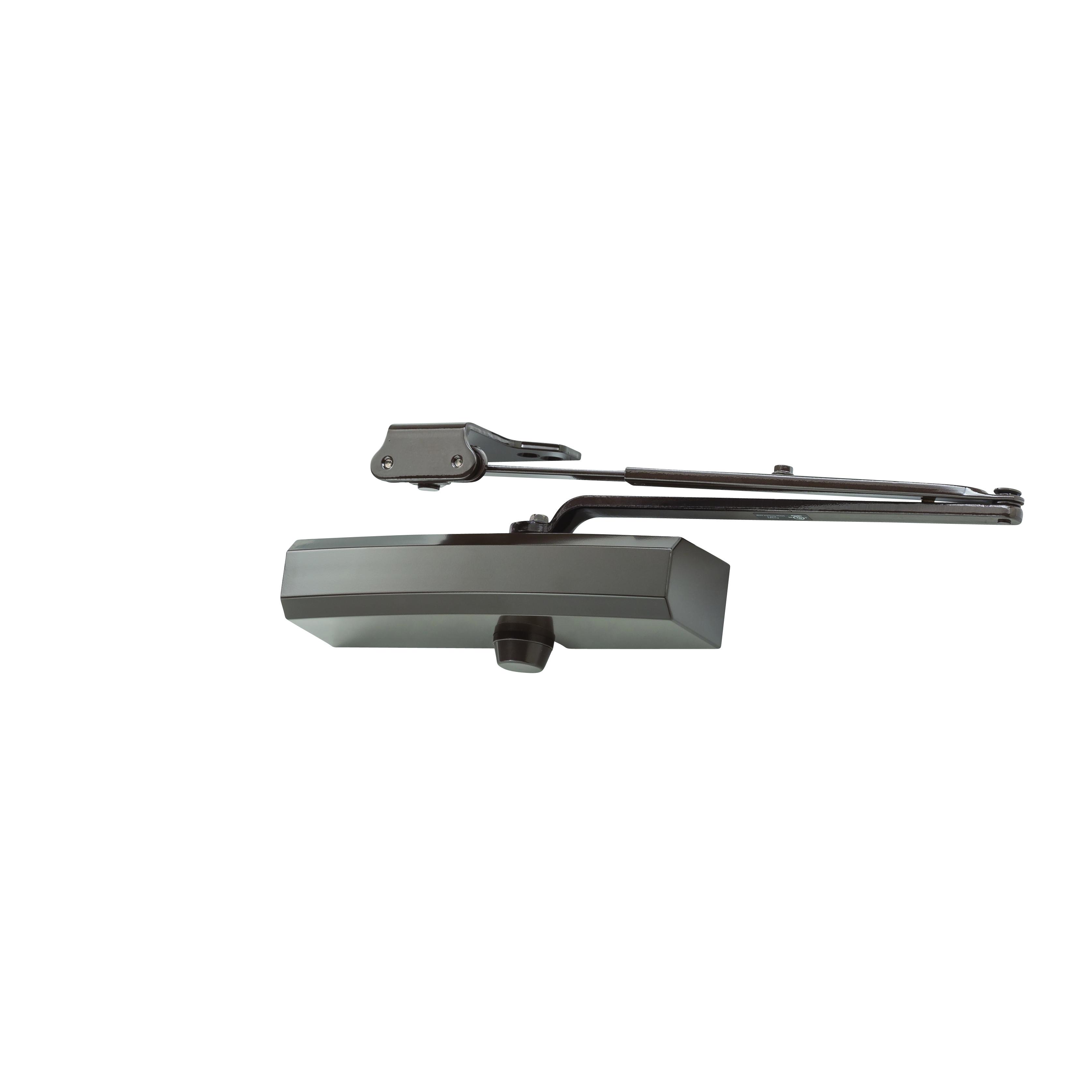

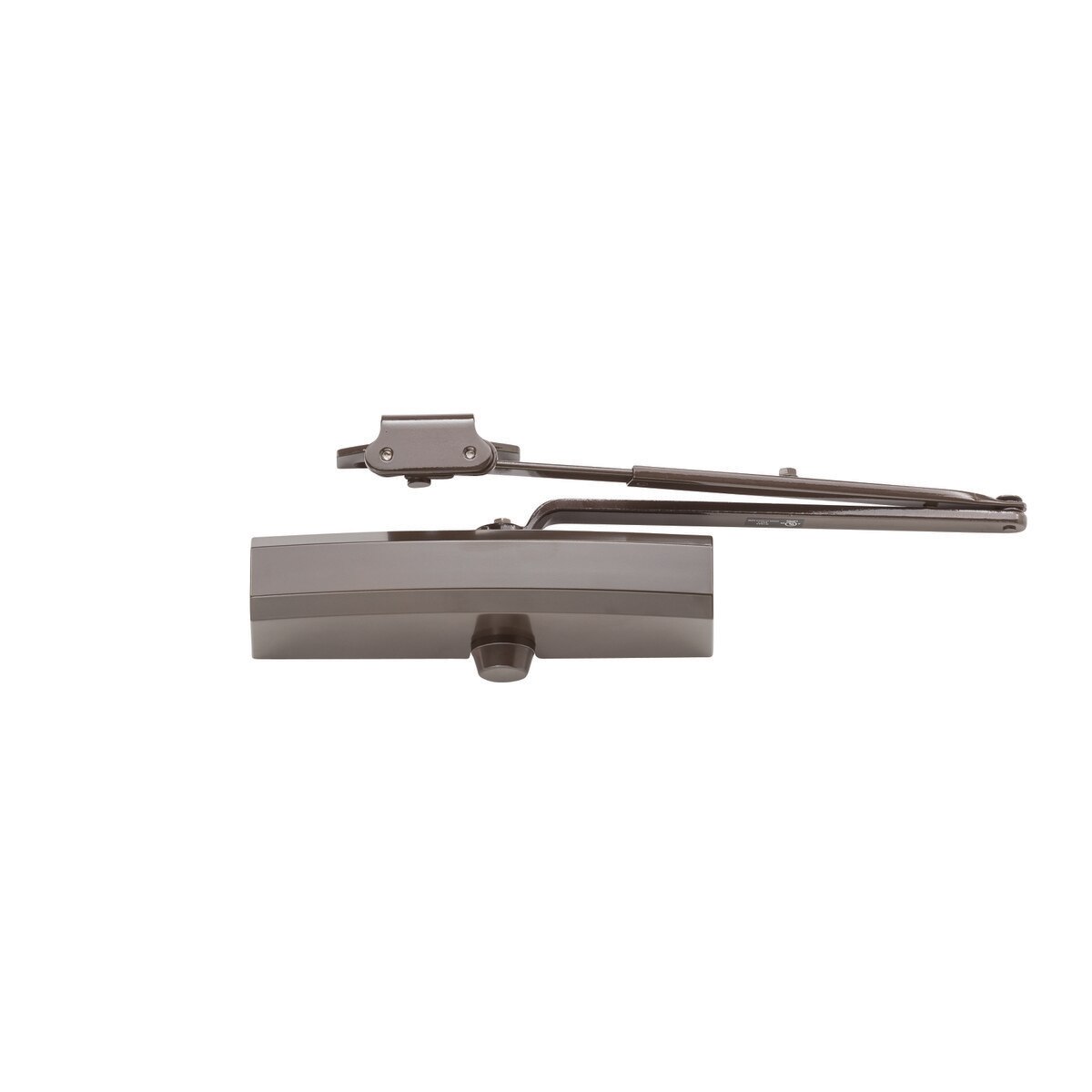

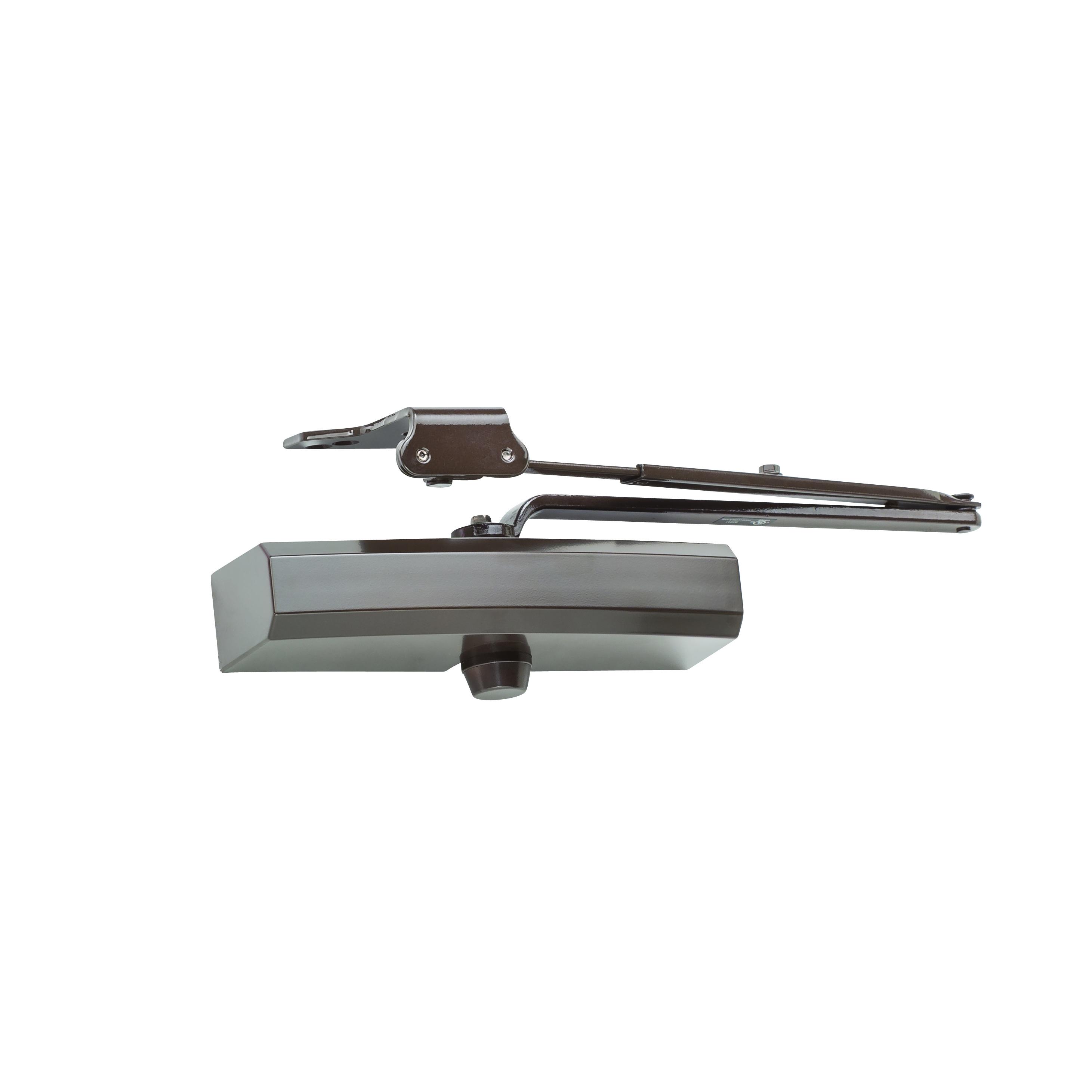

1250 Series RWPA Closer
Designed for low-frequency and low-abusive traffic areas, the 1250 Series is ideal for aluminum storefronts, interior offices and other applications. The closer features dependable operation, low maintenance and an optional slim line cover. Also, with the most common hole pattern in the industry, the 1250 Series is primed for easy aftermarket replacement.
FEATURES
- Arm Type: 1250-3077 Regular Arm with Parallel Arm Bracket (RWPA)
- Finish: 695 - Dark Bronze Powder Coated
- Handing: Non-Handed
- Size: Adjustable spring size 1-5
- Cover: Slim line plastic cover (SLIMPC)
- Includes 62PA Parallel Arm Shoe
- Cast aluminum body
- Full complement bearing
- 1 3⁄8" diameter piston
- 5⁄8" diameter single heat treated pinion journal
- All weather fluid
- Peel-n-Stick templates - 3⁄4" x 9 1 ⁄16" mounting hole pattern
- Universal screw pack (UNIV)
- Tripack includes regular, top jamb, and parallel arm (RWPA)
CUT SHEETS
LCN 1000 Series Surface Mounted Closers Catalog
TEMPLATES
Pull, Top Jamb, PA Mount Installation Instructions
EDA and HEDA Mount Installation Instructions
CUSH and SCUSH Mount Installation Instructions
Drop Plate Installation Instructions
419 Flush Adapter Installation Instructions
CERTIFICATIONS
- Meets ADA requirements
- UL and cUL listed
- Meets BAA (Buy American Act)
- Tested and certified under ANSI/BHMA A156.4 Grade 1
