IM-S800SVR-TBAR-AL, Sentinel Hardware

SKU: IM-S800SVR-TBAR-AL
List Price: $550.00
Your Price: $412.50
Manufacturer: Sentinel Hardware
Description: S800SVRTBARAL WIDE STILE SURFACE VERT ROD T-BAR AL 36"X84" (HOLLOW METAL DOORS)
Category: Surface Vertical Rod
Finish Code: Alum

In Stock

Available: 8

Sentinel Product

Back

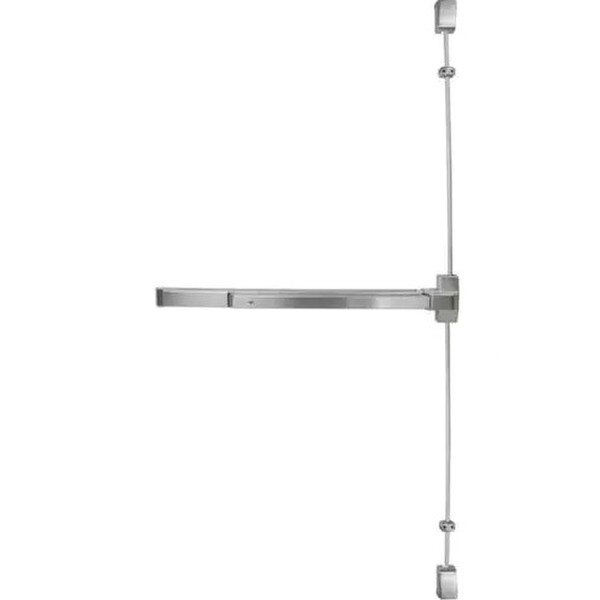

S800SVR-TBAR Series Surface Vertical Rod Exit Device


Sentinel's S800SVR-TBAR Surface Vertical Rod exit device is the perfect choice for double door applications without mullions. Reversible for right or left hand doors. They’re ideal for new constructions or renovations.

FEATURES


  • Handing: Non-Handed, field reversible
  • Finish: Available in Anodized Aluminum (AL), Dark Bronze Duranodic (DU) and Stainless Steel (32D).
  • Body Material: Extruded anodized aluminum
  • Device Type: Surface vertical Rod (SVR)
  • Dogging: 1/2 turn Hex Key dogging
  • Latch Bolt: Pullman style top latch and bottom bolt assembly

DIMENSIONS


  • Device Size: 3' Device standard, for 2'-4" to 3'-0" Doors. 4' Device for 3'-0" to 4'-0" Doors available
  • Maximum Door Height: 7'-0"
  • Door Thickness: 1-3/4" Standard
  • Stile: 4 1/4" minimum on glass doors
  • Projection: 2 1/2"
Back

CUT SHEETS


Sentinel Exit Devices Catalog

TEMPLATES


Sentinel 800SVR Touch Bar Installation Instructions and Template
