8800 Series Rim Exit Device

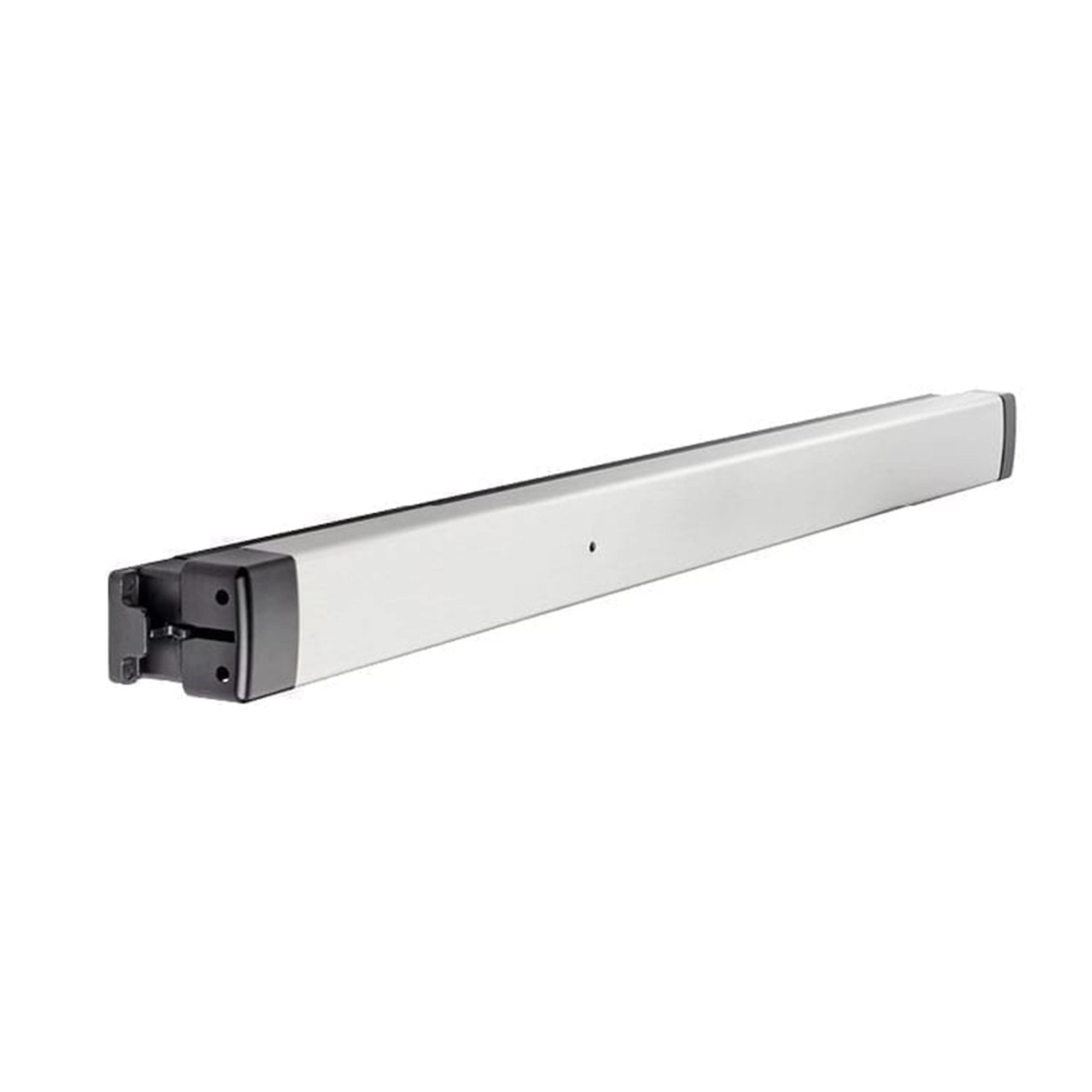

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminium, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.
OPERATION
Starwheel Bolt:
1. When door closes, the interlocking noseguard and Starwheel bolt close around the strike. The deadlocking slide springs over, locking the Starwheel bolt to the strike.

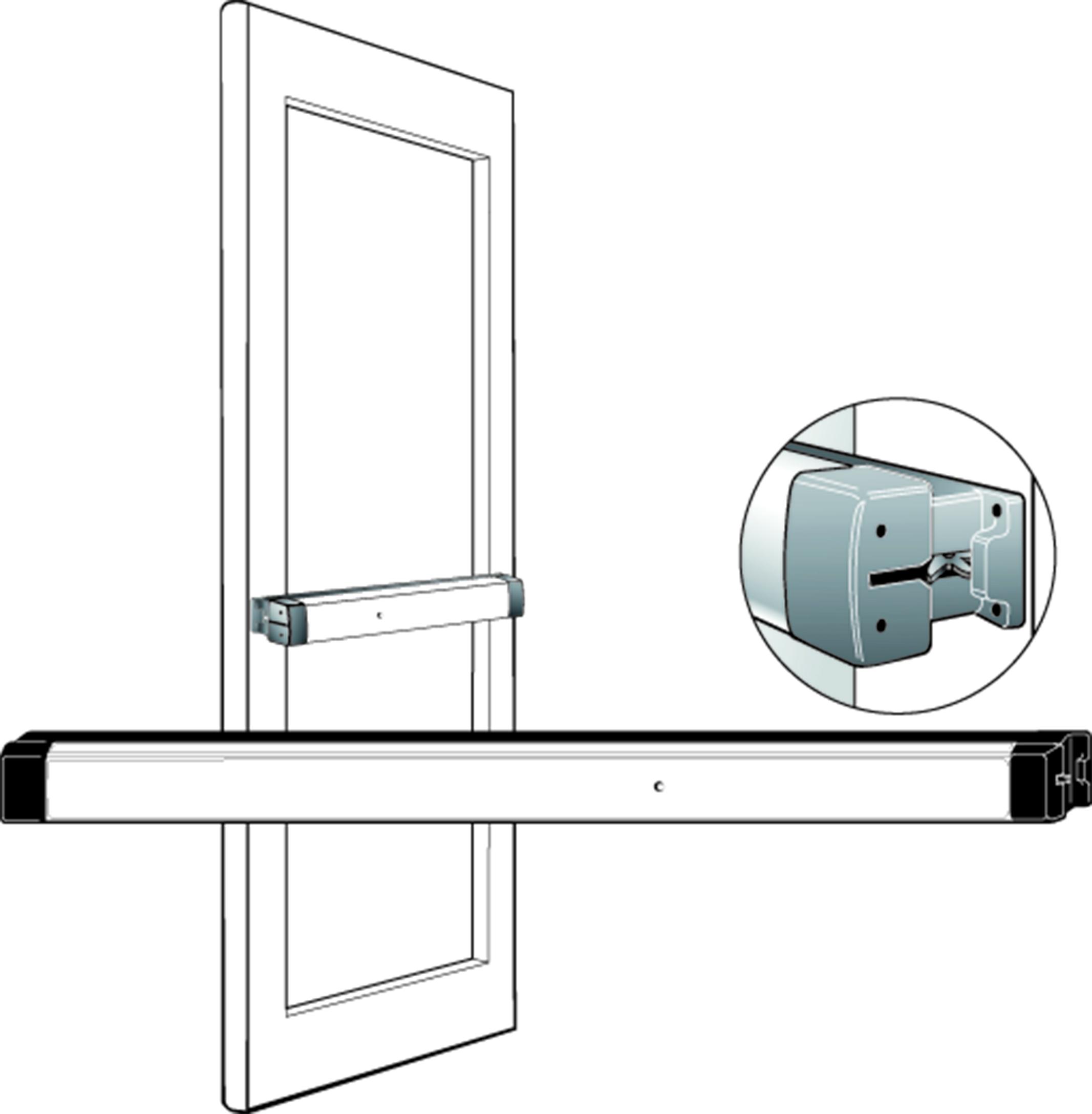

2. When push bar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading (see drawing in attached catalog page download)
CUTSHEETS
TEMPLATES
8800 Installation Instructions
8066 Entry Function for 8800 Rim Exit Aluminum Door Prep
3081, 3082, 3083 Entry Trim for 8800 Rim Exit Aluminum Door Prep
8800 Rim Exit Device Rim Cylinder Preparation
8800 Rim Exit Device Standard & Centerhung Strike Preparations
8800 Rim Exit Device for Aluminum Stile Doors
CERTIFICATIONS
- UL 305 Panic Hardware
- ANSI/BHMA A156.3, Grade 1
