AB-PT1000-DURO

(0)No Reviews yet

Details
Resources

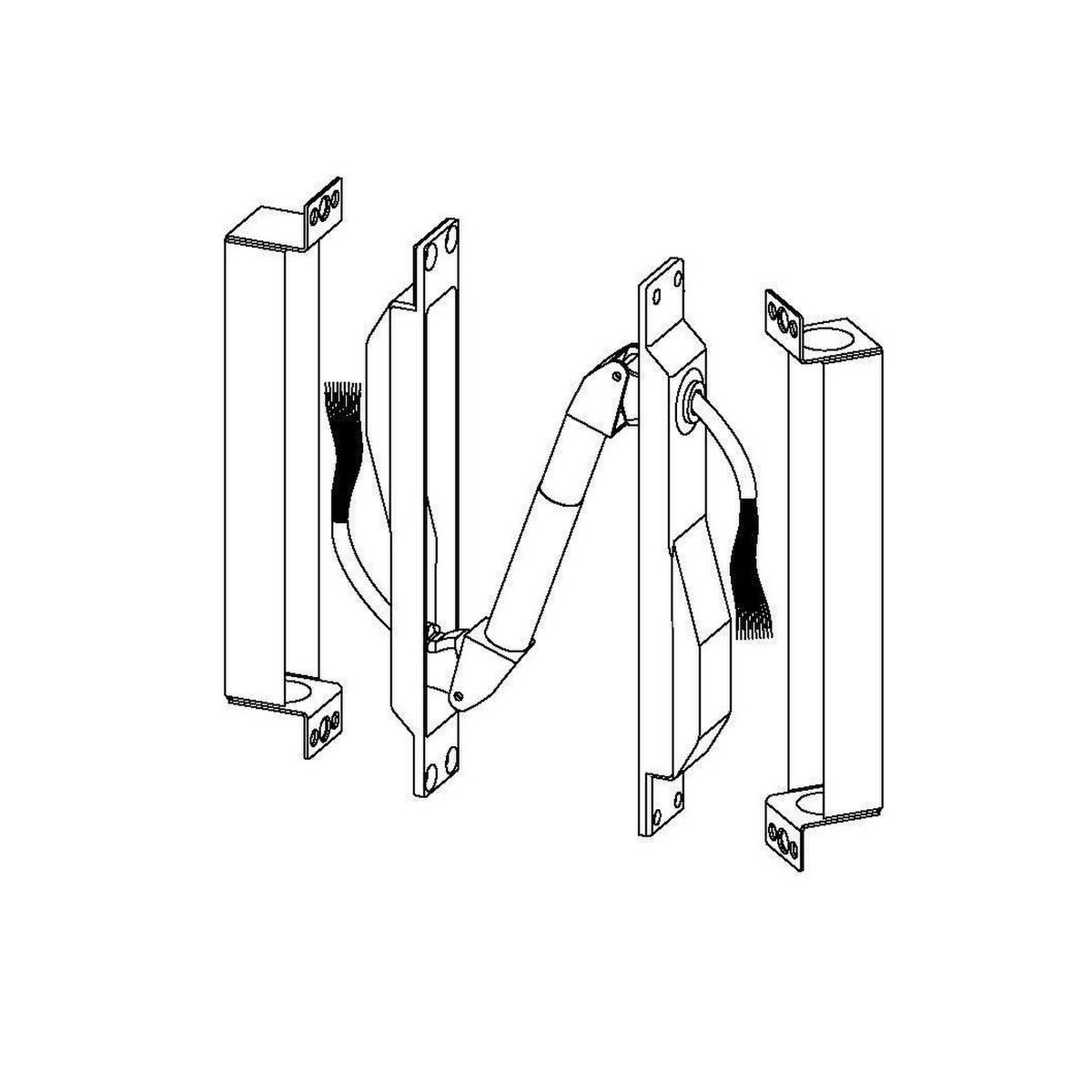

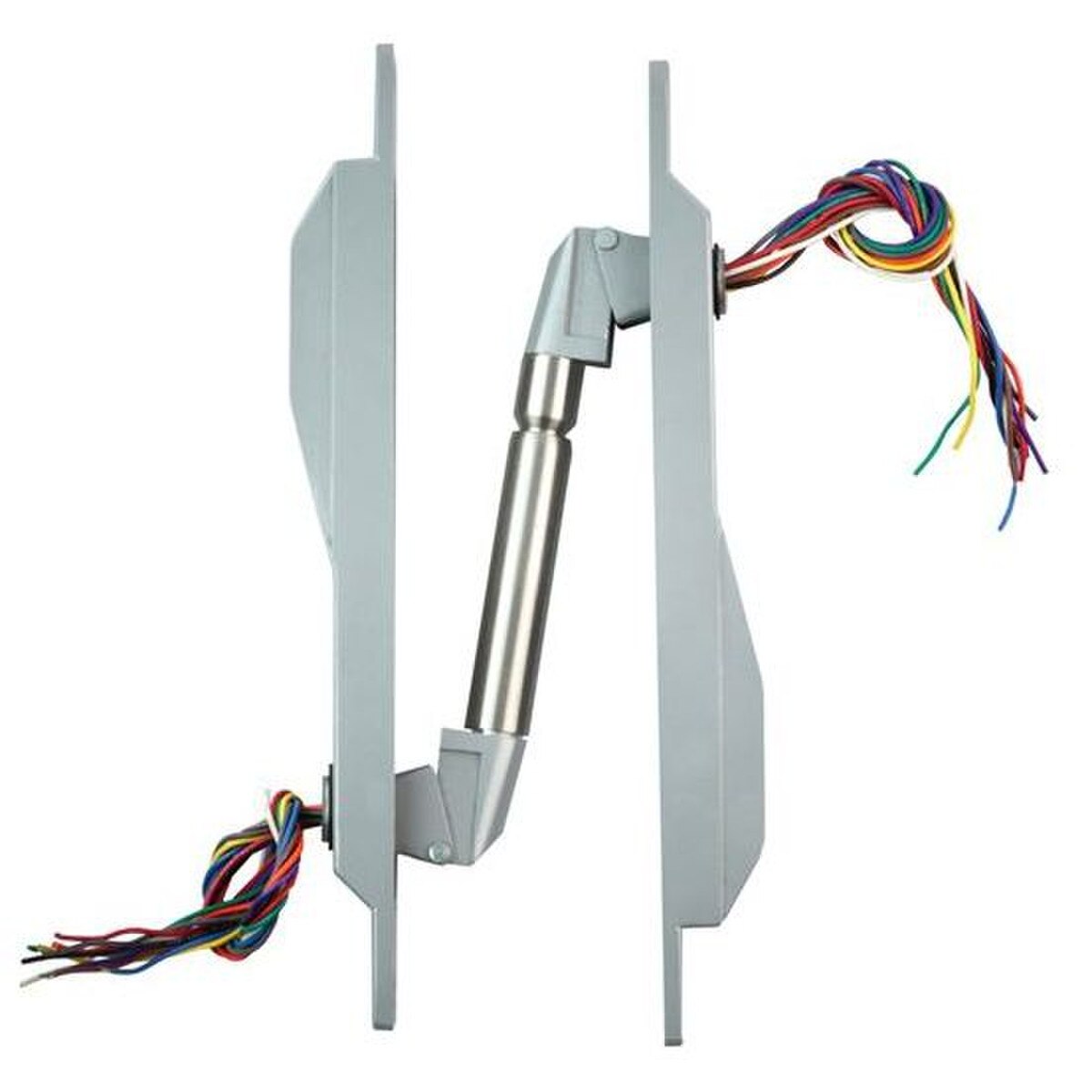

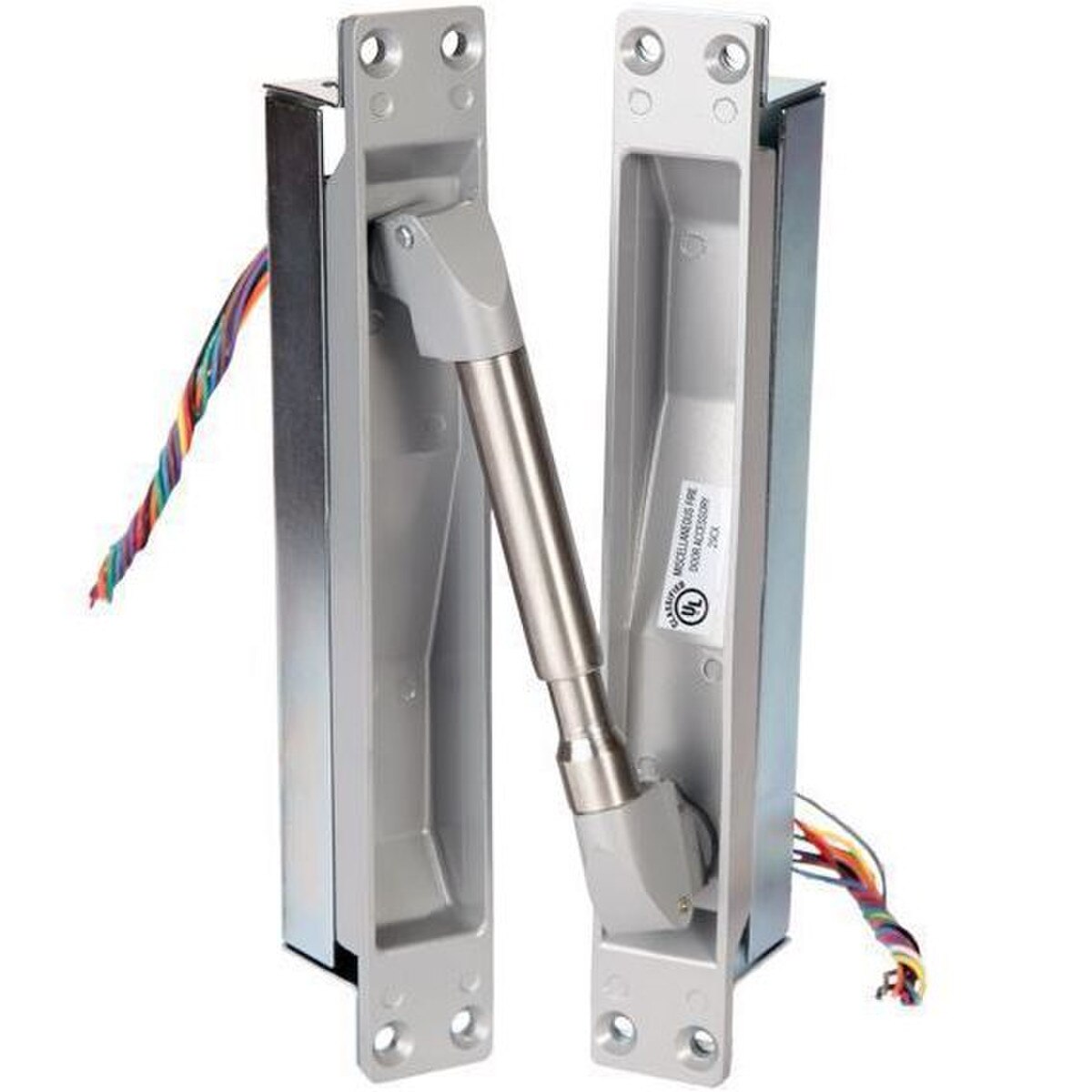

PT1000 Power Transfer

ABH Manufacturing's PT1000 provides the means of transferring electrical power & data from the frame to the door in a secure and discreet manner. Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.

FEATURES

Type: (10) 24 AWG Wires
Max. Rating: 24 VDC, 1A
Finish: S5 - Painted Dark Bronze (to match US10B)
All metal construction including backboxes - NO PLASTIC PARTS
Ideal for high abuse or heavy traffic situations
UL/ULC Listed for use on fire doors
Approximate shipping weight: 3 lbs.
