AR-8410-37142
Details

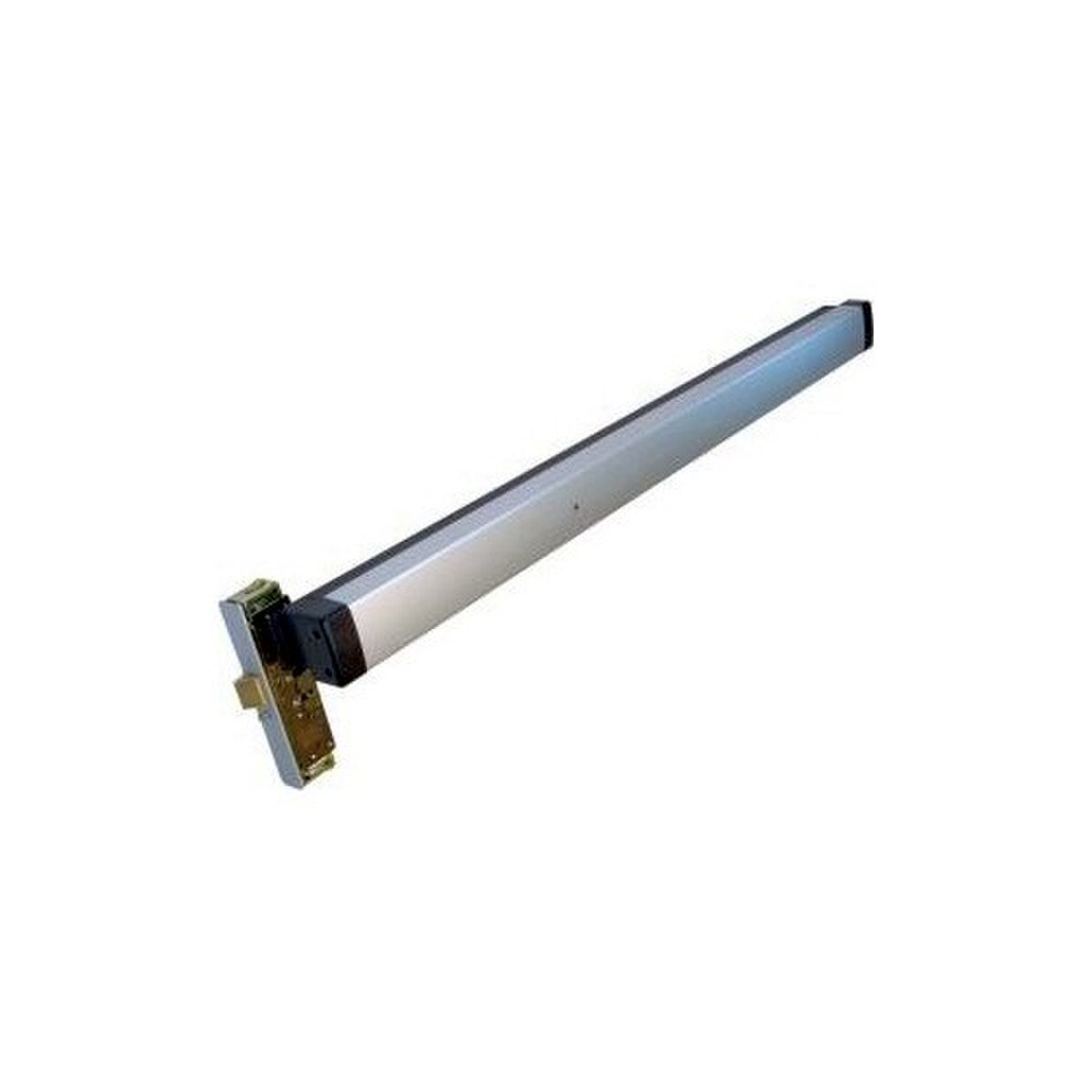

8400 Series Mortise Exit Devices

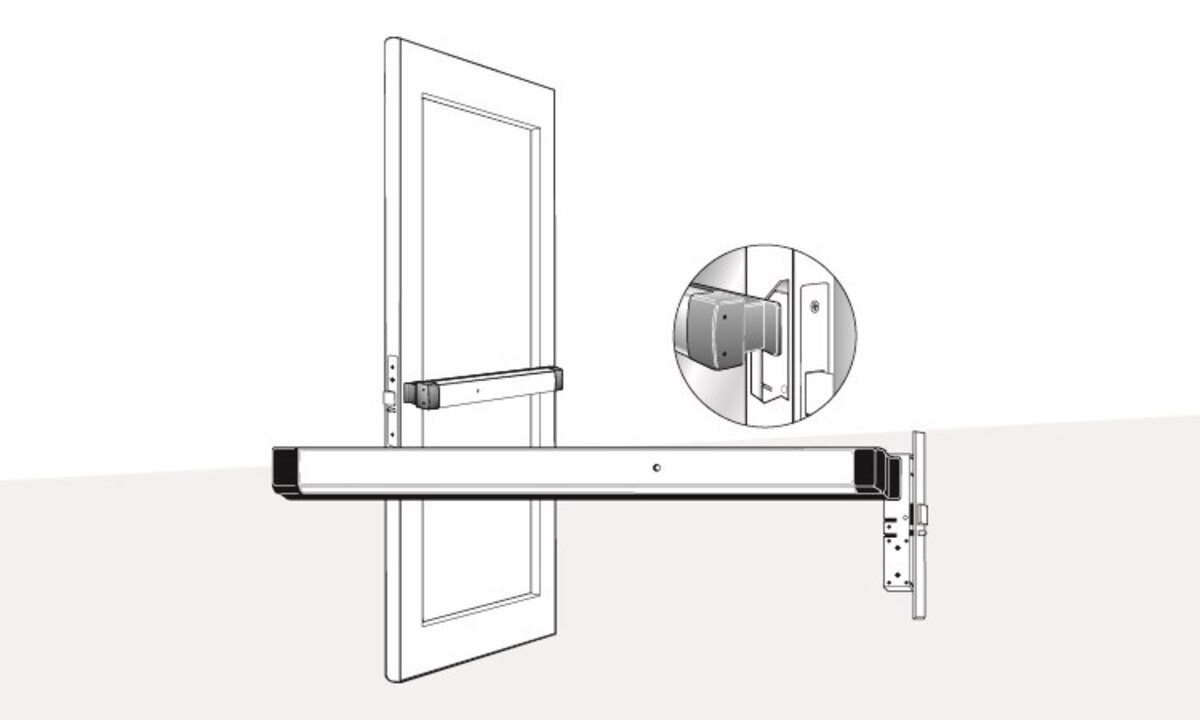

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum single door applications that require a life-safety exit device with mortise locking solution.
FEATURES
- Finish: 628 - Clear Anodized Aluminum
- Handing: Right-Hand Reverse
- Push Bar Length: 42" [1,066.8 mm]
- Standard width bars can be field cut to the next smallest opening width.
- Materials: Push bar made of extruded aluminum.
- Faceplate: Flat, bevel radius.
- Backset: 1-1/8" [28.6 mm]. Fits standard cutout used for the Adams Rite 4900 Heavy Duty Deadlatch on narrow stile aluminum doors.
- Door Thickness: Suits 1-3/4" [44.5 mm] standard.
- Stile Width: Minimum 2" [50.8 mm] stil
Resources
CUTSHEETS
TEMPLATES
Installation Instructions & Templates
CERTIFICATIONS
- UL 305 Panic Hardware
- ANSI/BHMA A156.3, Grade 1
