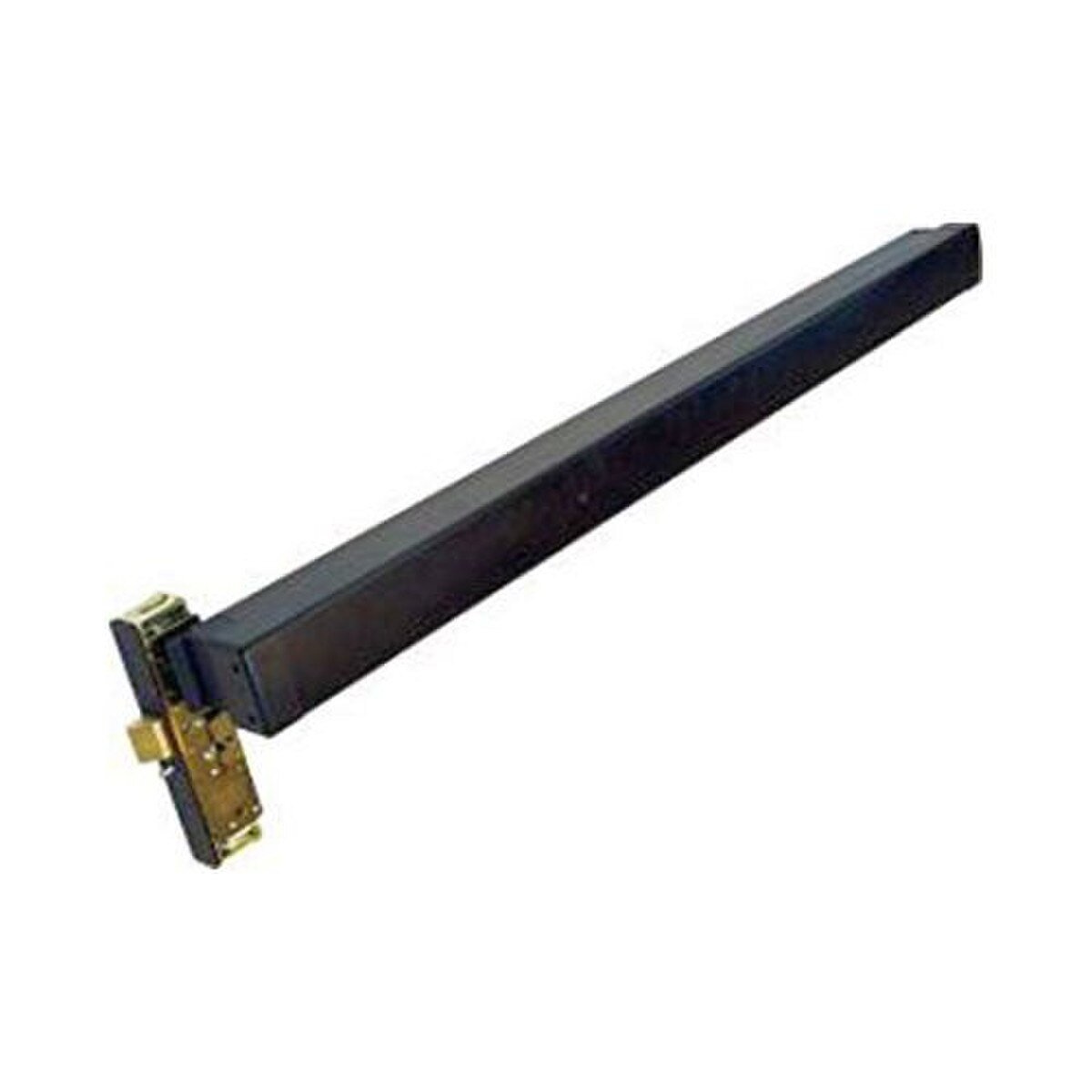

AR-8420-37236, Adams Rite

8400 Series Mortise Exit Devices

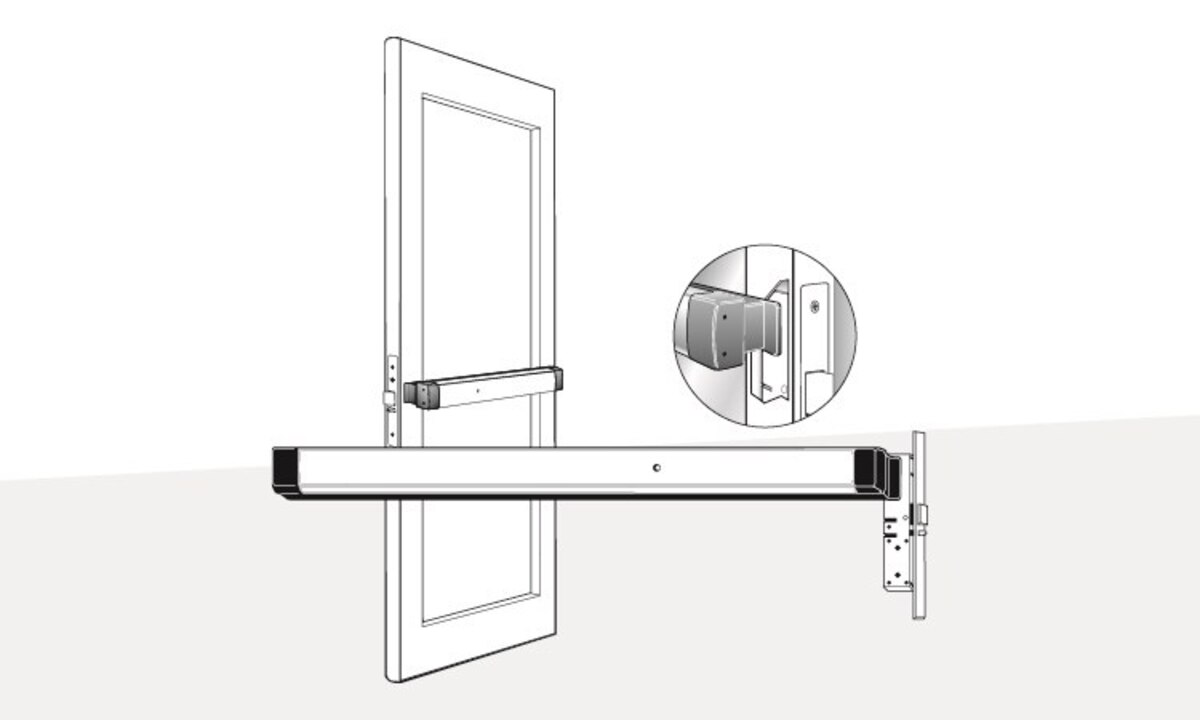

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum single door applications that require a life-safety exit device with mortise locking solution.

FEATURES

• Finish: 313 - Dark Bronze Anodized
• Handing: Right-Hand Reverse
• Push Bar Length: 36" [914.4 mm]
• Standard width bars can be field cut to the next smallest opening width.
• Materials: Push bar made of extruded aluminum.
• Faceplate: Flat, bevel radius.
• Backset: 1-1/8" [28.6 mm]. Fits standard cutout used for the Adams Rite 4900 Heavy Duty Deadlatch on narrow stile aluminum doors.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard.
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging
