AR-7431-121

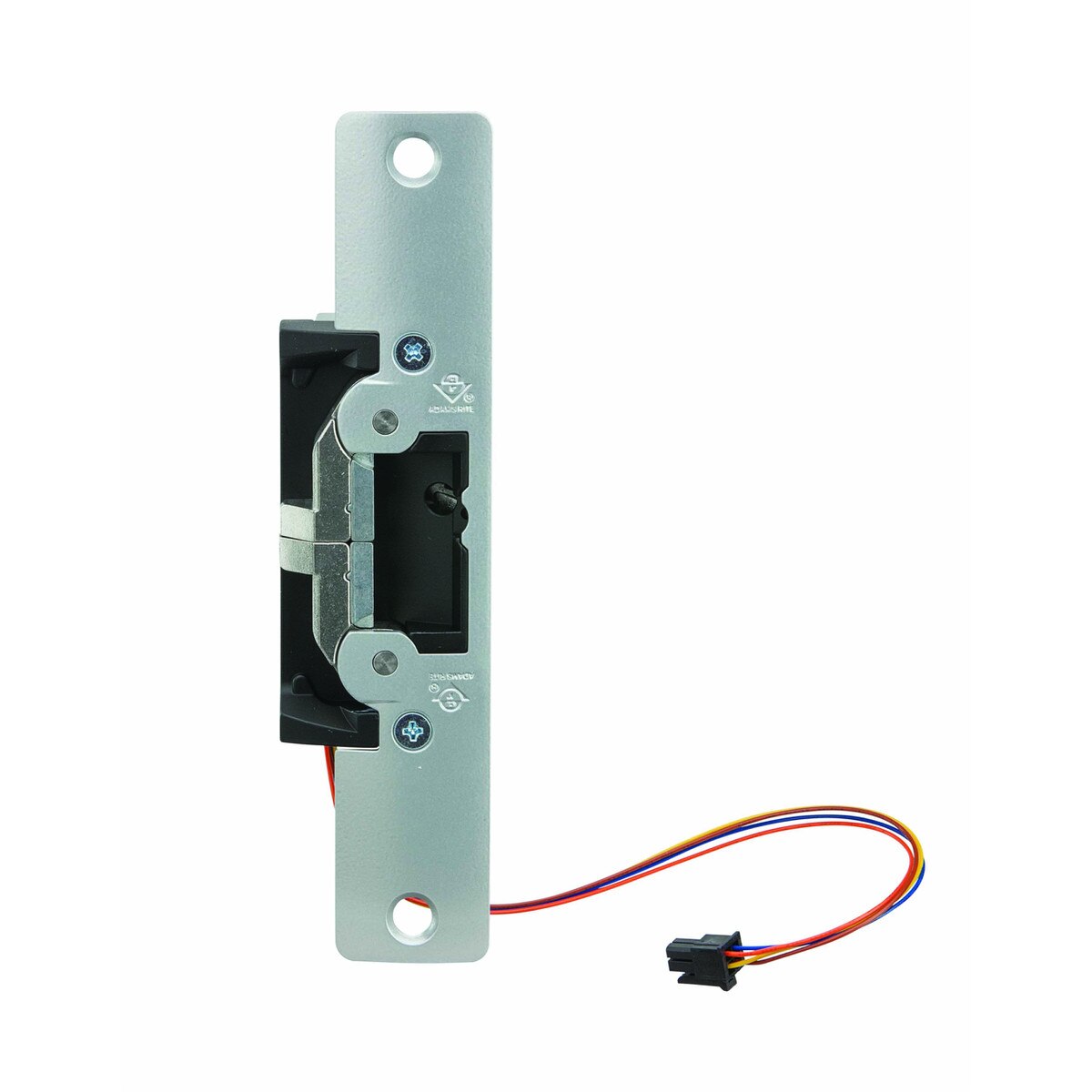

UltraLine® 7400 Series Electric Strikes

This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strike releases electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Remote electrical control of narrow stile aluminum doors equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

FEATURES

• Finish: 121 - Matches 335 - Black Anodized
• Voltage: Field selectable to match power source of 12/24 VDC.
• Current Draw: .44A at 12 VDC/.23A at 24 VDC
• Fail Safe/Secure: Field selectable
• Case: 1-13/32" x 3-3/8" x 1-1/16" deep [35.7
