AR-4300-30-101-628

(0)No Reviews yet
SKU: AR-4300-30-101-628
List Price: $545.00
Manufacturer: Adams Rite
Category: Storefront Locks And Latches
Finish Code: 628/US28
Weight: 2
Description: Steel Hawk Electrified Deadlatch, 1-1/8" Backset, Surface Strike, Aluminum

Available

Details

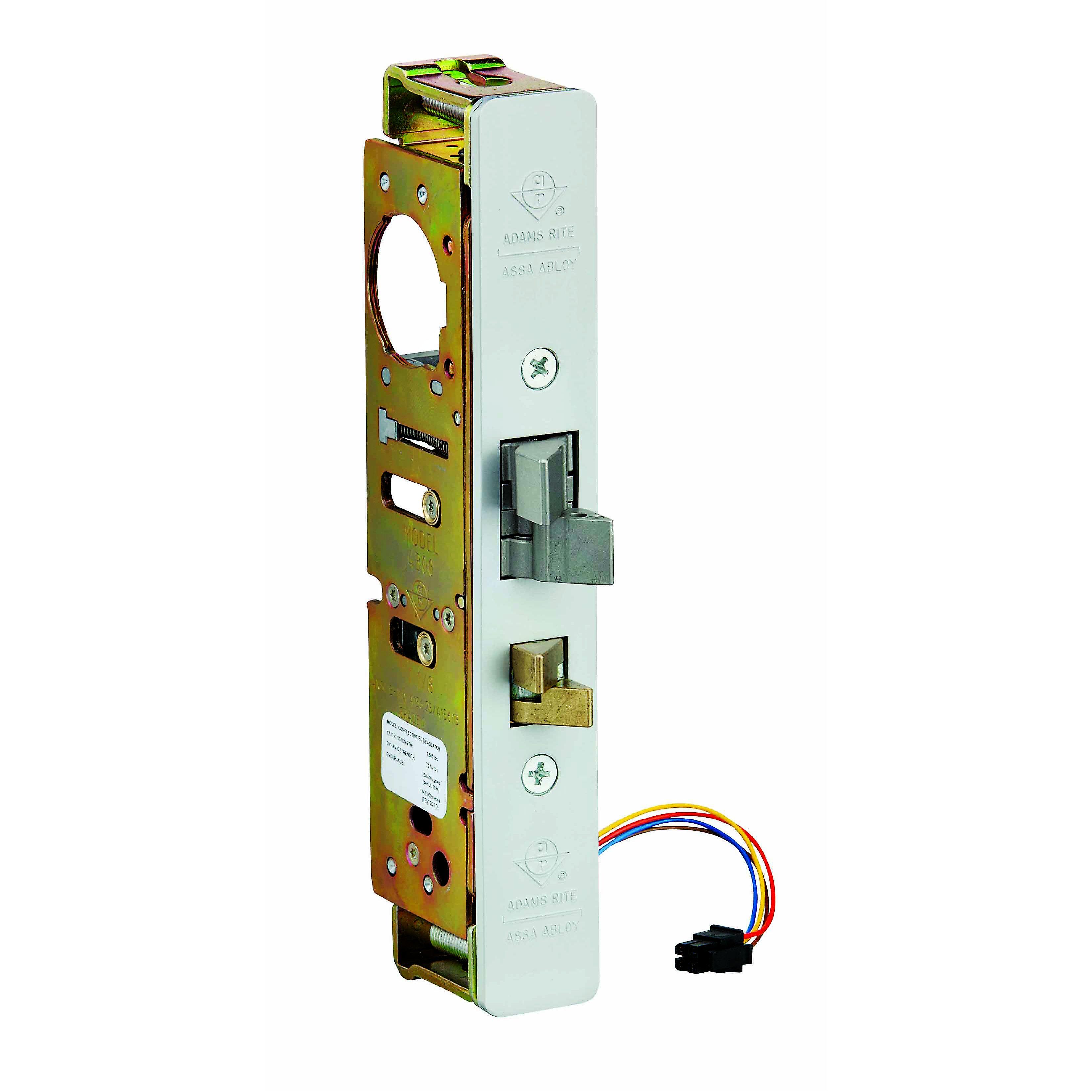

Steel Hawk® 4300 Electrified Deadlatch


The 4300 Electrified Deadlatch seamlessly combines electrified locking hardware with access control while working within standard narrow stile aluminum entrance door preparations. Always operable from the inside via handle or paddle device. Entry via keyed mortise cylinder or access control device such as keypad or card reader. Fail secure lock with optional form “C” latch status monitor. The standard fail secure 4300 Electrified Deadlatch operates on 12, 16, or 24 VDC power and is rated for continuous duty. Units are equipped with a quick connect plug-in type connector. Interchangeable without stile modification for MS® Deadlocks or Adams Rite 4500 and 4900 Deadlatches. 1-3/4" [44.5 mm] minimum door thickness required.


OPERATION


Turn key, apply voltage, or operate handle or paddle to release the spring-loaded latchbolt. Lock accepts cylinder from either or both sides.


FEATURES


  • Finishes: Available in 3 finishes
  • Case: Steel with corrosion-resistant plating.
  • Latchbolt: Stainless steel.
  • Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
  • Faceplates: Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
  • Strike: Pick from optional strikes.
  • Standard Package: Individually boxed with strike plate, flat and radius faceplates, and mounting screws. Supplied with 4581 Universal Cam Plug to work with specified handles or paddle operators. Cylinder, paddle, handle available separately.
  • Shipping weight: 1-1/4 lbs (0.57 kg).
  • Power Failure Mode: Fail Secure standard
  • Cylinder: Standard 1" length, 1-5/32" diameter mortise cylinder with MS® cam
  • Voltage: Field-selectable to match power source of 12, 16, or 24 VDC.
  • Rating: Electrically-rated for continuous duty for timed applications
  • Access Control: Easily interfaces with other access control system elements
  • Monitoring: Optional form “C” latch status monitoring available.

DIMENSIONS


  • Cylinder Backset: 31/32" (24.6 mm), 1-1/8" (28.6 mm), and 1-1/2" (38.1 mm).
  • Door Thickness: 1-3/4" (44.5 mm)
  • Case: 15/16" x 5-13/16" x depth (23.8 mm x 147.6 mm x depth). Depth varies by backset
  • Latchbolt: 5/8" x 1" x 5/8" (15.9 mm x 25.4 mm x 15.9 mm) throw.
  • Faceplate: 1" x 6-7/8" (25.4 mm x 174.6 mm)
  • Latch Face: 1 1/8" x 2 1/4" at 2 3⁄4" backset; 1" x 2 1/4" latch face at 2 3⁄8" backset
  • Current Draw/Amps: 0.44A at 12VDC, 0.458A at 16VDC, 0.23A at 24VDC.

Resources

Options


-2 31/32"
-3 1-1/8"
-4 1-1/2"


0 None
M Monitored


-1 Surface Mount (4304)
-2 Mortised (4901) 4-5/8"


01 Flat/Standard Jamb
02 Radius/Standard Stiles
17 Flat/Center Hung 4" Jamb
21 Flat/Center Hung 4-1/2" Jamb


313 Dark Bronze Anodized
335 Black Anodized
628 Clear Anodized
