VD-PS914-2RS-FA
Details

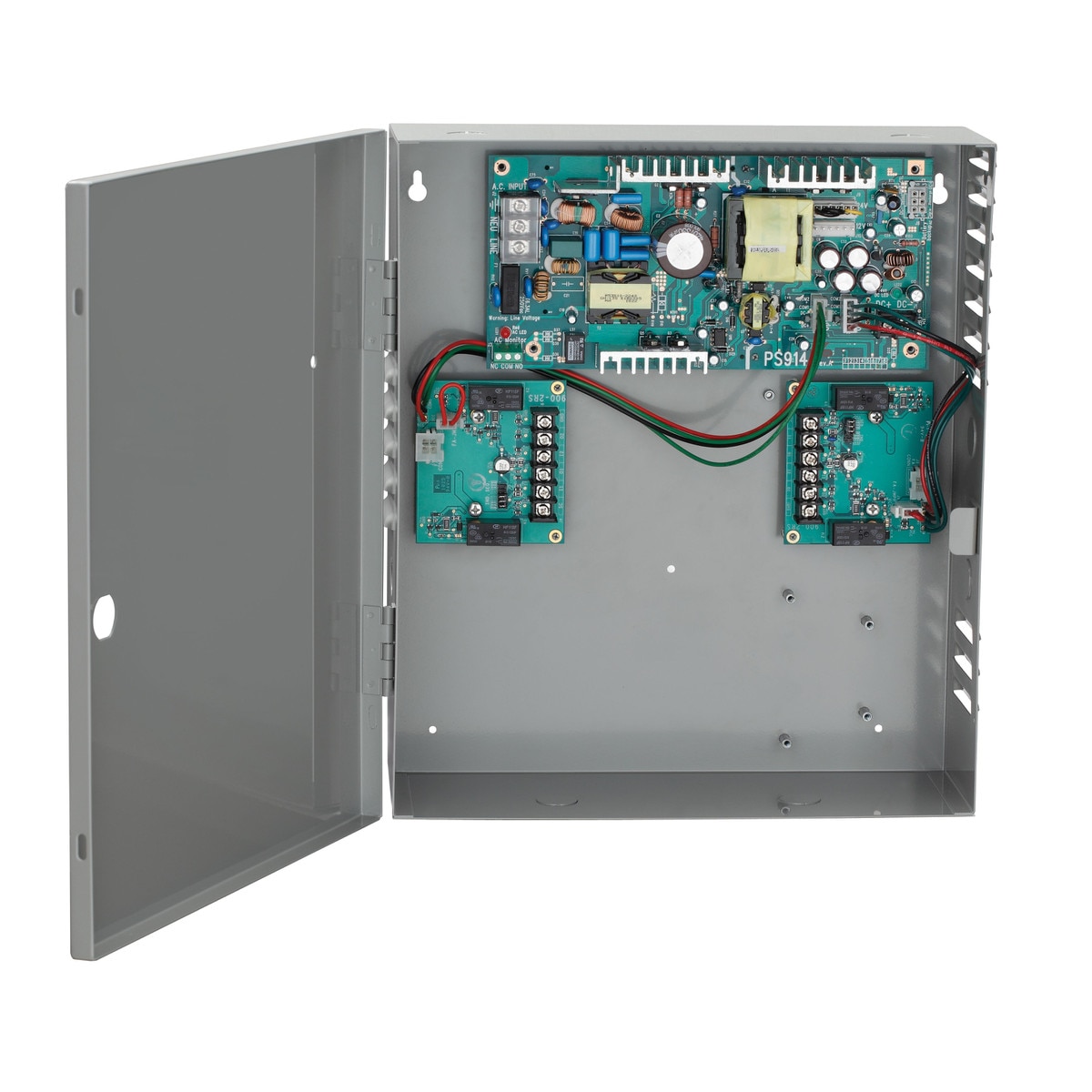

PS-914 Power Supply
The Von Duprin PS914 is a 4-amp power supply designed to manage high in-rush requirements. Like similar power supply models under the Schlage brand, it is made for the electronic access control market and designed with versatility and reliability in mind. With proper option boards in place, the PS914 can manage up to 8 Von Duprin or Falcon electrified latch retraction devices.
Installation is simple with a flat mounting board and polarized locking connectors to make in-field expansions virtually plug-and-play. The design also provides easier access to the terminal blocks for connection of electrified devices.
FEATURES
- Includes 900-2RS: 2 Relay option board capable of individual or sequential operation for single
- Includes 900-FA: Plug-in fire alarm (must be installed on option board)
- Enclosure Finish: Grey/Baked Enamel
- Hinged cover with lock down screw
Resources
CUT SHEETS
Allegion Electronic Access Control Catalog
TEMPLATES
Von Duprin PS914 Power Supply Installation Instructions
Von Duprin PS900 Series Option Boards Installation Instructions
Schlage 900-FA Fire Alarm Input Installation Instructions
CERTIFICATIONS
- ANSI/UL 294
- ULC-S318
- RoHS
- FCC Part 15
- Class 2
