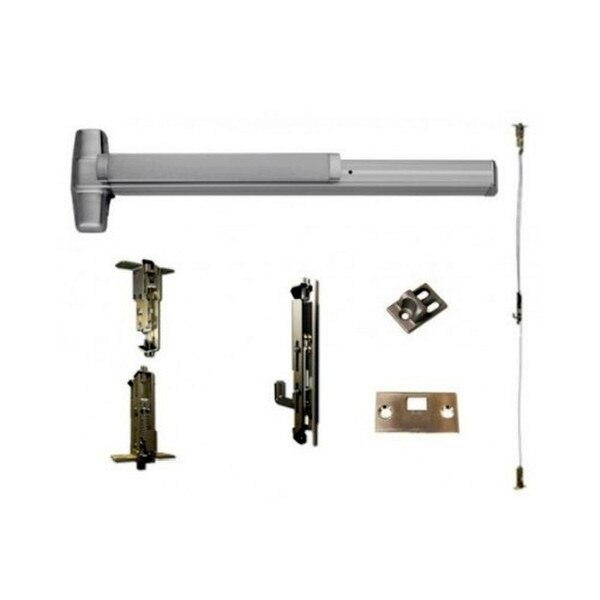

9949 Series Concealed Vertical Cable Exit Device
The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others.
FEATURES
- Mechanism Case Design: Grooved (99)
- Device Type: 49 - Concealed Vertical Cable (CVC)
- Field Selectable Functions: Device ships EO/DT/NL; For TP, K or L remove NL drive screw from device
- Dogging: Hex Key Dogging, standard on panic exit devices
- Latch Bolt: Deadlocking anti-friction top and bottom bolt. "U" shaped top latch with greater than 90-degree bolt-to-strike engagement provides greater strength and deadlocking without the need for an auxiliary latch or unsightly latch release hardware
- Strikes: Includes 249 top strike and 349 bottom strike. Includes 338 Filler Plate for retrofitting.
- Fasteners: Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors.
- Vertical Cables: 7/32" (6 mm) Diameter stainless steel cables designed to maintain positive latching even if alignment is not perfect due to changing door conditions.
- Duty: Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- Modular Design: A variety of field-configurable options and retrofit kits available to keep up with changing technology and meet a facility's changing needs
- Maintenance Requirements: Significantly less maintenance than traditional vertical rods, the entire assembly can be removed and reinstalled while door is hanging in a matter of minutes. Should door sag, bottom latch can be repositioned in minutes by a single person without removing the door from frame. Frequent adjustment is greatly reduced
DIMENSIONS
- Device Size: 3' Device, Standard, for 2'-4" to 3'-0" Doors. 2' Device for 2'-0" Door and 4' Device for 2'-10" to 4'-0" Door available
- Door Thickness: 1-3/4" Standard, Optional 2" (DT2), and 2-1/4" (DT2-1/4) door thicknesses available
- Default Nominal Door Opening Height: 82" - 96". See catalog for top and bottom cable part numbers for door opening height if other than the default.
- Device Centerline from Finished Floor: 39 5⁄8" (1006 mm) Standard
- Center Case: 8" x 2 3⁄4" x 2 3⁄8" (203 mm x 70 mm x 60 mm)
- Mechanism Case: 2 1⁄4" x 2 1⁄4" (57 mm x 57 mm)
- Push Bar Neutral Projection: 3 13⁄16" (97 mm)
- Push Bar Depressed Projection: 3 1⁄16" (78 mm)
- Top and Bottom Latch Case: 5 13/16" x 1 1/4" x 1 7/16" (147 mm x 32 mm x 37 mm)
- Latch Bolt Throw: 1/2" (13 mm)
- Door Undercut: 3/4" (19 mm) maximum. Spacer block kit needed for 3⁄4" undercut.
Resources
CUT SHEETS
Von Duprin 98-99 Series Catalog
TEMPLATES
Von Duprin 98/9949WDC Concealed Vertical Cable Exit Device Wood Door Installation Instructions
Von Duprin 98/9949 Concealed Vertical Device Installation Instructions
Von Duprin 98/9949 CVC Cable Sizing at Attachment Installation Instructions
Von Duprin 99 Wood Door Templates Index
Von Duprin 99 Series Exit Device Hollow Metal Door Applications Template Index
CERTIFICATIONS
- ANSI/BHMA A156.3-2014 Grade 1 certified
- ANSI/UL 305
- ANSI/UL 10C (fire rated only)
Options
| Alarm Kit (ALK) | Unauthorized opening triggers horn Includes RX switch and 9 volt battery |
| Allegion Connect (CON) | Includes Allegion Connect wire harnesses with connectors on both ends or crimped pins on one end |
| Chexit (CX) | Delayed Egress Meets NFPA and IBC requirements for delayed egress A standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds |
| Electric Latch Retraction (EL) | Enables remote unlatching Also available with Hex Dogging (HD-EL) |
| Emergency Secure Lockdown (ESL) | Ideal for high-occupancy spaces, such as auditorium-style classrooms with access control Occupants can turn the thumb turn (or cylinder key), interrupting the power to the QEL motor, and electronically undogging to secure pull side of the door as well as sends a signal to the access control system The visual indication assures the occupant the exit device has been put into secure lockdown mode. |
| Latch Bolt Monitoring (LX) | Signals use of an opening LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch condition 2 amp maximum @ 24VDC |
| Latch Bolt Monitoring - Low Current (LX-LC) | Signals use of an opening LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch condition Low current (LC) below 50 Milliamps @ 24VDC |
| Latch Bolt Monitoring - Request to Exit (LX-RX) | Signals use of an opening LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch condition One RX Switch 2 amp maximum @ 24VDC |
| Latch Bolt Monitoring - Request to Exit- Low Current (LX-RX-LC) | Signals use of an opening LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch condition One RX Switch Low current (LC) below 50 Milliamps @ 24VDC |
| Quiet Electric Latch Retraction (QEL) | Electronic latch retraction with limited operational noise |
| Request To Exit (RX) | Signals use of an opening One RX Switch 2 amp maximum @ 24VDC |
| Double Request To Exit (RX2) | Signals use of an opening Two RX Switches 2 amp maximum @ 24VDC |
| Request To Exit - Low Current (RX-LC) | Signals use of an opening One RX Switch Low current (LC) below 50 Milliamps @ 24VDC |
| Signal Switch (SS) | Monitors push pad and latch bolt. Used to signal the unauthorized use of an opening. Includes RSS lettering on push pad and mortise cylinder for alarm bypass. Equipped with two internal SPDT switches. One switch monitors both the push pad and the latch bolt assembly, making the latch bolt tamper resistant, for positive security. An additional SPDT switch is connected to the 1 1⁄4" (32mm) mortise cylinder with straight cam for alarm “bypass.” 2 amp maximum @ 24VDC |
| Double Cylinder (-2) | Allows users to lock the outside trim from inside the room, while still allowing free egress. Clear lock/unlock icons provide directional indication to secure opening Must be ordered with 996-2 lever trim. |
| Double Cylinder with Security Indicator (-2S1) | Provides an at-a-glance verification of the LOCKED/UNLOCKED status of the door from inside of the room. Allows users to lock the outside trim from inside the room, while still allowing free egress. Must be ordered with 996-2 lever trim. |
| Accessible Device (AX) | Meets the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) and 2013 California Building Code |
| Hurricane Device (HH) | Wind and Impact - Hurricane Rated HH33/3547A is furnished with double latch brackets and requires template #10057 |
| Less Bottom Latch (LBL) | Removes the bottom cable, latch case, and strike |
| Drainage/Weep Holes in Mechanism Case (WH) | 2' and 3' devices will have 5 holes, 6" spacing 4' device will have 7 holes, 6" spacing |
| Cylinder Dogging (CD) | Replaces the standard hex key dogging Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included |
| Chexit Cylinder Dogging (CD-CX) | Replaces the standard hex key dogging For use with Chexit controlled egress device Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included |
| Cylinder Dogging Indicator (CI) | Red indicator light blinks every 5 seconds when not dogged, visible from over 75 feet away Designed for battery life over one year Requires 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included. |
| Cylinder Dogging with Security Indicator (CDSI) | Replaces the standard hex key dogging Provides an at-a-glance verification of the status of the door from inside of the room Visible “LOCKED” and “UNLOCKED” indicators show whether the device is undogged or dogged Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included |
| Dogging Indicator (DI) | Standard Hex Key Dogging Red indicator light blinks every 5 seconds when not dogged, visible from over 75 feet away Designed for battery life over one year. |
| Hex Dogging with Security Indicator (HDSI) | Standard hex key dogging Provides an at-a-glance verification of the status of the door from inside of the room Visible “LOCKED” and “UNLOCKED” indicators show whether the device is undogged or dogged |
| Less Dogging (LD) | Removes the dogging option |
| Special Center Case Dogging (SD) | Special cylinder dogging in the center case is available for Chexit, EL, QEL, ALK panic devices to allow for mechanical push/pull operation. Requires 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included. |
| Exit Only (EO) | Default Trim: None |
| Dummy Trim (DT) | Default Trim: 990DT |
| Night Latch, Key Retracts (NL) | Default Trim: 990NL-R/V |
| Night Latch, Optional Pull (NL-OP) | Default Trim: 110MD/WD |
| Thumbpiece (TP) | Default Trim: 990TP-R/V |
| Thumbpiece - Blank Escutcheon (TP-BE) | Default Trim: 990TP-BE-R/V |
| Lever - Classroom (L) | Default Trim: 996L-R/V |
| Lever - Blank Escutcheon (L-BE) | Passage Function Default Trim: 996L-BE-R/V |
| Lever - Dummy Trim (L-DT) | Default Trim: 996L-DT-R/V |
| Lever - Night Latch (L-NL) | Default Trim: 996L-NL-R/V |
| Lever - Key Capture (L-KC) | Default Trim: 996L-KC-R/V |
| Panic Exit Device | Certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for panic exit hardware. |
| Fire Exit Device (-F) | Certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware |
| 605 | Bright Brass (US3) |
| 606 | Satin Brass (US4) |
| 612 | Satin Bronze (US10) |
| 613 | Satin Bronze-Oil Rubbed (US10B) |
| 622/711 | Matte Black/Matte Black, Anodized (315) |
| 625 | Bright Chrome (US26) |
| 626 | Satin Chrome (US26D) |
| 626AM | Satin Chrome Antimicrobial (US26D-AM) |
| 628 | Anodized Aluminum (US28) |
| 643E | Aged Bronze |
| 710 | Duranodic Dark Bronze (313) |
| LC | Less Control |
| LT | Less Trim |
| 696 Series Lever Trim | Replaces default trim with 696 Series Trim |
| 697 Series Lever Trim | Replaces default trim with 697 Series Trim |
