VD-9927EO-F-48-US26D
Details

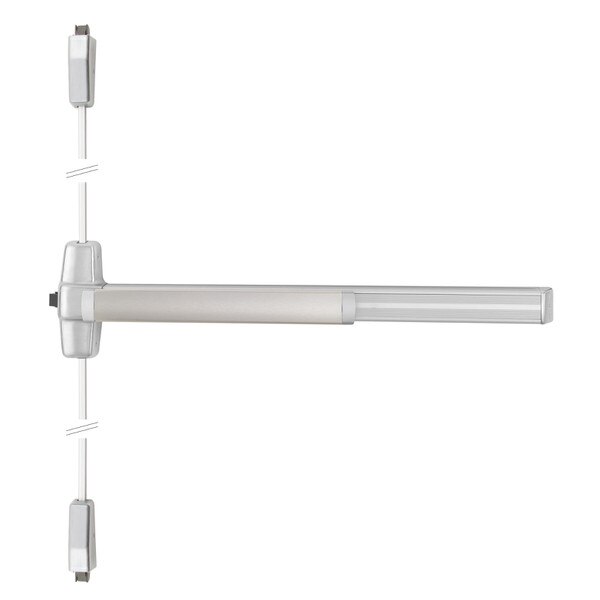

9927 Series Surface Vertical Rod Exit Device
The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others.
FEATURES
- Mechanism Case Design: Grooved (99)
- Device Type: 27 - Surface Vertical Rod (SVR)
- Field Selectable Functions: Device ships EO/DT/NL; For TP, K or L remove NL drive screw from device
- Dogging: Hex Key Dogging, standard on panic exit devices
- Latch Bolt: Deadlocking anti-friction top and bottom bolt
- Strikes: Includes 299 and 304L strikes. Also includes 248L-4 Bottom Strike for Flat Thresholds (Panic Only),
- Fasteners: Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors and 325 SNB for top and bottom latch
- Vertical Rods: ½" square tubing, standard rods accommodate 7' (2134 mm) door. Extension rod kits available for doors over 7' (2134 mm). One piece top rod is available for 8' (2438 mm) and 10' (3048 mm) doors
- Duty: Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- Modular Design: A variety of field-configurable options and retrofit kits available to keep up with changing technology and meet a facility's changing needs
DIMENSIONS
- Device Size: 3' Device, Standard, for 2'-4" to 3'-0" Doors. 2' Device for 2'-0" Door and 4' Device for 2'-10" to 4'-0" Door available
- Door Thickness: 1-3/4" Standard, Optional 2" (DT2), and 2-1/4" (DT2-1/4) door thicknesses available
- Top Rod Length: 34 15⁄16" (887 mm)
- Bottom Rod Length: 31 1⁄2" (794 mm)
- Device Centerline from Finished Floor: 39 5⁄8" (1006 mm)
- Center Case: 8" x 2 3⁄4" x 2 3⁄8" (203 mm x 70 mm x 60 mm)
- Mechanism Case: 2 1⁄4" x 2 1⁄4" (57 mm x 57 mm)
- Push Bar Neutral Projection: 3 13⁄16" (97 mm)
- Push Bar Depressed Projection: 3 1⁄16" (78 mm)
- Top and Bottom Latch Bolt: 4 ½" x 2 1⁄8" x ½" (114 mm x 54 mm x 38 mm)
- Latch Bolt Throw: 5/8" (16 mm)
- Door Undercut: 1/4" (7 mm) recommended
Resources
CUT SHEETS
Von Duprin 98-99 Series Catalog
TEMPLATES
Von Duprin 98/9927 Surface Vertical Rod Exit Device Installation Instructions
Von Duprin 98/9927 Latch and Strike Template Installation Instructions
Von Duprin 99 Wood Door Templates Index
Von Duprin 99 Series Exit Device Hollow Metal Door Applications Template Index
CERTIFICATIONS
- ANSI/BHMA A156.3-2014 Grade 1 certified
- ANSI/UL 305
- ANSI/UL 10C (fire rated only)
Options
| Alarm Kit (ALK) | Unauthorized opening triggers horn Includes RX switch and 9 volt battery |
| Allegion Connect (CON) | Includes Allegion Connect wire harnesses with connectors on both ends or crimped pins on one end |
| Chexit (CX) | Delayed Egress Meets NFPA and IBC requirements for delayed egress A standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds |
| Electric Latch Retraction (EL) | Enables remote unlatching Also available with Hex Dogging (HD-EL) |
| Emergency Secure Lockdown (ESL) | Ideal for high-occupancy spaces, such as auditorium-style classrooms with access control Occupants can turn the thumb turn (or cylinder key), interrupting the power to the QEL motor, and electronically undogging to secure pull side of the door as well as sends a signal to the access control system The visual indication assures the occupant the exit device has been put into secure lockdown mode. |
| Latch Bolt Monitoring (LX) | Signals use of an opening 2 amp maximum @ 24VDC |
| Latch Bolt Monitoring - Low Current (LX-LC) | Signals use of an opening Low current (LC) below 50 Milliamps @ 24VDC |
| Latch Bolt Monitoring - Request to Exit (LX-RX) | Signals use of an opening One RX Switch 2 amp maximum @ 24VDC |
| Latch Bolt Monitoring - Request to Exit- Low Current (LX-RX-LC) | Signals use of an opening One RX Switch Low current (LC) below 50 Milliamps @ 24VDC |
| Quiet Electric Latch Retraction (QEL) | Electronic latch retraction with limited operational noise |
| Request To Exit (RX) | Signals use of an opening One RX Switch 2 amp maximum @ 24VDC |
| Double Request To Exit (RX2) | Signals use of an opening Two RX Switches 2 amp maximum @ 24VDC |
| Request To Exit - Low Current (RX-LC) | Signals use of an opening One RX Switch Low current (LC) below 50 Milliamps @ 24VDC |
| Signal Switch (SS) | Monitors push pad and latch bolt. Used to signal the unauthorized use of an opening. Includes RSS lettering on push pad and mortise cylinder for alarm bypass. Equipped with two internal SPDT switches. One switch monitors both the push pad and the latch bolt assembly, making the latch bolt tamper resistant, for positive security. An additional SPDT switch is connected to the 1 1⁄4" (32mm) mortise cylinder with straight cam for alarm “bypass.” 2 amp maximum @ 24VDC |
| Double Cylinder (-2) | Allows users to lock the outside trim from inside the room, while still allowing free egress. Clear lock/unlock icons provide directional indication to secure opening Must be ordered with 996-2 lever trim. |
| Double Cylinder with Security Indicator (-2S1) | Provides an at-a-glance verification of the LOCKED/UNLOCKED status of the door from inside of the room. Allows users to lock the outside trim from inside the room, while still allowing free egress. Must be ordered with 996-2 lever trim. |
| Accessible Device (AX) | Meets the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) and 2013 California Building Code |
| Hurricane Device (HH) | Wind and Impact - Hurricane Rated |
| Less Bottom Rod (LBR) | Removes the bottom rod, latch, and strike |
| Quiet Mechanical Operation (QM) | Provides damper-controlled relatching of device |
| Drainage/Weep Holes in Mechanism Case (WH) | 2' and 3' devices will have 5 holes, 6" spacing 4' device will have 7 holes, 6" spacing |
| Windstorm Device (WS) | WS for tornado application devices WS98/9927 (two-point) surface vertical rod exit devices are designed, tested and certified to comply with the Federal Emergency Management Agency's publication FEMA 361- Design and Construction Guidance for Community Safe Rooms. See UL listing and catalog for requirements. |
| Cylinder Dogging (CD) | Replaces the standard hex key dogging Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included |
| Cylinder Dogging Indicator (CI) | Red indicator light blinks every 5 seconds when not dogged, visible from over 75 feet away Designed for battery life over one year Requires 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included. |
| Cylinder Dogging with Security Indicator (CDSI) | Replaces the standard hex key dogging Provides an at-a-glance verification of the status of the door from inside of the room Visible “LOCKED” and “UNLOCKED” indicators show whether the device is undogged or dogged Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included |
| Dogging Indicator (DI) | Standard Hex Key Dogging Red indicator light blinks every 5 seconds when not dogged, visible from over 75 feet away Designed for battery life over one year. |
| Hex Dogging with Security Indicator (HDSI) | Standard hex key dogging Provides an at-a-glance verification of the status of the door from inside of the room Visible “LOCKED” and “UNLOCKED” indicators show whether the device is undogged or dogged |
| Less Dogging (LD) | Removes the dogging option |
| Special Center Case Dogging (SD) | Special cylinder dogging in the center case is available for Chexit, EL, QEL, ALK panic devices to allow for mechanical push/pull operation. Requires 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included. |
| Exit Only (EO) | Default Trim: None |
| Dummy Trim (DT) | Default Trim: 990DT |
| Night Latch, Key Retracts (NL) | Default Trim: 990NL-R/V |
| Night Latch, Optional Pull (NL-OP) | Default Trim: 110MD/WD |
| Thumbpiece (TP) | Default Trim: 990TP-R/V |
| Thumbpiece - Blank Escutcheon (TP-BE) | Default Trim: 990TP-BE-R/V |
| Lever - Classroom (L) | Default Trim: 996L-R/V |
| Lever - Blank Escutcheon (L-BE) | Passage Function Default Trim: 996L-BE-R/V |
| Lever - Dummy Trim (L-DT) | Default Trim: 996L-DT-R/V |
| Lever - Night Latch (L-NL) | Default Trim: 996L-NL-R/V |
| Lever - Key Capture (L-KC) | Default Trim: 996L-KC-R/V |
| Turn Lever (TL) | Default Trim: 990DT |
| Turn Lever - Blank Escutcheon (TL-BE) | Default Trim: 990DT |
| Panic Exit Device | Certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for panic exit hardware. |
| Fire Exit Device (-F) | Certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware |
| 605 | Bright Brass (US3) |
| 606 | Satin Brass (US4) |
| 612 | Satin Bronze (US10) |
| 613 | Satin Bronze-Oil Rubbed (US10B) |
| 622/711 | Matte Black/Matte Black, Anodized (315) |
| 625 | Bright Chrome (US26) |
| 626 | Satin Chrome (US26D) |
| 626AM | Satin Chrome Antimicrobial (US26D-AM) |
| 628 | Anodized Aluminum (US28) |
| 643E | Aged Bronze |
| 710 | Duranodic Dark Bronze (313) |
| LC | Less Control |
| LT | Less Trim |
| 696 Series Lever Trim | Replaces default trim with 696 Series Trim |
| 697 Series Lever Trim | Replaces default trim with 697 Series Trim |
| 374 Series Control x 990DT Trim | Replaces default control trim with 374 Series Control Trim |
| Standard Panic Exit Device Strikes | 248-L Bottom Strike Projection: 3/8" (10 mm) 304-L Bottom Strike Projection: 13/16" (21 mm) 299 Top Strike Projection: 13/16" (21 mm) |
| Standard Fire Rated Exit Device Strikes | 248-L Bottom Strike Projection: 3/8" (10 mm) 304-L Bottom Strike Projection: 13/16" (21 mm) 299F Top Strike Projection: 13/16" (21 mm) |
| 499F Strike Option | For LBR Devices Projection: 15/16" (24 mm) |
| 385A Bottom Strike Option | Mortise: 2 1/2" ( 64 mm) |
| 260U Top Strike Option | For Flush Transom Frames Projection: 3/8" (10 mm) |
| 260U-F Top Strike Option | For Flush Transom Frames - Fire Rated Projection: 3/8" (10 mm) |
