VD-2227EO-695

(0)No Reviews yet
SKU: VD-2227EO-695
List Price: $1,201.00
Manufacturer: Von Duprin
Description: 2227 Series Surface Vertical Rod Exit Device
Category: Surface Vertical Rod
Finish Code: 695
Weight: 12

Available

Von Duprin

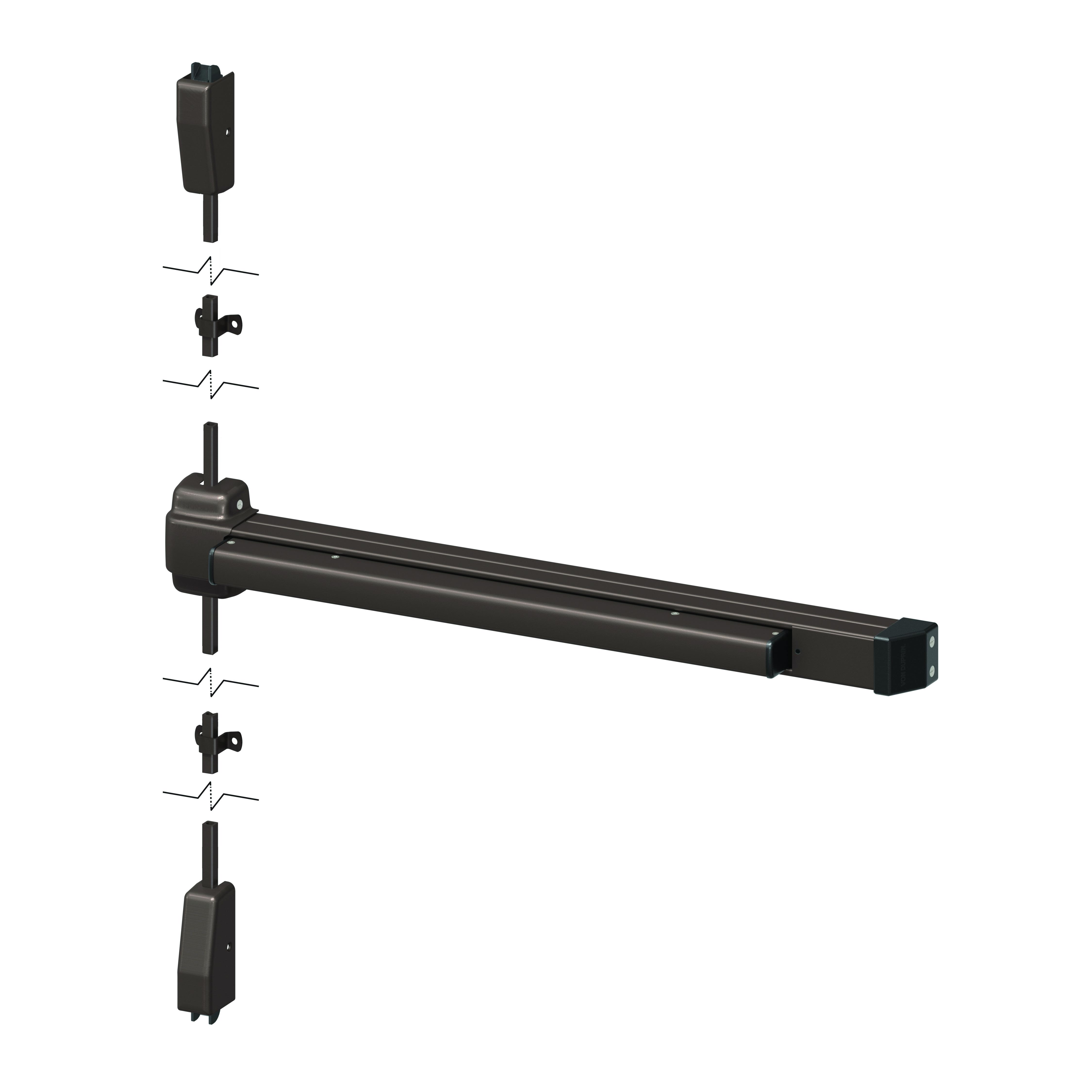

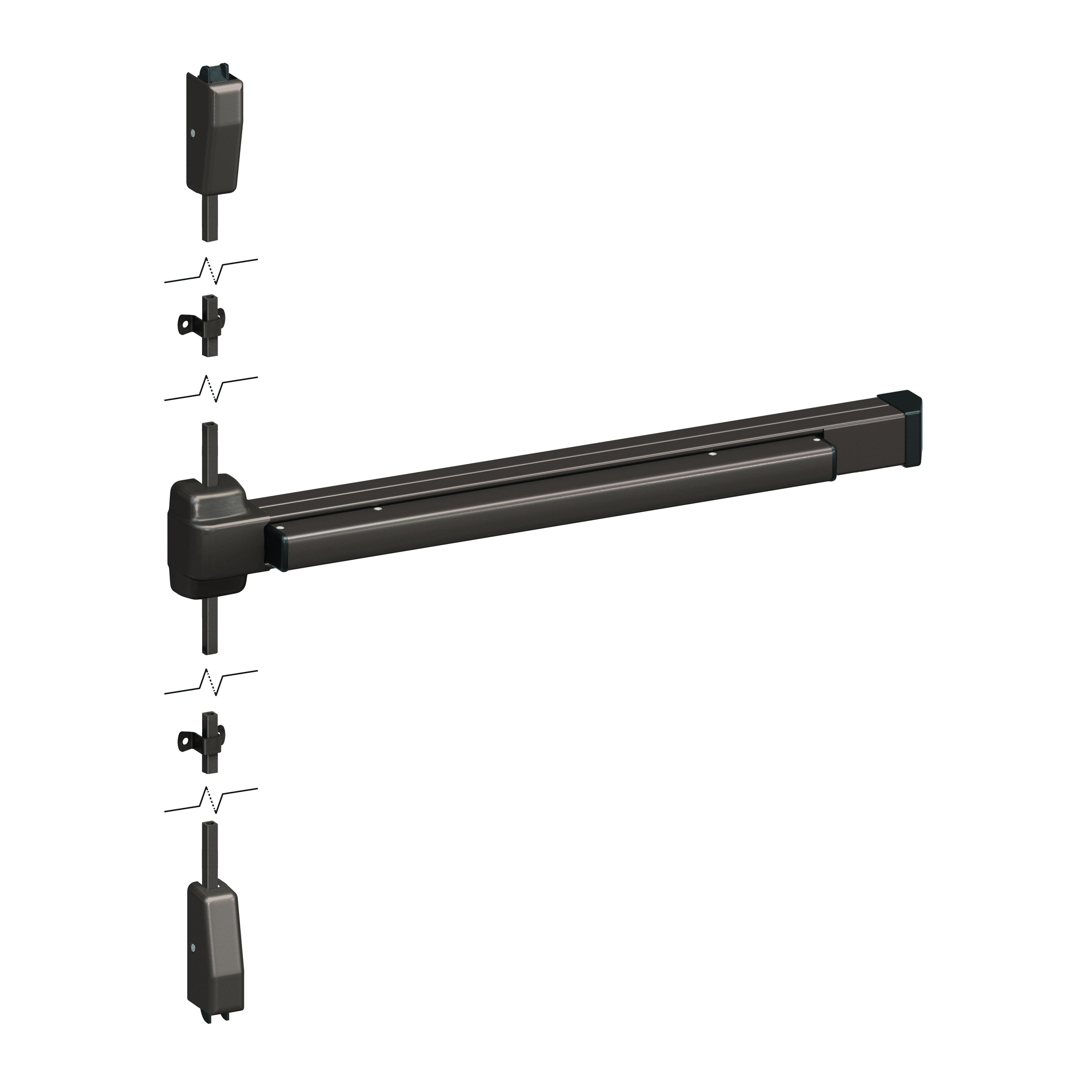

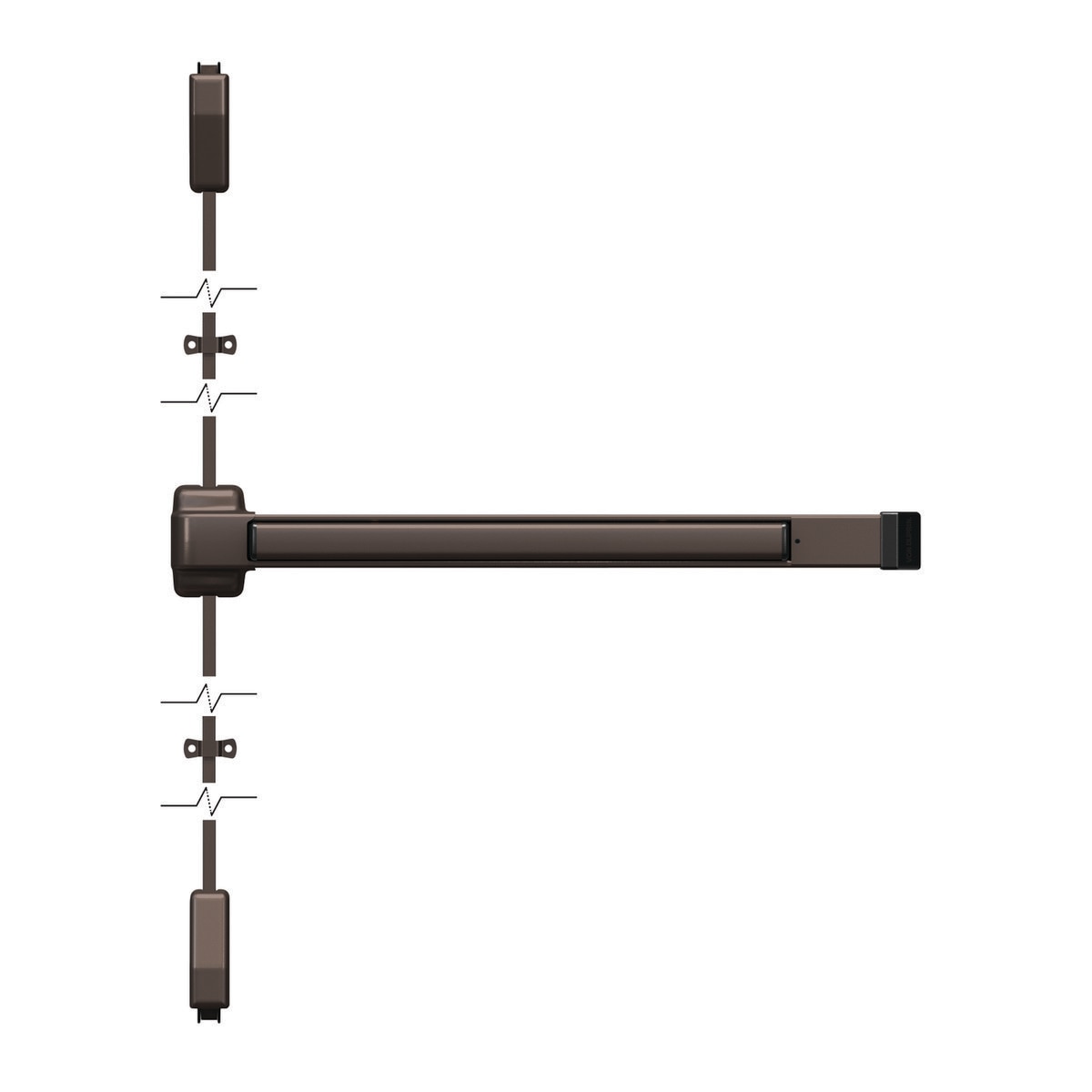

2227 Series Surface Vertical Rod Exit Device


Ideal for back door employee entrances or parking garage stairwells, the Von Duprin 22 Series exit devices are designed for clinic/healthcare, multi-family, or retail/commercial markets. Fits door stiles as narrow as 3 13⁄16" (97 mm). The device is non-handed.


FEATURES


  • Device Type: 27 - Surface Vertical Rod (SVR)
  • Dogging: Hex Key Dogging, standard on panic exit devices
  • Latch Bolt: Deadlocking anti-friction top and bottom bolt
  • Strikes: Includes 299 and 304L strikes, 299F for fire rated devices. Also includes 248L-4 Bottom Strike for Flat Thresholds (Panic Only).
  • Fasteners: Includes screw pack for 1 3⁄4" (44 mm) and 2 1⁄4" (57 mm) thick metal or wood doors; optional SNB available for device.
  • Vertical Rods: ½" square tubing, standard rods accommodate 7' (2134 mm) door. Extension rod kits available for doors over 7' (2134 mm)
  • Power Boost: Provides additional latch forcing for electromechanical unit with microprocessor control
  • Black End Caps: Standard for all finishes, with the exception of 526. All devices configured in 526 finish will be supplied with a metal endcap in 526 finish standard.

DIMENSIONS


  • Device Size: 3' Device, Standard, for 2'-4" to 3'-0" Doors. 4' Device for 2'-10" to 4'-0" Door
  • Door Thickness: 1-3/4" Standard, Optional 2" (DT2), and 2-1/4" (DT2-1/4) door thicknesses available.
  • Top Rod Length: 34 15⁄16" (887 mm)
  • Bottom Rod Length: 31 1⁄2" (794 mm)
  • Device Centerline from Finished Floor: 39 13⁄16" (1011 mm)
  • Center Case: 4 5/32" (105 mm) x 3 3/16" (81 mm) x 2 3/8" (60 mm)
  • Mechanism Case: 2" (51 mm) x 2 3/8" (60 mm)
  • Push Bar Neutral Projection: 3 11⁄16" (94 mm)
  • Push Bar Depressed Projection: 2 7/8" (73 mm)
  • Latch Bolt Throw: 5/8" (16 mm)
  • Door Undercut From Finished Floor: 1/4" (7 mm) recommended
  • Door Undercut Maximum: 3/4" (19 mm) maximum or 1/8" (3 mm) from threshold


Alarm Kit (ALK) Unauthorized opening triggers horn
Includes RX switch and 9 volt battery
Allegion Connect (CON) Includes Allegion Connect wire harnesses with connectors on both ends or crimped pins on one end
Latch Bolt Monitoring (LX) Signals use of an opening
2 amp maximum @ 24VDC
Latch Bolt Monitoring - Low Current (LX-LC) Signals use of an opening
Low current (LC) below 50 Milliamps @ 24VDC
Latch Bolt Monitoring - Request to Exit (LX-RX) Signals use of an opening
One RX Switch
2 amp maximum @ 24VDC
Latch Bolt Monitoring - Request to Exit- Low Current (LX-RX-LC) Signals use of an opening
One RX Switch
Low current (LC) below 50 Milliamps @ 24VDC
Quiet Electric Latch Retraction (QEL) Electronic latch retraction with limited operational noise
Request To Exit (RX) Signals use of an opening
One RX Switch
2 amp maximum @ 24VDC
Double Request To Exit (RX2) Signals use of an opening
Two RX Switches
2 amp maximum @ 24VDC
Request To Exit - Low Current (RX-LC) Signals use of an opening
One RX Switch
Low current (LC) below 50 Milliamps @ 24VDC


Accessible Device (AX) Meets the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) and 2013 California Building Code
Requires Less Bottom Rod (LBR) option
Less Bottom Rod (LBR) Removes the bottom rod, latch, and strike
Less Dogging (LD) Removes the dogging option
Drainage/Weep Holes in Mechanism Case (WH) 3' device will have 5 holes, 6" spacing
4' device will have 7 holes, 6" spacing


Exit Only (EO) Default Trim: None
Dummy Trim (DT) Default Trim: 210DT
Night Latch, Key Retracts (NL) Default Trim: 210NL
Night Latch, Optional Pull (NL-OP) Default Trim: 110MD/WD

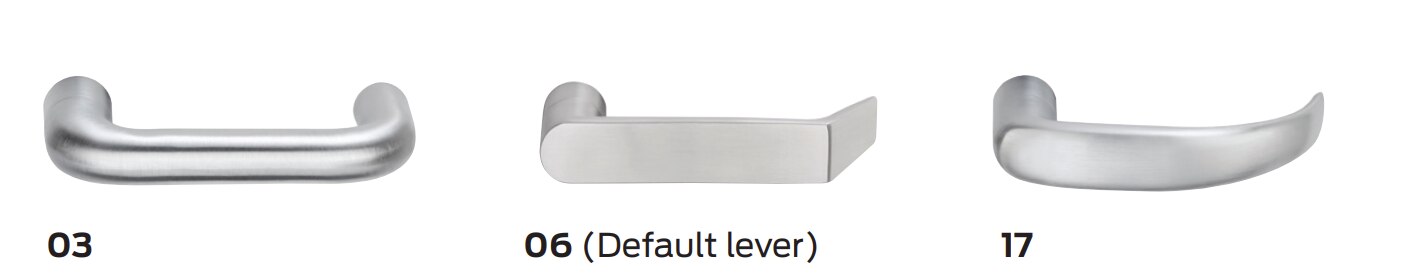

Lever - Classroom (L) L-NL not available
Default Trim: 230L
Lever - Blank Escutcheon (L-BE) Passage Function
Default Trim: 230L-BE
Thumbpiece (TP) Default Trim: 230TP
Thumbpiece - Blank Escutcheon (TP-BE) Passage Function
Default Trim: 230TP-BE


Panic Exit Device Certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for panic exit hardware.
Fire Exit Device (-F) Certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware


526 Powder Coated Chrome
622 Powder Coated Matte Black
689 Powder Coated Aluminum
695 Powder Coated Dark Bronze


LC Less Control
LT Less Trim
230 230 Trim for EO, DT, and NL Functions



Standard Panic Exit Device Strikes 248-L Bottom Strike Projection: 3/8" (10 mm)
304-L Bottom Strike Projection: 13/16" (21 mm)
299 Top Strike Projection: 13/16" (21 mm)
Standard Fire Rated Exit Device Strikes 248-L Bottom Strike Projection: 3/8" (10 mm)
304-L Bottom Strike Projection: 13/16" (21 mm)
299F Top Strike Projection: 13/16" (21 mm)
499F Strike Option For LBR Devices
Projection: 15/16" (24 mm)
385A Bottom Strike Option Mortise: 2 1/2" ( 64 mm)
260U Top Strike Option For Flush Transom Frames
Projection: 3/8" (10 mm)
260U-F Top Strike Option For Flush Transom Frames - Fire Rated
Projection: 3/8" (10 mm)
