S123HOBRABPK

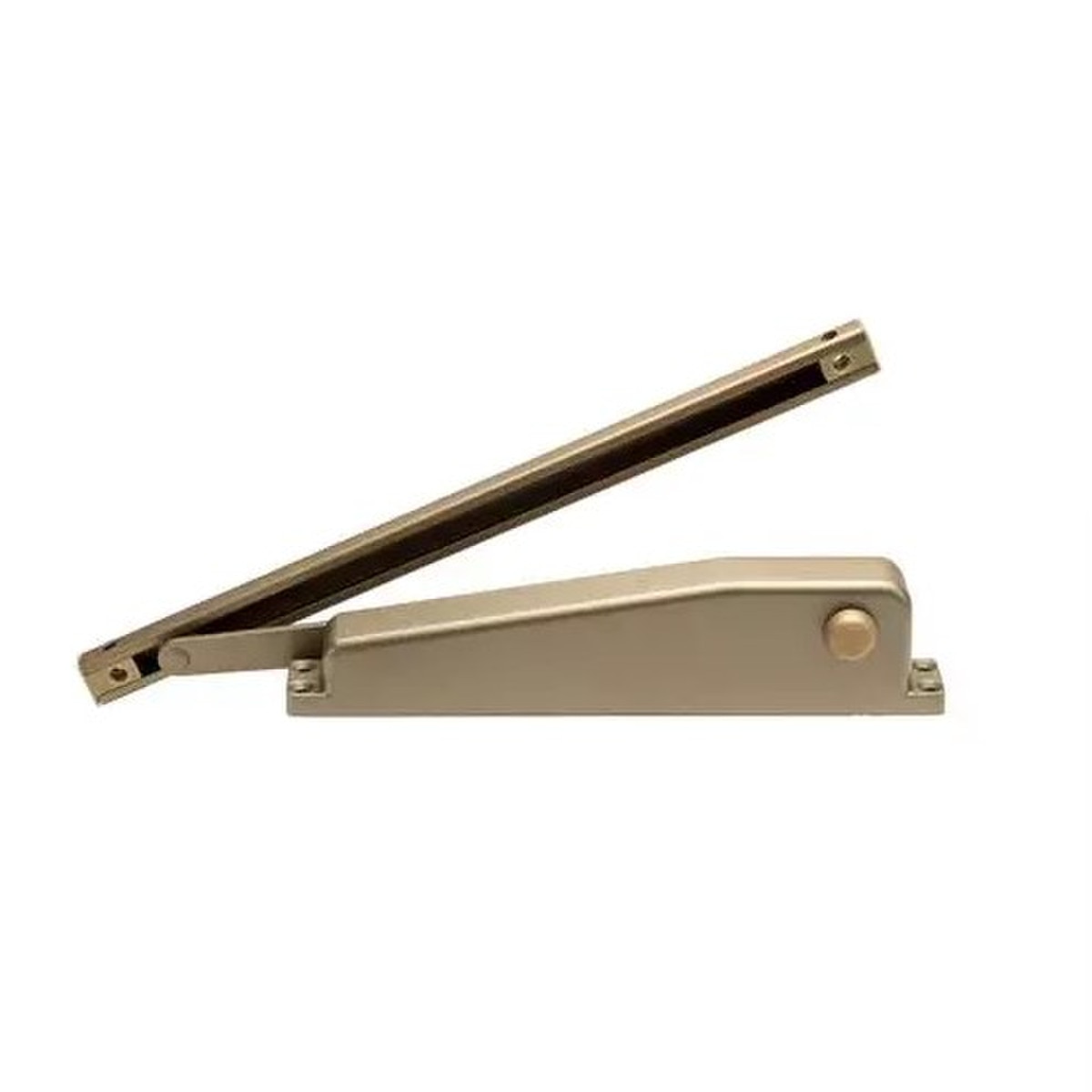

Quietouch® Hardware S123 Series Residential Door Closer

Sentinel's Quietouch® Residential Door Closer allows you to control the action, clamor and safety of your interior doors. It enhances the safety of your home and quietly closes your doors time after time. Hold Open feature acts like a door stop when you want to keep the door open, and with an adjustable closing speed, your door can close as fast or slow as you desire!

FEATURES

• Door Size: Designed for any non-commercial door up to 150 lbs. and 36" wide.
• Body Material: Cast Aluminum
• Cover: None
• Handing: Non-Handed
• Arms: Standard arms available as hold open or non-hold open
• Mounting: Includes mounting hardware for installation on the push or pull side of the door
• Reliable: Closing speed adjustment ensures positive latching.
• Fasteners: Self reaming and tapping screws provided with each closer
• Packaging: Blister packaging (BPK) protect the closer from external factors like moisture, dust, and physical damage during transit and on retail shelves.

DIMENSIONS

• Interior Door Width: 36"
• Body Dimensions: 9 5/8" x 1 1/4" x 2 1/8 (high side) - 1 1/8" (low side)
• Closer Projection: 2 1/8"
• Mounting Hole Pattern: 9 1/8" x 5/8”

CUT SHEETS

Sentinel S123 Series Quietouch Residential Door Closer Data Sheet

TEMPLATES

Sentinel S123 Series Quietouch Residential Door Closer Installation Instructions

CERTIFICATIONS

• 12 month manufacturer’s limited warranty
