LN-2031-RH-689
On Sale

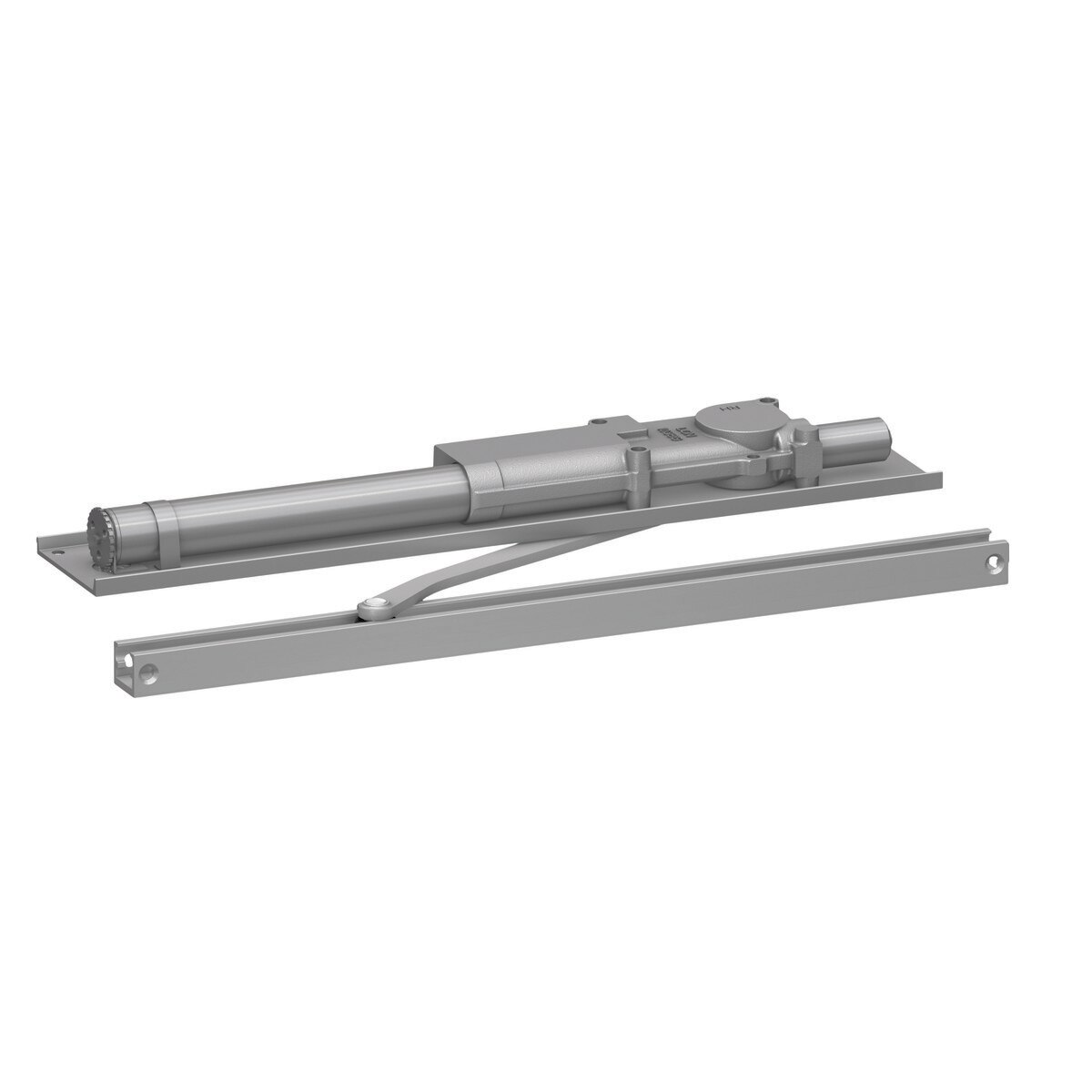

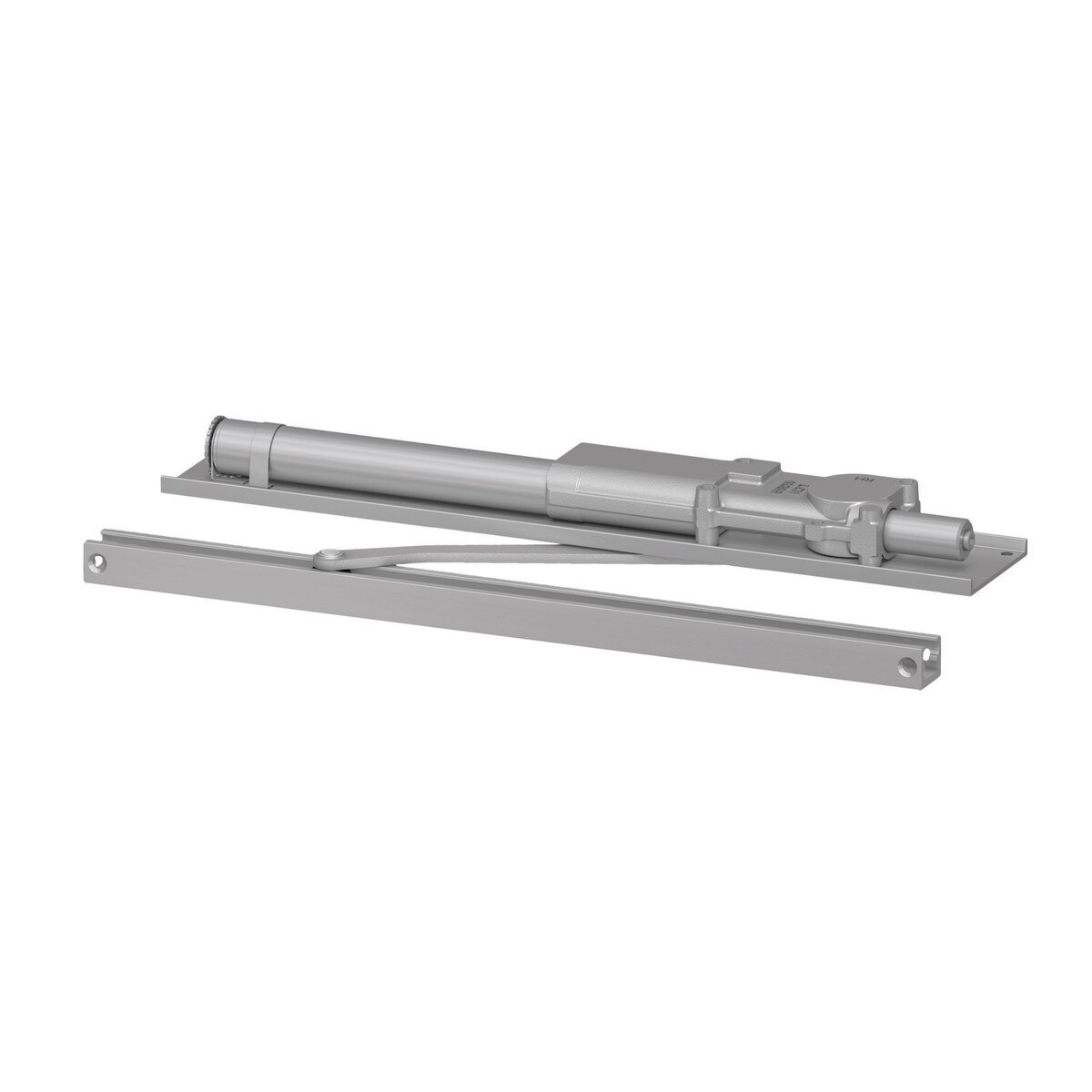

2030 Series Overhead Concealed Closer
The concealed 2030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1 3⁄4" aluminum transom. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
FEATURES
- Reduced Opening Force Closer (5.0lbs Max Opening Force)
- Size: Size 1. Up to 36" Interior
- Arm Type: 2030-3077T Standard Arm (STDTRKARM)
- Track Type: 2030-2038 Standard Track (STDTRK)
- Finish: 689 - Aluminum Powder Coated
- Handing: Right-Handed
- Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4" (44 mm) x 4" (102) mm) tube
- 180 Deg. Swing
- Cast iron body
- Full complement bearing
- 1 1/8" diameter piston
- 11/16" diameter double heat treated pinion journal
- All weather fluid
CUTSHEETS
TEMPLATES
2030 Series All Mounts / Installation Instructions
CERTIFICATIONS
- UL and cUL listed for self-closing doors without hold-open
- Tested and certified under ANSI/BHMA A156.4 Grade 1
- Meets ADA requirements
