IM-S813-LH-DU
Details

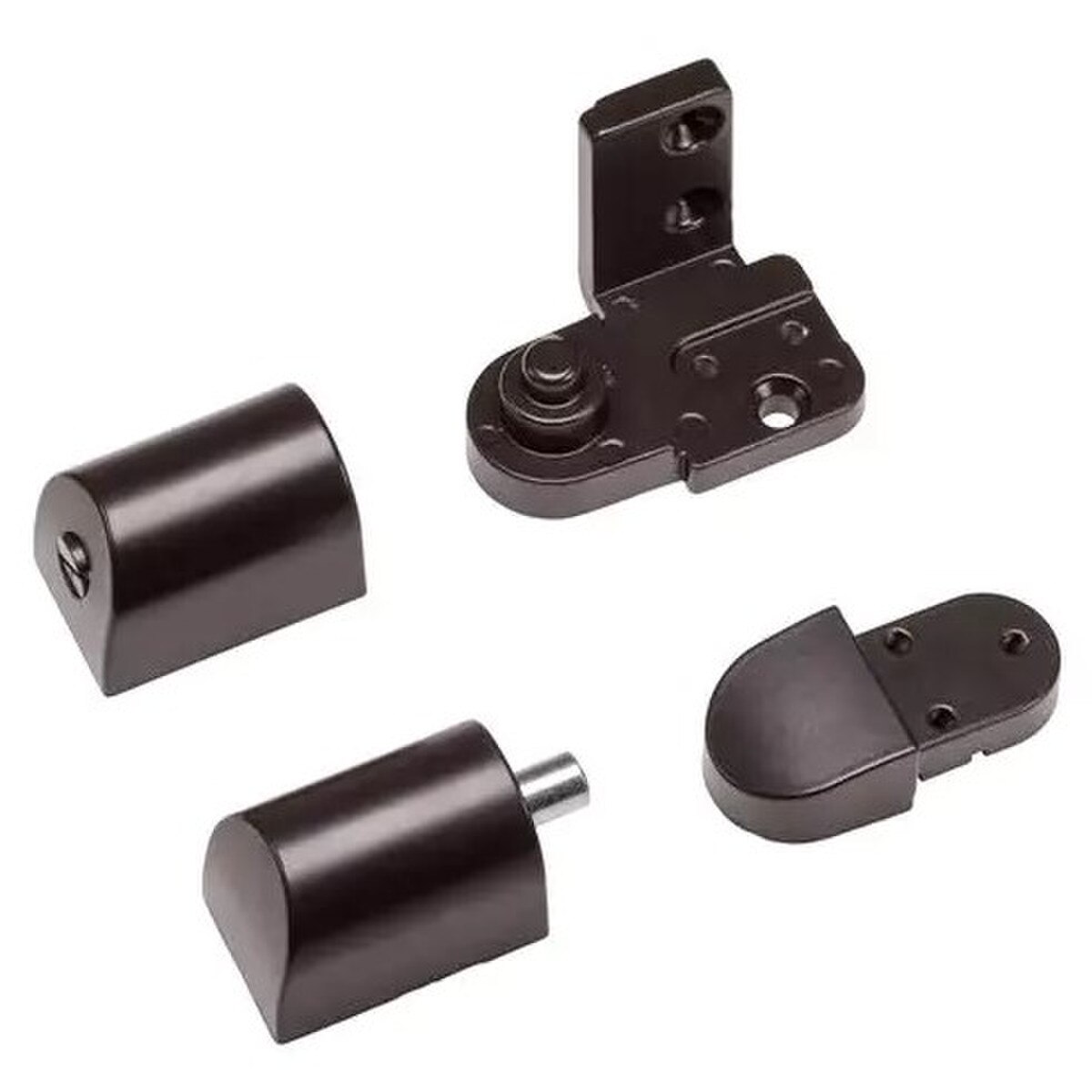

S813 YKK Style Offset Pivots
Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace YKK style storefront pivots. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install.
FEATURES
- Handing: All pivots are handed, specify LH or RH
- Finish: Available in Aluminum (AL), Duronotic Dark Bronze (DU)
- Body Material: Weather Resistant Die-Cast Aluminum Case Construction
- Design: Full Race Ball Bearing provides smooth operation on bottom pivot door portion. Fully retractable, spring loaded top pin for easy installations
- No Sag: Entire weight of doors rests on floor mounted pivot portion
- Easily Replaceable: Removable in unlocked position, yet completely tamper proof
DIMENSIONS
- Size: 3/4"
- Maximum Door Weight: 125 lbs
- Vertical Adjustment: 1/8"
