IM-S810-LH-AL
Details

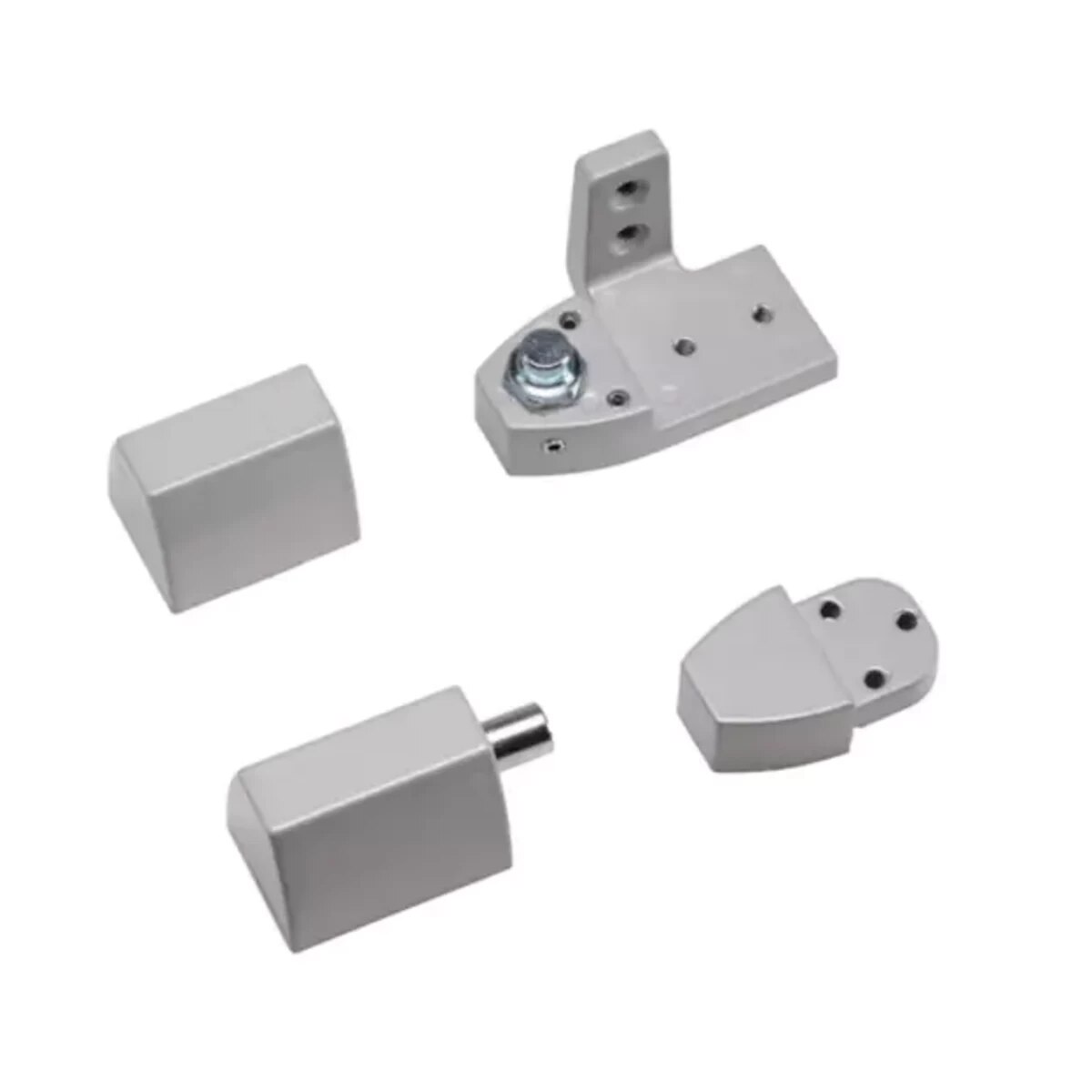

S810/812 Arch/VistaWall Style Offset Pivots
Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace Arch/VistaWall style storefront pivots. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install.
FEATURES
- Handing: All pivots are handed, specify LH or RH
- Finish: Available in Aluminum (AL), Duronotic Dark Bronze (DU), and White (WH)
- Body Material: Weather Resistant Aluminum Case Construction
- Design: Full Race Ball Bearing provides smooth operation on bottom pivot door portion
- No Sag: Entire weight of doors rests on floor mounted pivot portion
- Easily Replaceable: Removable in unlocked position, yet completely tamper proof
DIMENSIONS
- Size: 3/4"
- Maximum Door Weight: 125 lbs
- Vertical Adjustment: 1/8"
