AR-MS1850S-350-313

MS1850S Series MS®Deadlocks

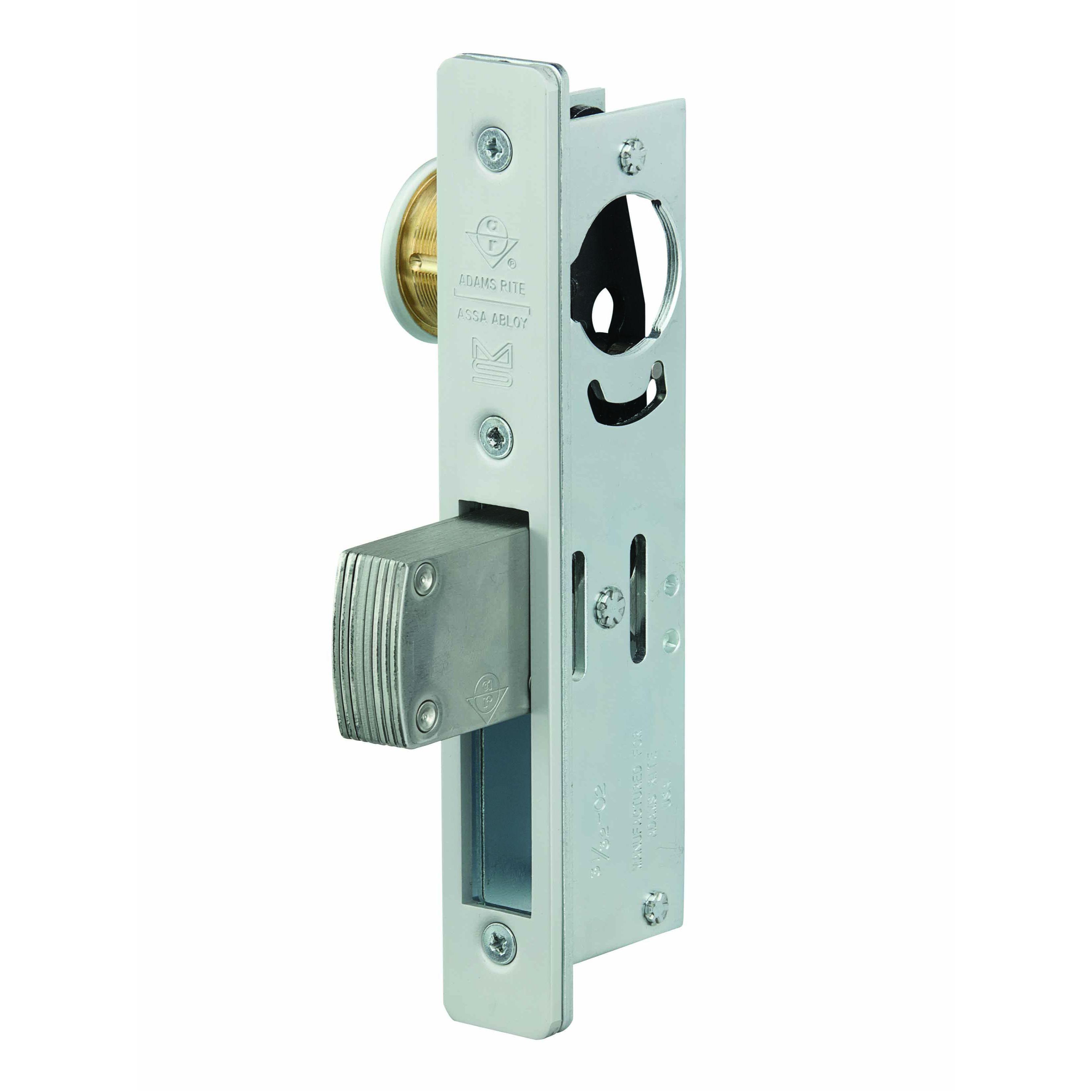

A huge bolt of laminated stainless steel, nearly 3" long, activated by an uncomplicated pivot mechanism, has made the basic MS1850S Series MS® Deadlock the standard of the narrow stile aluminum door industry. The length of this bolt provides maximum security for a single leaf door, even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be. The MS1850S-X5X Series MS® Deadlock answers the security need of sliding narrow stile aluminum doors in commercial, industrial, and institutional buildings. The locking mechanism is identical to the MS1850S Series MS Deadlock, except that the massive laminated bolt is provided in a hook shape to resist the parting motion of sliding door and jamb. The over-center maximum security (MS) locking action assures that forced entry attempts to pry the door in any direction, up, down, or sideways will be defeated.

OPERATION

360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts cylinder from either or both sides.

FEATURES

• Finishes: Available in 3 finishes
• Handing: Non-Handed
• Case: Steel with corrosion-resistant plating.
• Straight Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type “super” hacksaws.

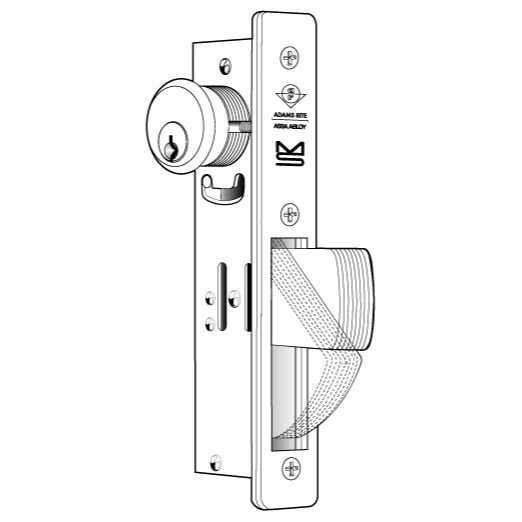

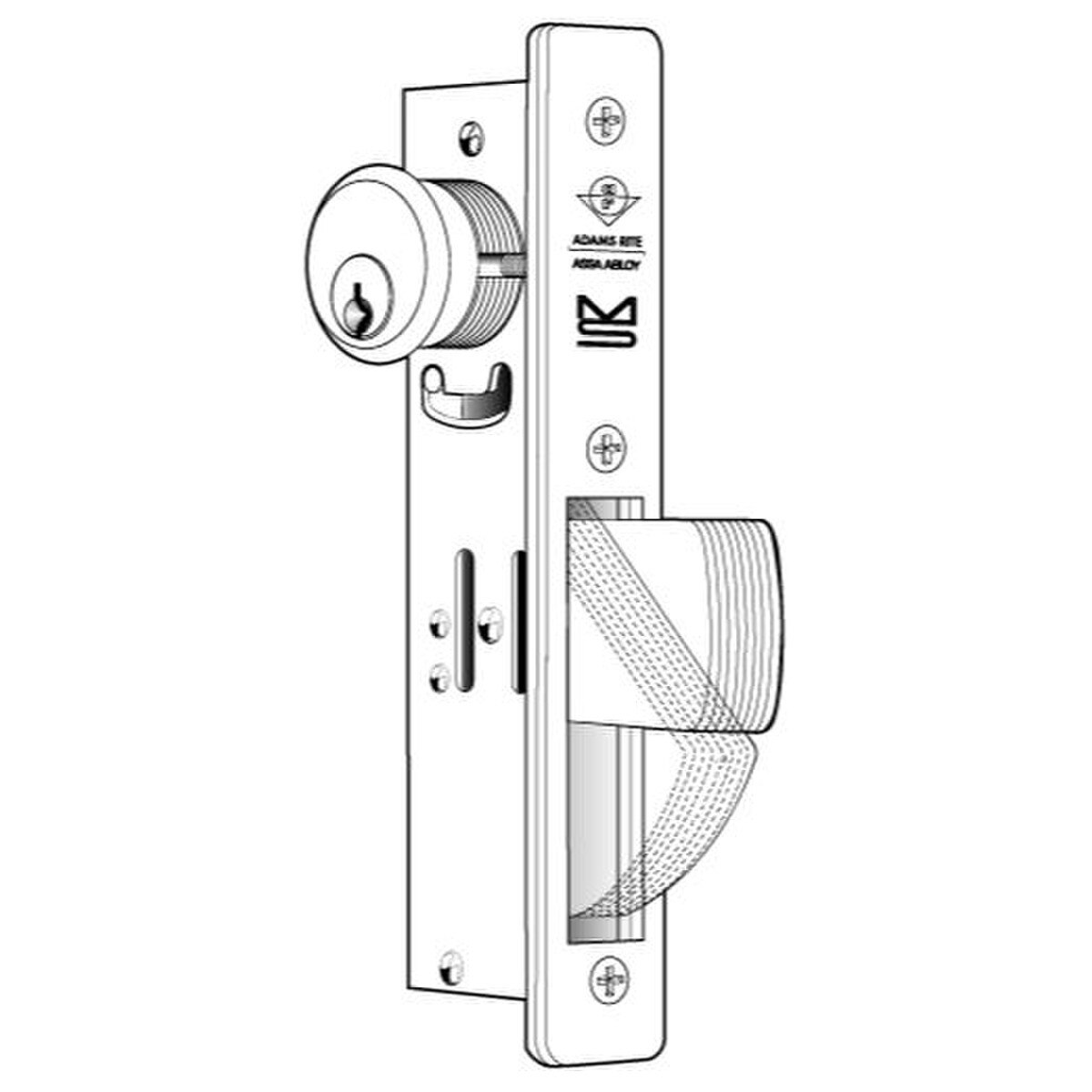

• Hook Bolt: Eight-ply laminated stainless steel. Hook shaped bolt repels pry bar attempts to “spread” the door from its jamb or lift it off its track
• Standard Package: Individually boxed with faceplate and mounting screws. Strike plates, cylinders and/or thumbturns available separately
• Shipping weight: 1-1/2 lbs (0.68 kg).
• Cylinder: Standard 1" length, 1-5/32" diameter mortise cylinder with MS® cam

DIMENSIONS

• Cylinder Backset: 7/8" (22.2 mm), 31/32" (24.6 mm), 1-1/8" (28.6 mm), or 1-1/2" (38.1 mm).
• Case: 1" x 6" x depth (25.4 mm x 152.4 mm x depth) Depth varies by backset.
• Standard Straight Bolt: 5/8" x 1-3/8" x 2-7/8" (15.9 mm x 34.9 mm x 73.0 mm) with 1-3/8" (34.9 mm) throw.
• Standard Hook Bolt: 5/8" x 1-3/8" (15.9 mm x 34.9 mm) with 13/16"" (20.6 mm) throw.
• Faceplate: 1" x 6-7/8" (25.4 mm x 174.6 mm)

CUT SHEETS

Adams Rite MS1850S, MS1850S-X5X Catalog Page

TEMPLATES

Adams Rite MS1850S, MS1850S-X5X Installation Instructions & Templates

Adams Rite MS1850S Blank Faceplate Kit Tech Memo

CERTIFICATIONS

• ANSI/BHMA A156.3-2014 Grade 1 certified
• ANSI/UL 305
• ANSI/UL 10C (fire rated only)
