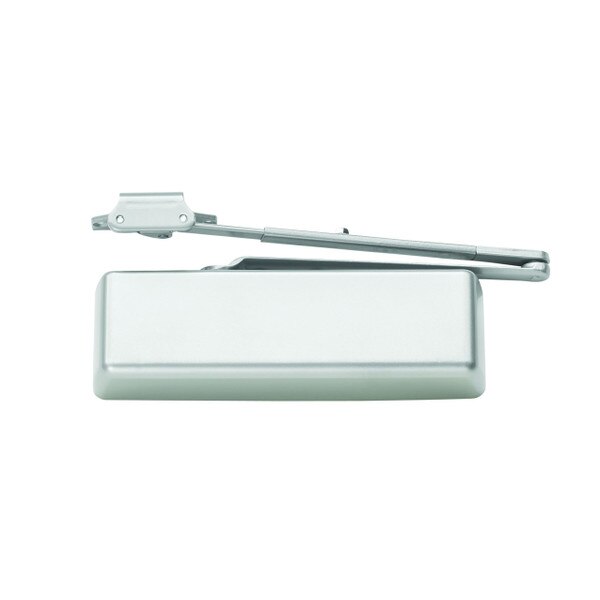

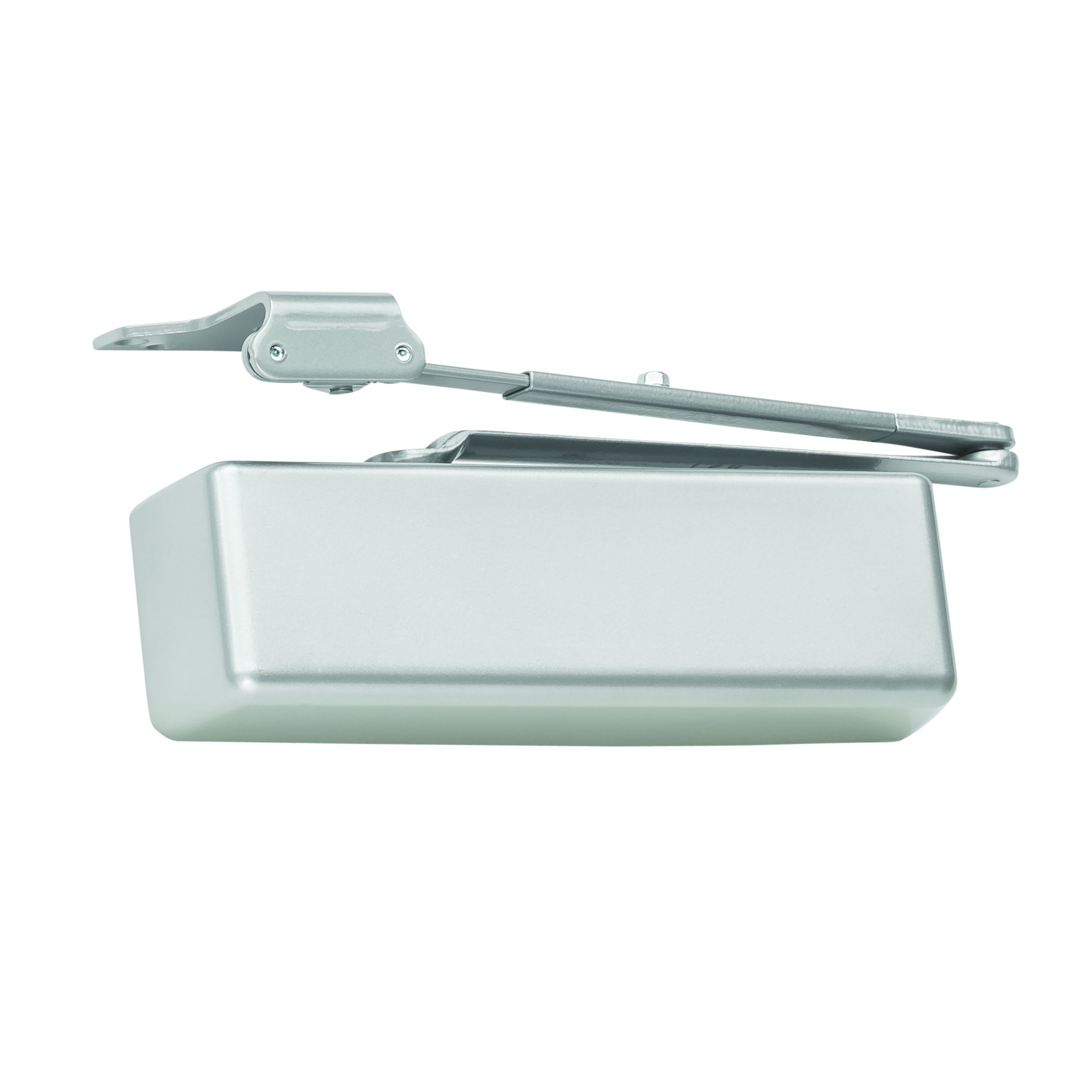

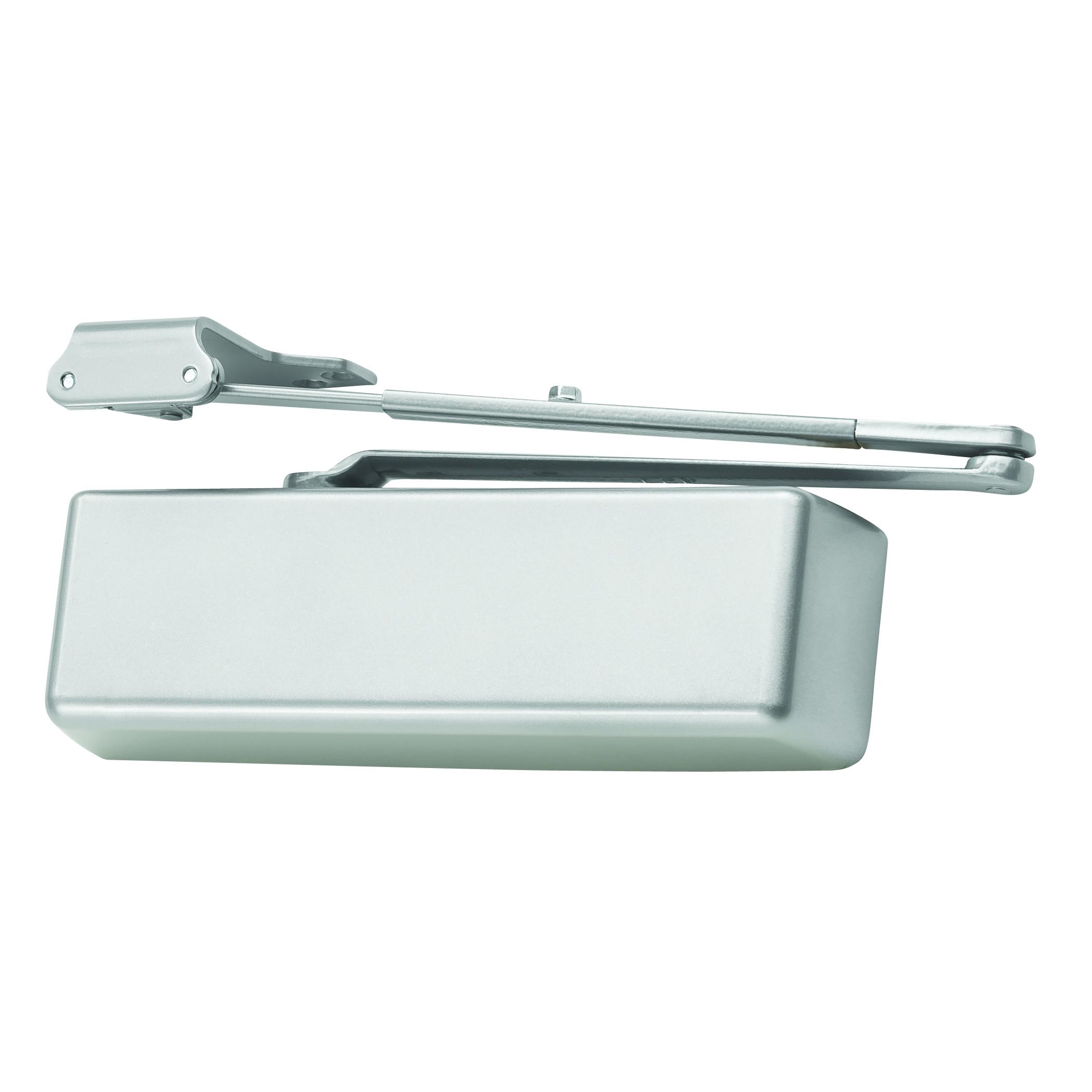

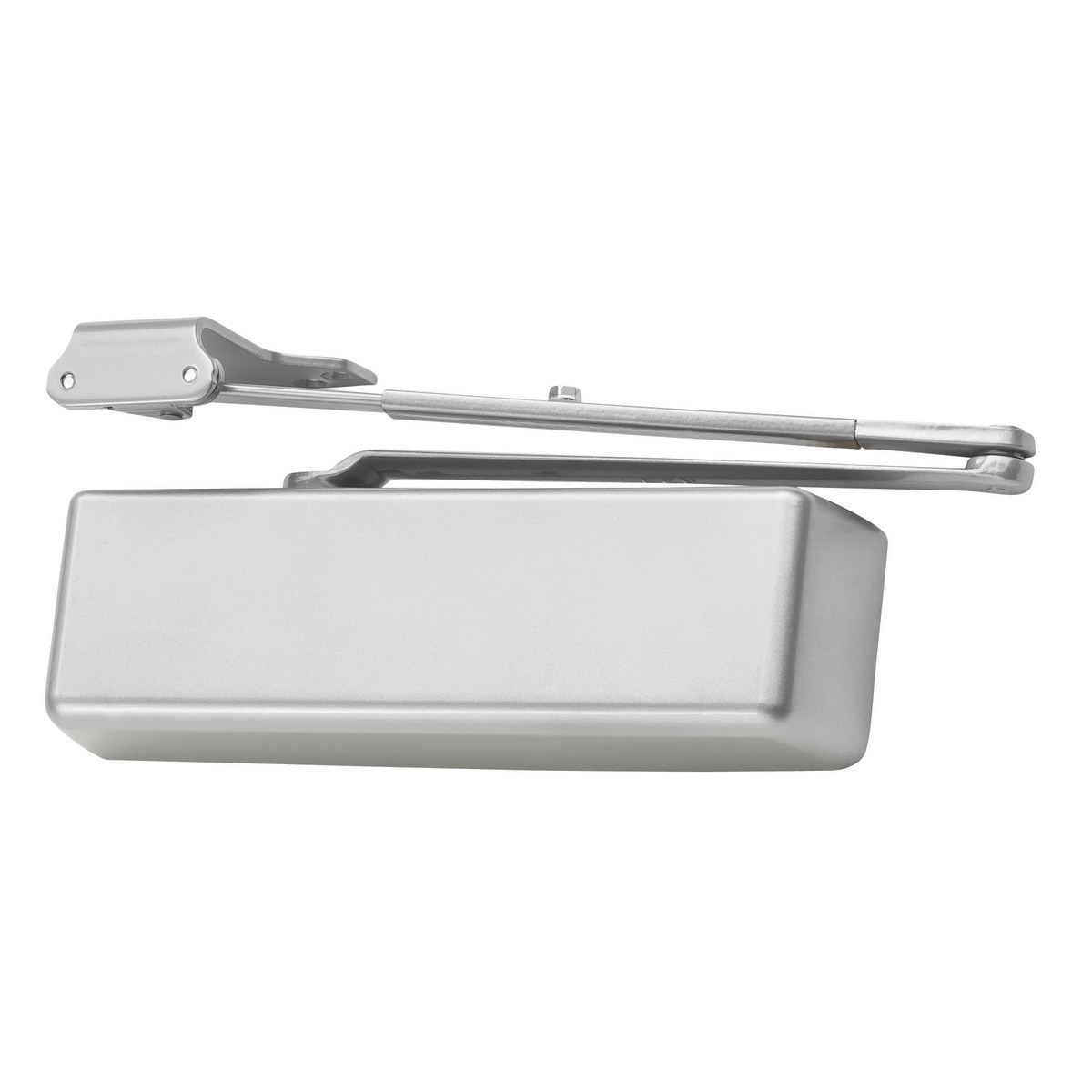

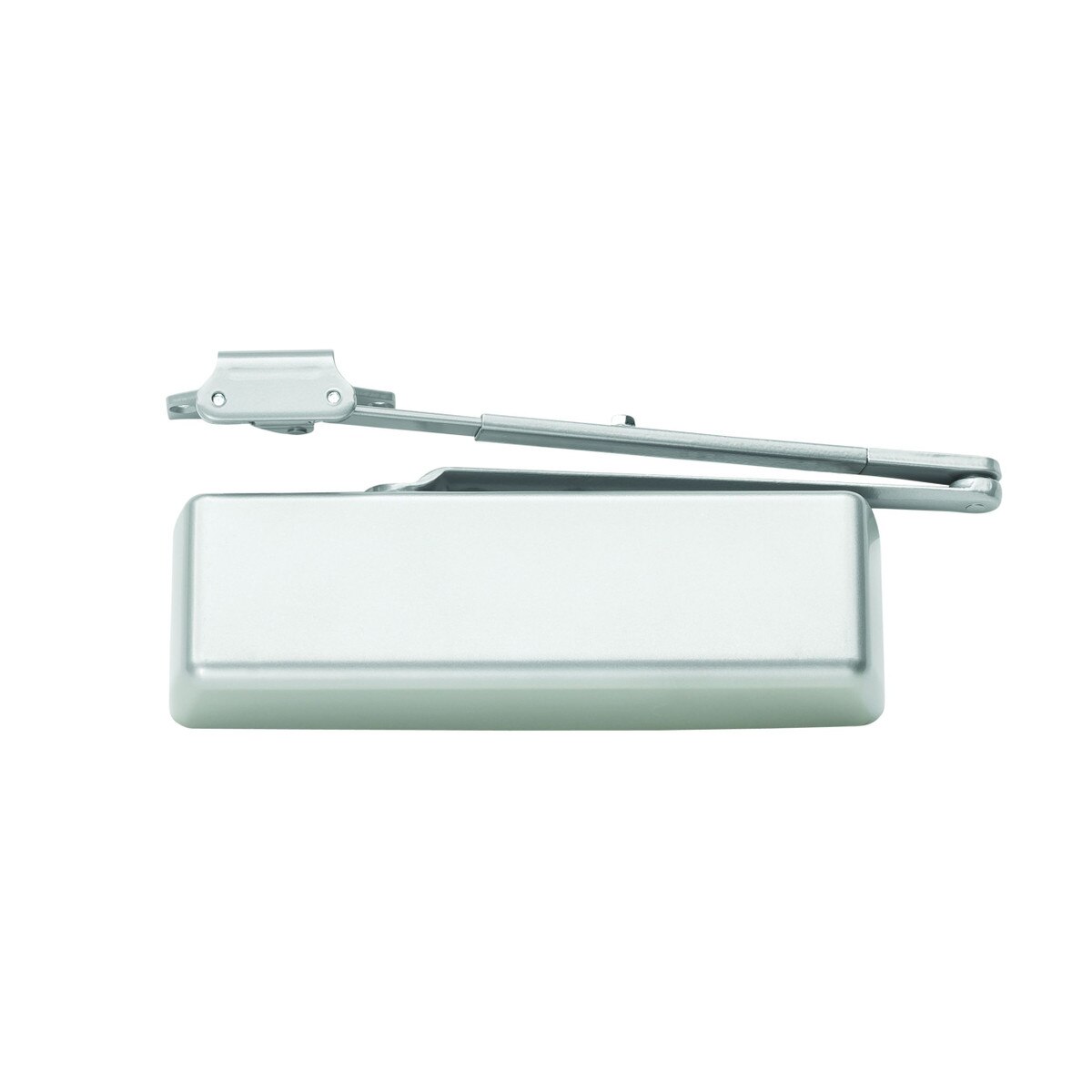

4040XP Series Closer
The 4040XP Series is LCN’s most popular door closer—and for good reason. This durable non-handed, surface-mounted heavy-duty closer, is designed for the most demanding high-use-and abuse applications as well as for easy installation and maintenance.
FEATURES
- Patented positive stop
- Patented regulation valve indicators
- Independent speed adjustments
- QR code for instructions and support
- Size: Adjustable Spring Size 1-6, includes LCN Green Dial
- Body Material: Cast Iron
- Cover: Plastic Cover (PC) Standard, unless specified otherwise
- Bearing: Full Complement
- Pinion Journal: Double Heat Treated
- Fluid: All Weather Liquid X Fluid
- Templating: Peel-n-Stick Template
- Mounting: Depending on arm selection, Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side)
- Fasteners: Self Reaming and Tapping Screws (SRT) Standard, unless specified otherwise
DIMENSIONS
- Exterior Door Width: 24" to 48"
- Interior Door Width: 24" to 60"
- Piston Diameter: 1 1/2"
- Pinion Journal Diameter: 11/16"
- Mounting Hole Pattern: 2 1/4" x 5"
CUT SHEETS
LCN 4000 Series Surface Mounted Closers Catalog
TEMPLATES
LCN Closers and Auto Operators Templates and Instructions Index
CERTIFICATIONS
- Meets ADA requirements
- UL and cUL listed for self-closing doors without hold-open
- Tested and certified under ANSI/BHMA A156.4 Grade 1
CYLINDER OPTIONS
| Cast Iron Cylinder Assembly (CYL) | Standard Cylinder Assembly |
| Delay Action Cylinder (CYLDEL) | Cylinder used for delayed action closing |
ARM TYPE OPTIONS

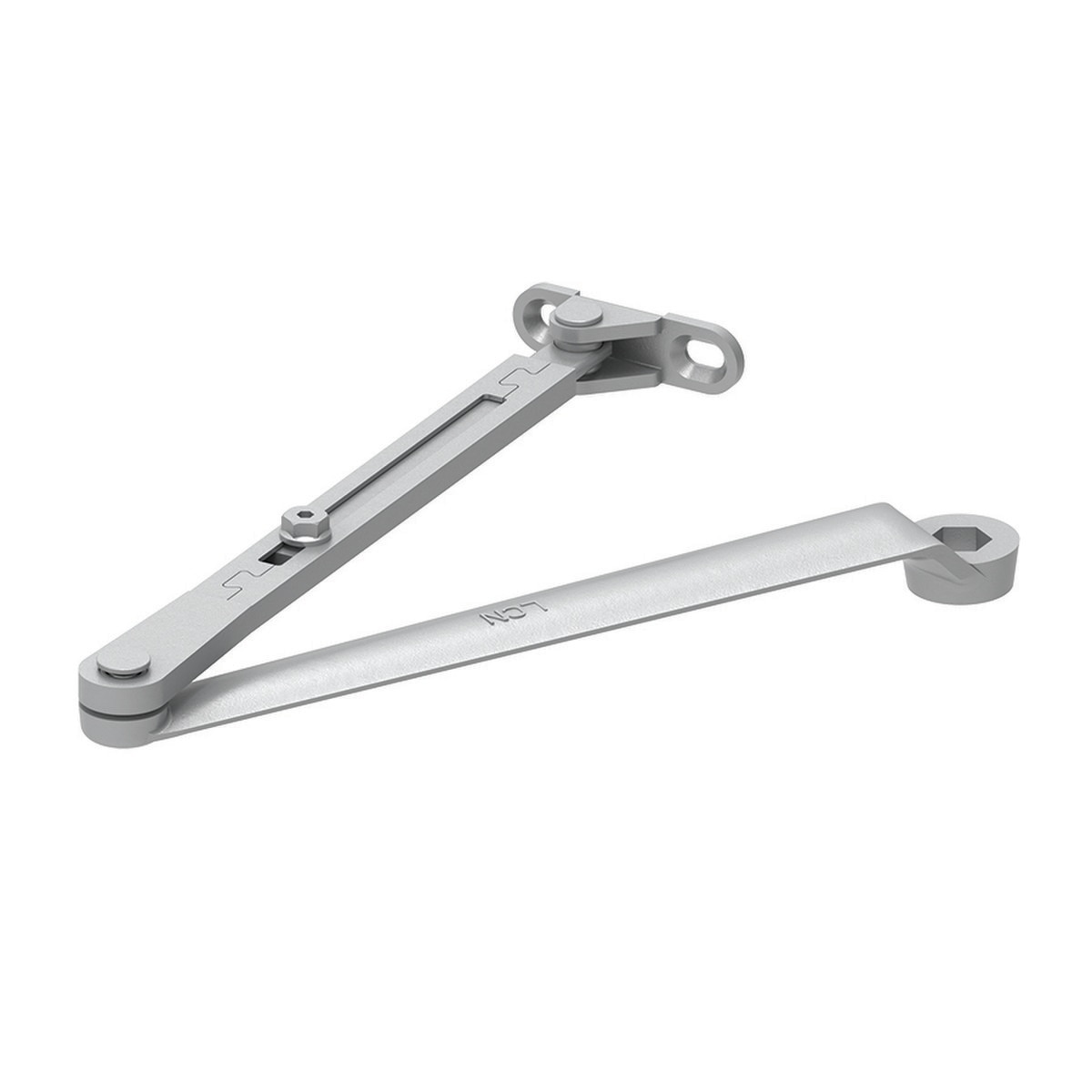

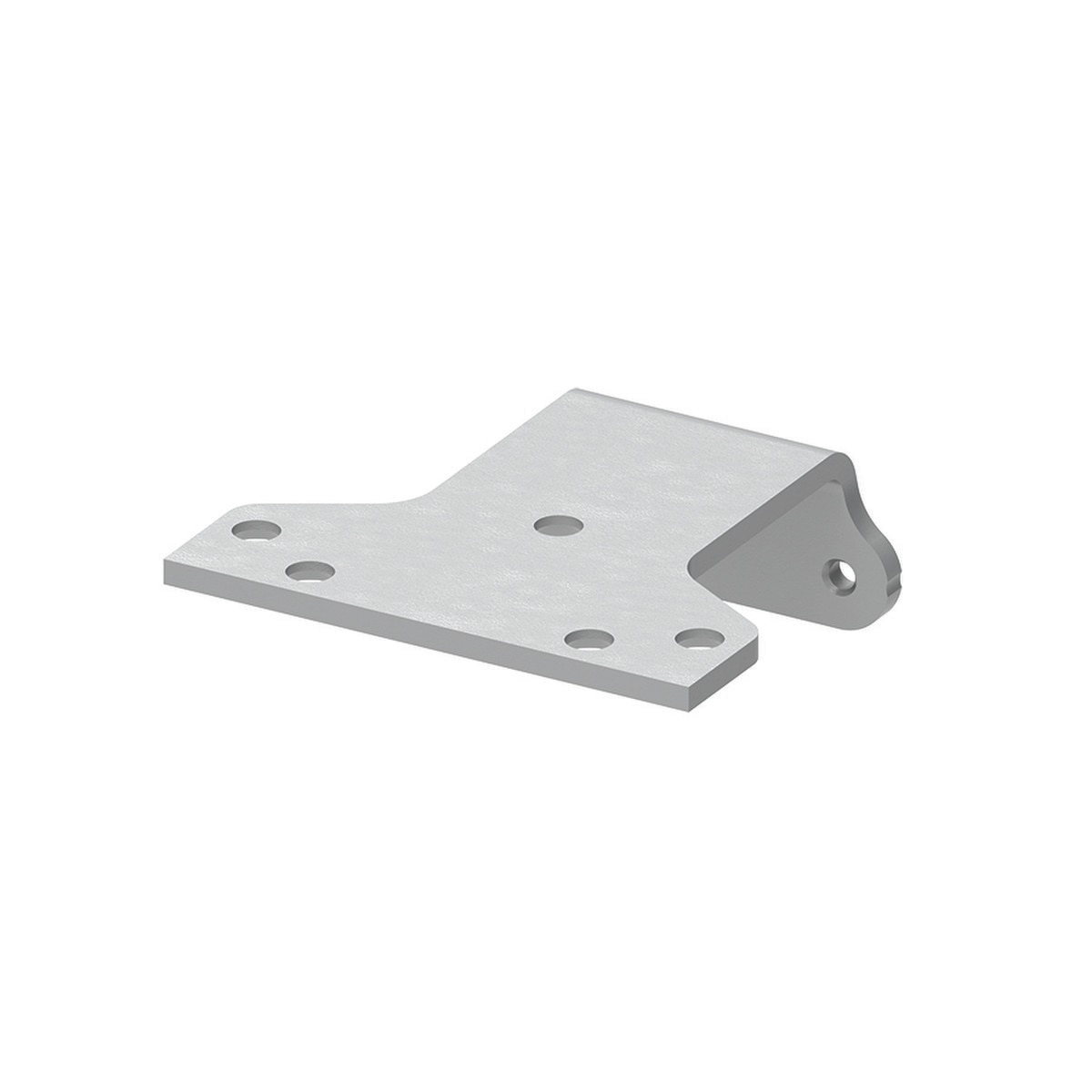

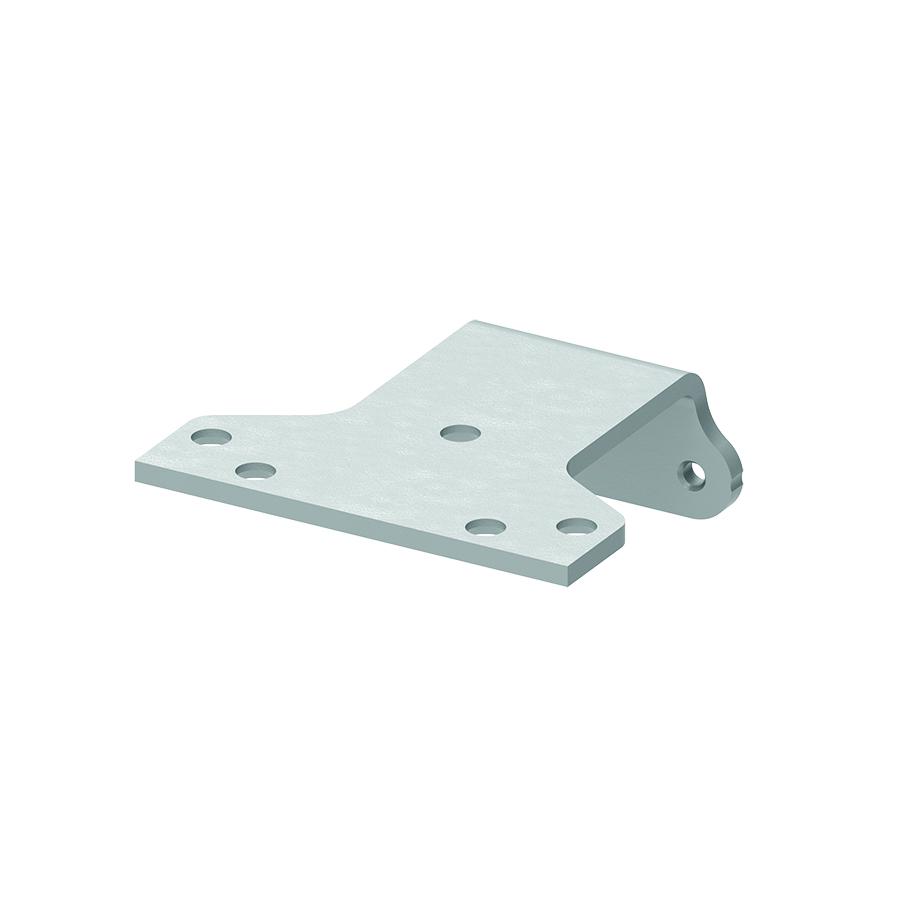

| Regular Arm (REGARM) | Mounts Hinge Side (Pull Side) and Top Jamb (Push Side) |
| Regular Arm/62PA Parallel Arm Bracket (RWPA) | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe, 4040XP-62PA required for parallel arm mounting |
| Regular Arm/62A Auxiliary Shoe (RW62A) | Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Requires a top rail of 7" (178mm) Includes auxillary shoe, 4040XP-62A, for parallel arm mounting of regular arm with overhead holder/stop |
| Long Arm (LONG) | Includes long rod and shoe, 4040XP-79LR, for top jamb mount with deep reveals |
| Extra Long Arm (XLONG) | Includes extra long rod and shoe, 4040XP-79ELR, for top jamb mount with deep reveals |
| Hold Open Arm (H) | Provides hold open function adjustable at shoe Mounts Hinge Side (Pull Side) and Top Jamb (Push Side) |
| Hold Open Arm/62PA Parallel Arm Bracket (HWPA) | Provides hold open function adjustable at shoe Mounts Hinge Side (Pull Side), Top Jamb (Push Side), and Parallel Arm (Push Side) Includes PA shoe, 4040XP-62PA, required for parallel arm mounting |
| Hold Open Long Arm (HLONG) | Provides hold open function adjustable at shoe Includes long head and tube, 4040XP-3048L, for top jamb mount with deep reveals |
| Extra Duty Arm (EDA) | Mounts Parallel Arm (Push Side) only Features solid forged steel main and forearm for potentially abusive installations |
| Extra Duty Arm/62G Thick Hub Shoe (EDA62G) | Mounts Parallel Arm (Push Side) only Features solid forged steel main and forearm for potentially abusive installations Includes thick hub shoe, 4040XP-62G, for blade stop clearance |
| Hold Open Extra Duty Arm (HEDA) | Handing required Mounts Parallel Arm (Push Side) only Provides hold open function adjustable at shoe Features solid forged steel main and forearm for potentially abusive installations |
| Hold Open Extra Duty Arm/62G Thick Hub Shoe (HEDA62G) | Handing required Mounts Parallel Arm (Push Side) only Provides hold open function adjustable at shoe Features solid forged steel main and forearm for potentially abusive installations Includes thick hub shoe, 4040XP-62G, for blade stop clearance |
| Cush-n-Stop Arm (CUSH) | Features solid forged steel main arm and forearm with stop in soffit shoe |
| Hold Open Cush-n-Stop Arm (HCUSH) | Provides hold-open function with templated stop/hold open points Handle controls hold open function |
| Spring Cush-n-Stop Arm (SCUSH) | For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe |
| Spring Hold Open Cush-n-Stop Arm (SHCUSH) | For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe Handle controls hold open function |
FINISH OPTIONS
| 616/US11 | Satin Bronze, Blackened, Satin Relieved, Plated |
| 622/US19 | Flat Black Powder Coated |
| 632/US3 | Bright Brass Plated |
| 633/US4 | Satin Brass Plated |
| 639/US10 | Satin Bronze Plated |
| 646/US15 | Satin Nickel Plated |
| 651/US26 | Bright Chrome Plated |
| 652/US26D | Satin Chrome Plated |
| 689 | Aluminum Powder Coated |
| 690 | Statuary Bronze Powder Coated |
| 691 | Light Bronze Powder Coated |
| 693 | Gloss Black Powder Coated |
| 695 | Dark Bronze Powder Coated |
| 696 | Brass Powder Coated |
| SRI | Special Rust Inhibitor for Powder Coat Finishes |
COVER OPTIONS
| PC | Plastic Cover - Standard |
| MC | Metal Cover - Handing Required |
FASTENER OPTIONS
| SRT | Self Reaming and Tapping Screws - Standard |
| TBSRT | Through Bolt Self Reaming and Tapping Screws - 1-3/4" Door Thickness only |
| WMS | Wood and Machine Screws |
| TBWMS | Through Bolt Wood and Machine Screws - 1-3/4" Door Thickness only |
| TORX | Torx Machine Screws |
| TBTRX | Through Bolt and Torx Machine Screws - 1-3/4" Door Thickness only |
