Von Duprin

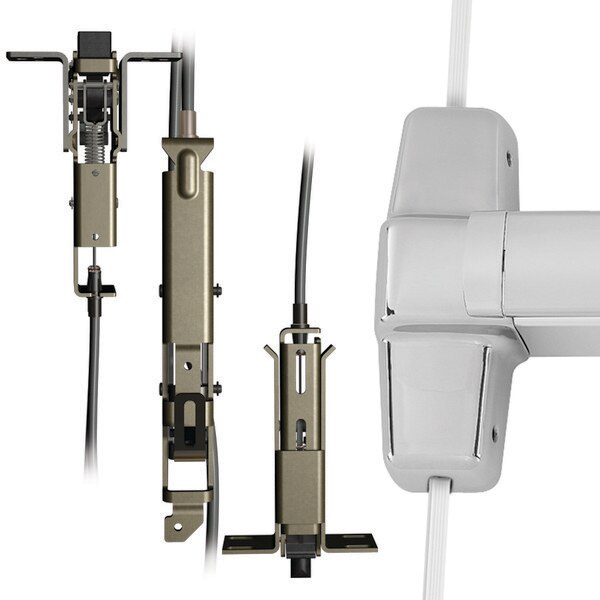

9949 Series Concealed Vertical Cable Exit Device


The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others.


FEATURES


  • Mechanism Case Design: Grooved (99)
  • Device Type: 49 - Concealed Vertical Cable (CVC)
  • Field Selectable Functions: Device ships EO/DT/NL; For TP, K or L remove NL drive screw from device
  • Dogging: Hex Key Dogging, standard on panic exit devices
  • Latch Bolt: Deadlocking anti-friction top and bottom bolt. "U" shaped top latch with greater than 90-degree bolt-to-strike engagement provides greater strength and deadlocking without the need for an auxiliary latch or unsightly latch release hardware
  • Strikes: Includes 249 top strike and 349 bottom strike. Includes 338 Filler Plate for retrofitting.
  • Fasteners: Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors.
  • Vertical Cables: 7/32" (6 mm) Diameter stainless steel cables designed to maintain positive latching even if alignment is not perfect due to changing door conditions.
  • Duty: Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
  • Modular Design: A variety of field-configurable options and retrofit kits available to keep up with changing technology and meet a facility's changing needs
  • Maintenance Requirements: Significantly less maintenance than traditional vertical rods, the entire assembly can be removed and reinstalled while door is hanging in a matter of minutes. Should door sag, bottom latch can be repositioned in minutes by a single person without removing the door from frame. Frequent adjustment is greatly reduced

DIMENSIONS


  • Device Size: 3' Device, Standard, for 2'-4" to 3'-0" Doors. 2' Device for 2'-0" Door and 4' Device for 2'-10" to 4'-0" Door available
  • Door Thickness: 1-3/4" Standard, Optional 2" (DT2), and 2-1/4" (DT2-1/4) door thicknesses available
  • Default Nominal Door Opening Height: 82" - 96". See catalog for top and bottom cable part numbers for door opening height if other than the default.
  • Device Centerline from Finished Floor: 39 5⁄8" (1006 mm) Standard
  • Center Case: 8" x 2 3⁄4" x 2 3⁄8" (203 mm x 70 mm x 60 mm)
  • Mechanism Case: 2 1⁄4" x 2 1⁄4" (57 mm x 57 mm)
  • Push Bar Neutral Projection: 3 13⁄16" (97 mm)
  • Push Bar Depressed Projection: 3 1⁄16" (78 mm)
  • Top and Bottom Latch Case: 5 13/16" x 1 1/4" x 1 7/16" (147 mm x 32 mm x 37 mm)
  • Latch Bolt Throw: 1/2" (13 mm)
  • Door Undercut: 3/4" (19 mm) maximum. Spacer block kit needed for 3⁄4" undercut.


Alarm Kit (ALK) Unauthorized opening triggers horn
Includes RX switch and 9 volt battery
Allegion Connect (CON) Includes Allegion Connect wire harnesses with connectors on both ends or crimped pins on one end
Chexit (CX) Delayed Egress
Meets NFPA and IBC requirements for delayed egress
A standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds
Electric Latch Retraction (EL) Enables remote unlatching
Also available with Hex Dogging (HD-EL)
Emergency Secure Lockdown (ESL) Ideal for high-occupancy spaces, such as auditorium-style classrooms with access control
Occupants can turn the thumb turn (or cylinder key), interrupting the power to the QEL motor, and electronically undogging to secure pull side of the door as well as sends a signal to the access control system
The visual indication assures the occupant the exit device has been put into secure lockdown mode.
Latch Bolt Monitoring (LX) Signals use of an opening
LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch condition
2 amp maximum @ 24VDC
Latch Bolt Monitoring - Low Current (LX-LC) Signals use of an opening
LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch condition
Low current (LC) below 50 Milliamps @ 24VDC
Latch Bolt Monitoring - Request to Exit (LX-RX) Signals use of an opening
LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch condition
One RX Switch
2 amp maximum @ 24VDC
Latch Bolt Monitoring - Request to Exit- Low Current (LX-RX-LC) Signals use of an opening
LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch condition
One RX Switch
Low current (LC) below 50 Milliamps @ 24VDC
Quiet Electric Latch Retraction (QEL) Electronic latch retraction with limited operational noise
Request To Exit (RX) Signals use of an opening
One RX Switch
2 amp maximum @ 24VDC
Double Request To Exit (RX2) Signals use of an opening
Two RX Switches
2 amp maximum @ 24VDC
Request To Exit - Low Current (RX-LC) Signals use of an opening
One RX Switch
Low current (LC) below 50 Milliamps @ 24VDC
Signal Switch (SS) Monitors push pad and latch bolt. Used to signal the unauthorized use of an opening.
Includes RSS lettering on push pad and mortise cylinder for alarm bypass.
Equipped with two internal SPDT switches. One switch monitors both the push pad and the latch bolt assembly, making the latch bolt tamper resistant, for positive security. An additional SPDT switch is connected to the 1 1⁄4" (32mm) mortise cylinder with straight cam for alarm “bypass.”
2 amp maximum @ 24VDC


Double Cylinder (-2) Allows users to lock the outside trim from inside the room, while still allowing free egress.
Clear lock/unlock icons provide directional indication to secure opening
Must be ordered with 996-2 lever trim.
Double Cylinder with Security Indicator (-2S1) Provides an at-a-glance verification of the LOCKED/UNLOCKED status of the door from inside of the room.
Allows users to lock the outside trim from inside the room, while still allowing free egress.
Must be ordered with 996-2 lever trim.
Accessible Device (AX) Meets the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) and 2013 California Building Code
Hurricane Device (HH) Wind and Impact - Hurricane Rated
HH33/3547A is furnished with double latch brackets and requires template #10057
Less Bottom Latch (LBL) Removes the bottom cable, latch case, and strike
Drainage/Weep Holes in Mechanism Case (WH) 2' and 3' devices will have 5 holes, 6" spacing
4' device will have 7 holes, 6" spacing


Cylinder Dogging (CD) Replaces the standard hex key dogging
Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included
Chexit Cylinder Dogging (CD-CX) Replaces the standard hex key dogging
For use with Chexit controlled egress device
Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included
Cylinder Dogging Indicator (CI) Red indicator light blinks every 5 seconds when not dogged, visible from over 75 feet away
Designed for battery life over one year
Requires 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included.
Cylinder Dogging with Security Indicator (CDSI) Replaces the standard hex key dogging
Provides an at-a-glance verification of the status of the door from inside of the room
Visible “LOCKED” and “UNLOCKED” indicators show whether the device is undogged or dogged
Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included
Dogging Indicator (DI) Standard Hex Key Dogging
Red indicator light blinks every 5 seconds when not dogged, visible from over 75 feet away
Designed for battery life over one year.
Hex Dogging with Security Indicator (HDSI) Standard hex key dogging
Provides an at-a-glance verification of the status of the door from inside of the room
Visible “LOCKED” and “UNLOCKED” indicators show whether the device is undogged or dogged
Less Dogging (LD) Removes the dogging option
Special Center Case Dogging (SD) Special cylinder dogging in the center case is available for Chexit, EL, QEL, ALK panic devices to allow for mechanical push/pull operation.
Requires 1 1/4" (32mm) mortise cylinder with an inverted straight cam, not included.


Exit Only (EO) Default Trim: None
Dummy Trim (DT) Default Trim: 990DT
Night Latch, Key Retracts (NL) Default Trim: 990NL-R/V
Night Latch, Optional Pull (NL-OP) Default Trim: 110MD/WD
Thumbpiece (TP) Default Trim: 990TP-R/V
Thumbpiece - Blank Escutcheon (TP-BE) Default Trim: 990TP-BE-R/V
Lever - Classroom (L) Default Trim: 996L-R/V
Lever - Blank Escutcheon (L-BE) Passage Function
Default Trim: 996L-BE-R/V
Lever - Dummy Trim (L-DT) Default Trim: 996L-DT-R/V
Lever - Night Latch (L-NL) Default Trim: 996L-NL-R/V
Lever - Key Capture (L-KC) Default Trim: 996L-KC-R/V


Panic Exit Device Certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for panic exit hardware.
Fire Exit Device (-F) Certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware


605 Bright Brass (US3)
606 Satin Brass (US4)
612 Satin Bronze (US10)
613 Satin Bronze-Oil Rubbed (US10B)
622/711 Matte Black/Matte Black, Anodized (315)
625 Bright Chrome (US26)
626 Satin Chrome (US26D)
626AM Satin Chrome Antimicrobial (US26D-AM)
628 Anodized Aluminum (US28)
643E Aged Bronze
710 Duranodic Dark Bronze (313)


LC Less Control
LT Less Trim
696 Series Lever Trim Replaces default trim with 696 Series Trim
697 Series Lever Trim Replaces default trim with 697 Series Trim
