VD-330-313

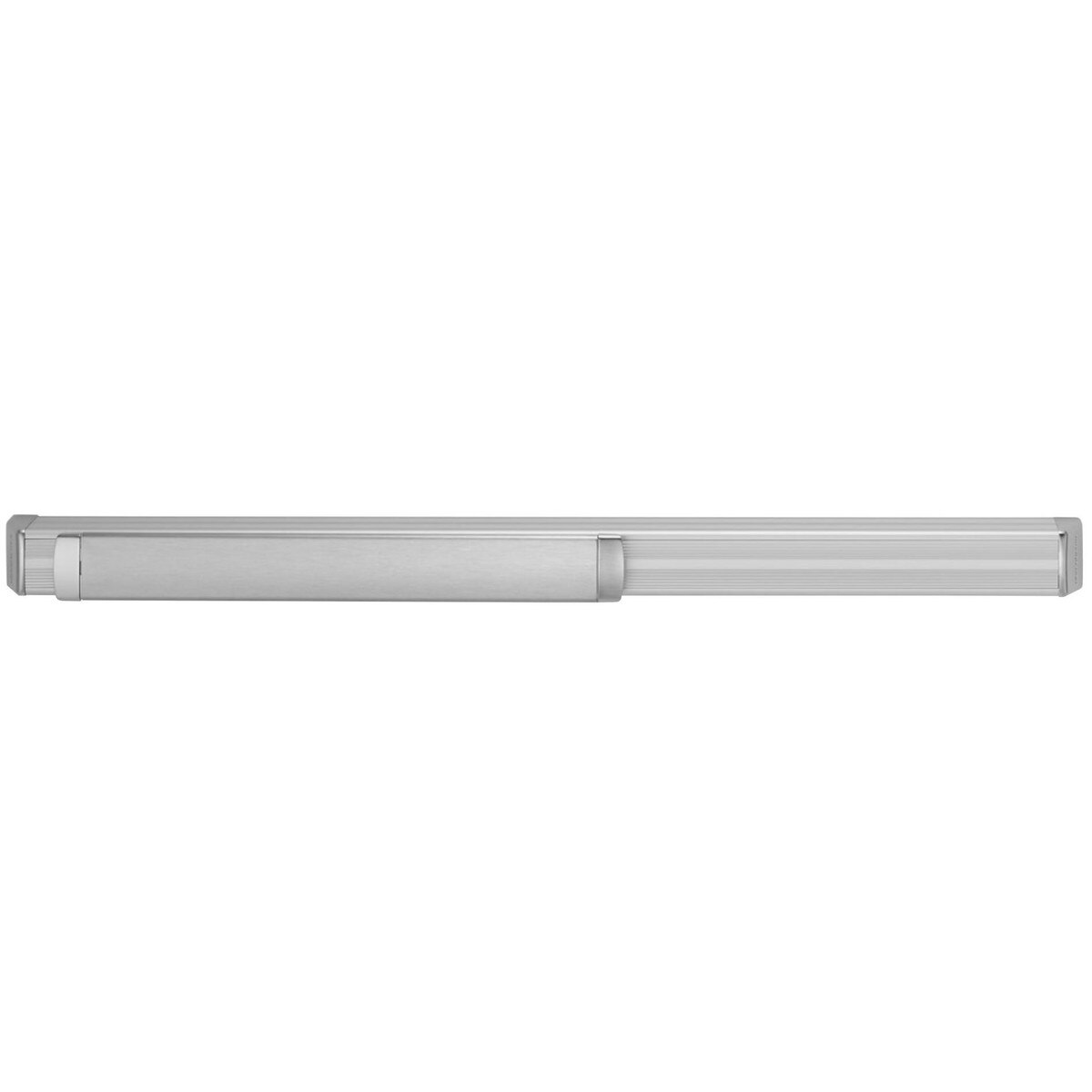

330 Series Dummy Bar Device

The 330 dummy pushpad is designed as a companion unit for all 33A devices. The pushpad is rigid or nonfunctioning. A push/pull operation can be accomplished by using 386DT, 360L-DT, 550DT, 392-6 trim or any Ives pull.

FEATURES

• Fasteners: Includes screw pack for 1 3⁄4" (44 mm) and 2 1⁄4" (57 mm) thick metal or wood doors. #425 SNB furnished standard for end case. #325 SNB furnished standard for EO (exit only device)
• Duty: Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• Modular Design: Allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs

DIMENSIONS

• Device Size: 3' Device, Standard, for 2'-4" to 3'-0" Doors. 4' Device for 2'-10" to 4'-0" Door
• Door Thickness: 1-3/4" Standard, Optional 2" (DT2), and 2-1/4" (DT2-1/4) door thicknesses available.
• Device Centerline from Finished Floor: 39 13⁄16" (1011 mm)
• Device Centerline from Finished Floor with Mullion: 39 11⁄16" (1008 mm)
• Center Case: 8 3/16" x 1 9⁄16" x 2 13⁄32" (208 mm x 40 mm x 62 mm)

CUT SHEETS

Von Duprin 33A-35A Series Catalog

TEMPLATES

Von Duprin 33/35A Series Rim Exit Device Installation Instructions

Von Duprin 33/35 Series Exit Device Wood Door Applications Template Index

Von Duprin 33/35 Series Exit Device Metal Door Applications Template Index

CERTIFICATIONS

• ANSI/BHMA A156.3-2014 Grade 1 certified
• ANSI/UL 305
• ANSI/UL 10C (fire rated only)
