RW-BF15847-US32D

On Sale
SKU: RW-BF15847-US32D
List Price: $381.00
Manufacturer: Rockwood Mfg
Category: Push Plates And Pulls
Finish Code: US32D
Measurement: 12"

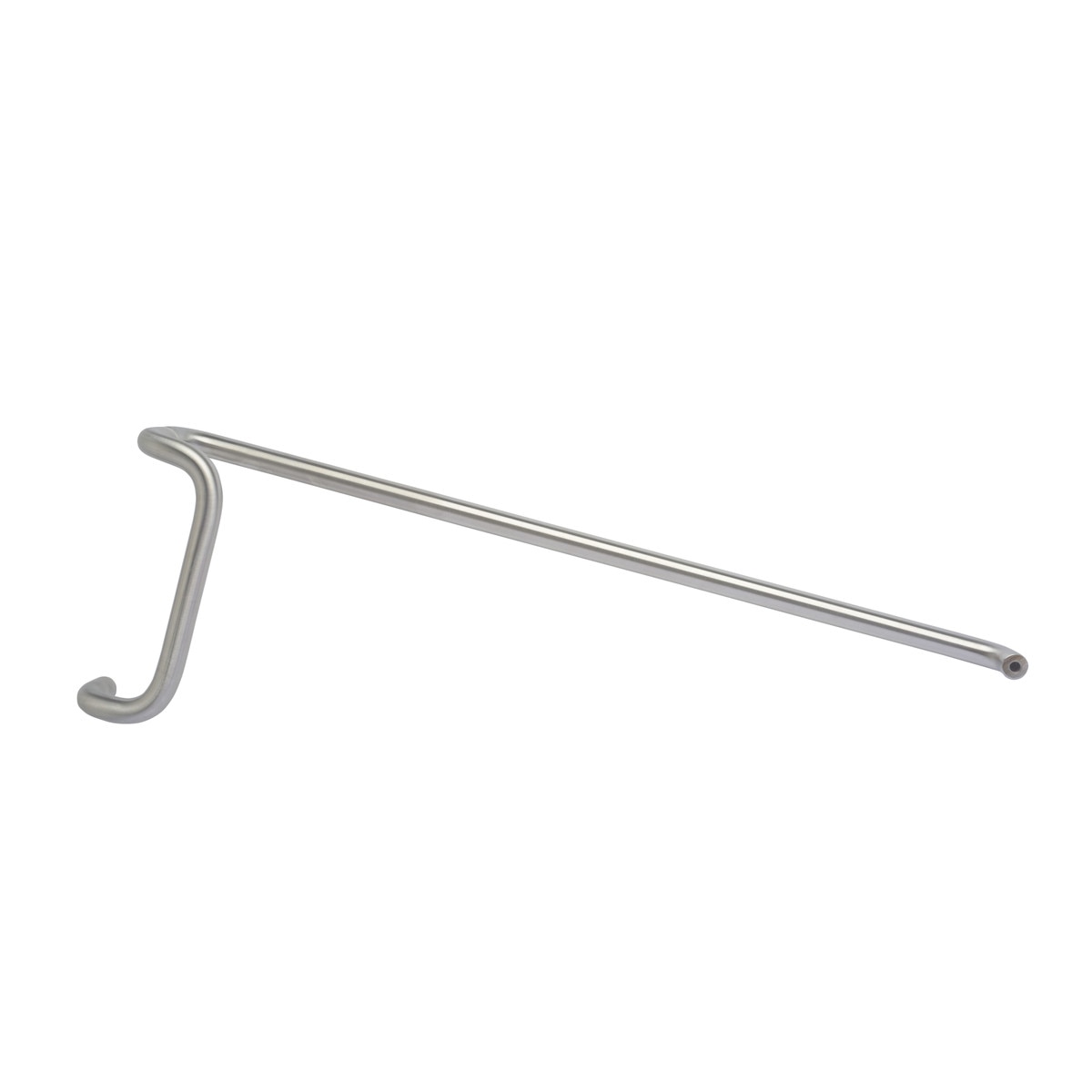

Description: 12" CTC OFFSET PULL, WITH 33" PUSH BAR, SS FINISH

Available

Back

Material: Aluminum, Brass, Bronze, or Stainless Steel

ANSI 156.6: J505

Mountings:

  • Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
  • Metal:  T4 Back to Back and Concealed; Pull Free End = 17, Push Free End = 17, Common End = 16
  • Wood:  T5 Back to Back and Concealed; Pull Free End = 8, Push Free End = 8, Common End = 5
  • Metal & Wood:  T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
  • Glass:  T2 Back to Back and Thru Bolt; Pull Free End = 15, Push Free End = 15; Common End = 13
  • T3 is the standard mounting method for Metal and Wood Doors. (
Back
Product Data Sheet
