IM-S812-DU

SKU: IM-S812-DU
List Price: $51.00
Manufacturer: Sentinel Hardware
Category: Pivots
Finish Code: DU (DARK BRONZE)
Weight: 0.9
Description: 812NHDU OFFSET PIVOT 1/8 NHAND DURO

Sentinel Hardware

In Stock and Ready to Ship

Available: 23

Details

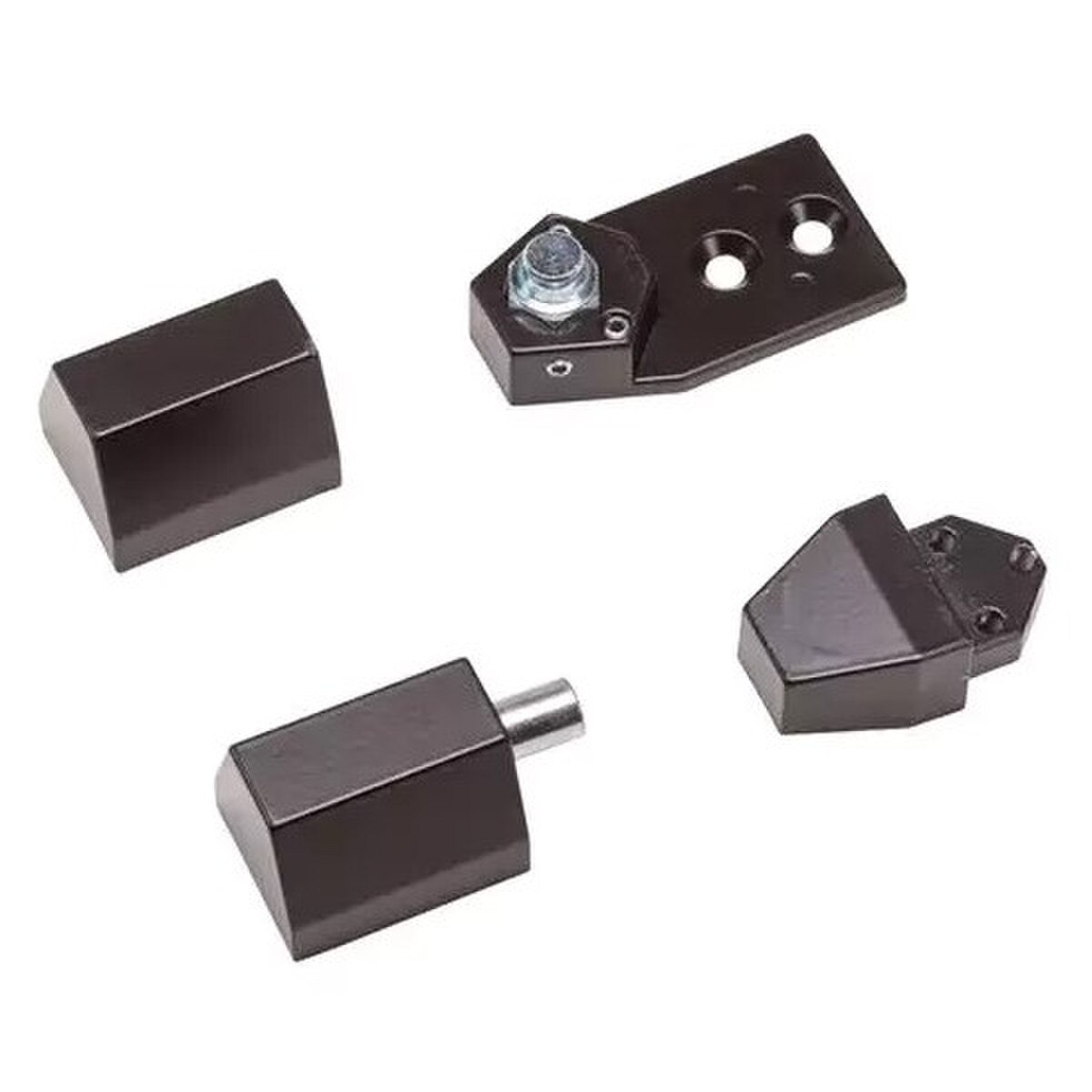

S810/812 Arch/VistaWall Style Offset Pivots


Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace Arch/VistaWall style storefront pivots. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install.

FEATURES


  • Handing: All pivots are handed, specify LH or RH
  • Finish: Available in Aluminum (AL), Duronotic Dark Bronze (DU), and White (WH)
  • Body Material: Weather Resistant Aluminum Case Construction
  • Design: Full Race Ball Bearing provides smooth operation on bottom pivot door portion
  • No Sag: Entire weight of doors rests on floor mounted pivot portion
  • Easily Replaceable: Removable in unlocked position, yet completely tamper proof

DIMENSIONS


  • Size: 3/4"
  • Maximum Door Weight: 125 lbs
  • Vertical Adjustment: 1/8"

Resources

Sentinel Offset Pivots Data Sheet
