FC-W18-DAN-626

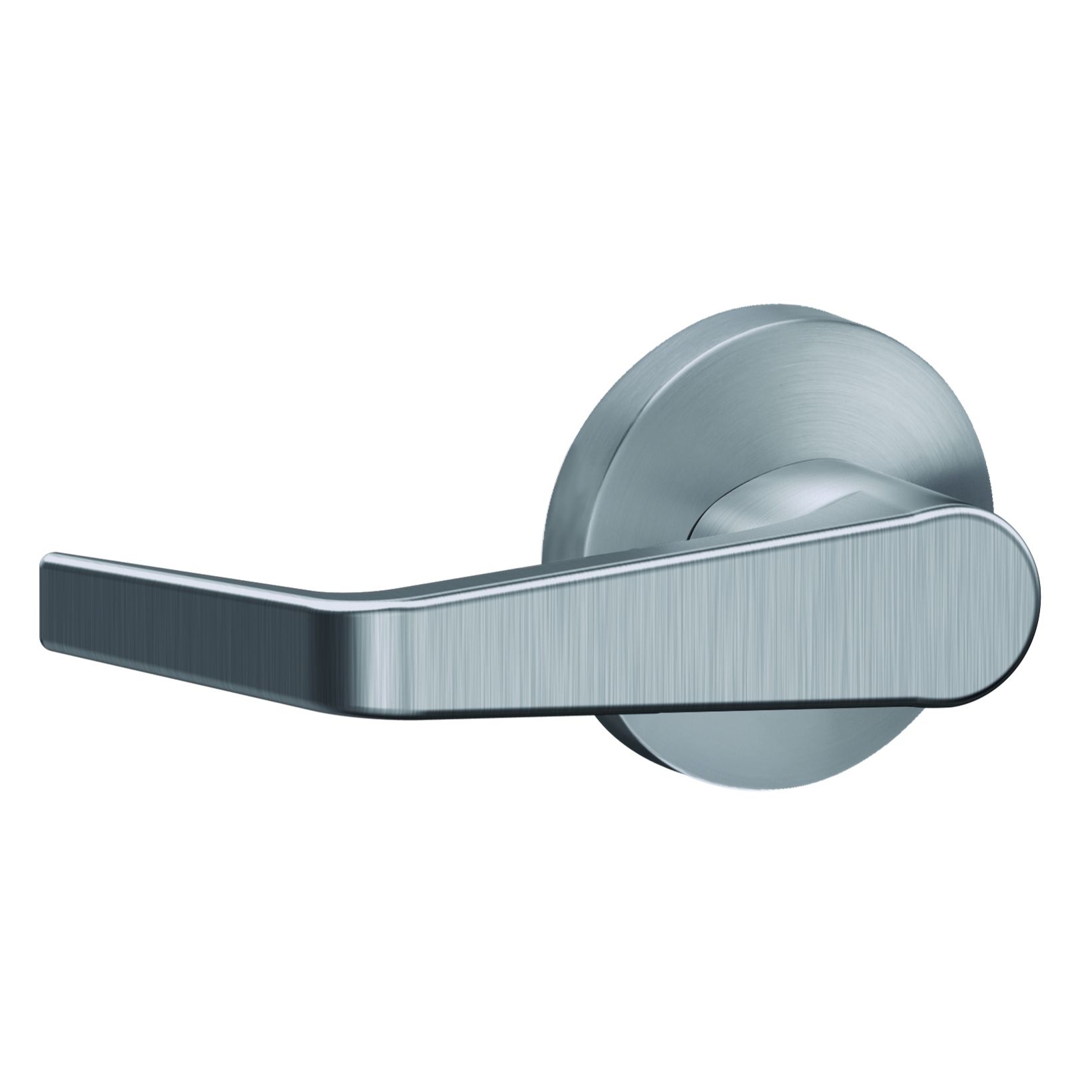

W Series Cylindrical Lockset
Designed to offer more functions and finish options than other grade 2 locks, W Series has what you need at the right price. With seven popular lever styles along with two knob styles and your choice of rose diameters (large and small), Falcon W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Falcon conventional cylinders are available in all Falcon conventional key sections as well as Schlage C keyway.
FEATURES
- Functions: 11 commercial functions available
- Finishes: 8 options available
- Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel
- Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly
- Handing: Locks are non-handed
- Conventional Cylinders: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional
- SFIC Cylinders: 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders available
- Material: Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze
- Keys: Two nickel silver keys furnished standard
- Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on SFIC cylinders. Falcon, Schlage and many Best and Arrow keyways available
- Levers: 7 styles. Pressure-cast zinc (solid levers-no-inserts) finished to match mating parts
- Knobs: 2 styles. Pressure-cast zinc (solid levers-no-inserts) finished to match mating parts
- Roses: Heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted
- Latches: Square-Corner. Made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors
- Strikes: 4 7/8" x 1 1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
DIMENSIONS
- Rose Size: Standard rose diameter 3 3⁄8". Small rose diameter 2 9⁄16".
- Door Thickness: 1 3⁄8" to 1 3⁄4" standard.
- Backset: Standard rose - 2 3⁄4" backset; Small rose - 2 3⁄8" backset.
- Bolt Projection: 1/2"
- Latch Face: 1 1/8" x 2 1/4" at 2 3⁄4" backset; 1" x 2 1/4" latch face at 2 3⁄8" backset
- Strike: 4 7/8" x 1 1/4"
CUT SHEETS
TEMPLATES
Falcon W-Series with Levers Installation Instructions
Falcon W-Series with Knobs Installation Instructions
Falcon W Small Rose Installation Instructions
Falcon W Series Templates Index
CERTIFICATIONS
- ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL: 3-hour A label
| Function | ANSI # | SFIC | Name | Description |
|---|---|---|---|---|
| 101 | F75 | No | Passage/Closet Latch | Latch bolt operated by levers/knobs from either side at all times. |
| 161 | F111 | No | Communicating/Exit Set | Latch bolt operated by inside lever/knob. Non-removable blank plate outside. Inside lever/knob always free for immediate egress. |
| 201 | F77 | No | Patio Lock | Latch bolt operated by levers. Outside lever is locked by push button from inside. Rotating inside lever or closing door releases button and unlocks outside lever. Inside lever always free for immediate egress. |
| 301 | F76 | No | Bath/Bedroom Privacy Lock | Latch bolt operated by levers/knobs from either side. Outside locked by push button on inside lever/knob. Rotating inside lever/knob or closing door releases button. Emergency release tool used on outside unlocks door. Inside lever/knob always free for immediate egress. |
| 501 | F82 | Yes | Entry Lock | Latch bolt operated by levers/knobs from either side. Push button locking. Button on inside locks outside lever/knob until unlocked by key outside or by rotating inside lever/knob. Emergency release tool used on outside unlocks door. Inside lever/knob always free for immediate egress. Function note: This lock will stay locked when the door is closed. If you want your door to unlock when it closes, please purchase the 571 function. |
| 511 | F109 | Yes | Entry/Office Lock | Turn/push button locking: Pushing and turning button locks outside lever/knob requiring use of key until button is manually unlocked. Push button locking: Pushing button locks outside lever/knob until unlocked by key or by rotating inside lever. Inside lever always free for immediate egress. Emergency release tool used on outside unlocks door. Latch bolt operated by levers/knobs. Key enables only unlocking from outside. |
| 561 | F84 | Yes | Classroom Lock | Latch bolt operated by levers/knobs. Outside lever is locked by key in outside lever/knob. Inside lever always free for immediate egress. |
| 571 | F90 | Yes | Dormitory/Corridor Lock | Latch bolt operated by levers/knobs except when locked by push button from inside. Key in outside lever/knob unlocks lever/knob and releases button. Closing door releases push button. Inside always free for immediate egress. Function note: This lock will unlock when the door is closed. If you want your door to remain locked when it closes, please purchase the 501 function. |
| 581 | F86 | Yes | Storeroom Lock | Latch bolt operated by lever/knob inside or key outside. Outside lever/knob is inoperable. Inside always free for immediate egress. |
| 711 | n/a | No | Apartment Entrance Lock | Latch bolt operated by levers/knobs. Turn/push button locking: Pushing and turning button locks outside lever/knob requiring use of a key for unlocking the door until button is manually unlocked. Push button locking: Pushing button locks outside lever until unlocked by key, by rotating inside lever, or by closing the door. Inside always free for immediate egress. |
| 12 | n/a | No | Single Dummy Trim | Surface-mounted rigid lever/knob. |
| 18 | n/a | No | Double Dummy Trim | Surface-mounted rigid lever/knob. |
| B | Less SFIC |
| BB | Less SFIC, Best style |
| BDC | SFIC disposable construction core |
| G | 6-Pin SFIC, Falcon style |
| G7 | 7-Pin SFIC, Falcon style |
| H | SFIC refundable construction core |
| L | Less 6-pin conventional cylinder |
| P | 6-pin conventional cylinder (pinned to 5) |
| P6 | 6-pin conventional cylinder (pinned to 6) |
| P7 | 7-pin conventional cylinder (pinned to 7) |
| CP6 | 6-pin conventional cylinder, Schlage C keyway |
LEVERS
KNOBS
ROSES
| 605/US3 | Bright Brass |
| 606/US4 | Satin Brass |
| 613/US10B | Oil Rubbed Bronze |
| 619/US15 | Satin Nickel |
| 622/US19 | Matte Black Lever options only |
| 625/US26 | Bright Chrome |
| 626/US26D | Satin Chrome |
| 643e/US11 | Aged Bronze |
