AR-4901-02

SKU: AR-4901-02
List Price: $27.25
Manufacturer: Adams Rite
Category: Storefront Locks And Latches
Finish Code: 630/US32D
Description: DOUBLE RADIUS BOX STRIKE FOR LATCH BOLT, 630 FINISH

In Stock and Ready to Ship

Available: 21

Back

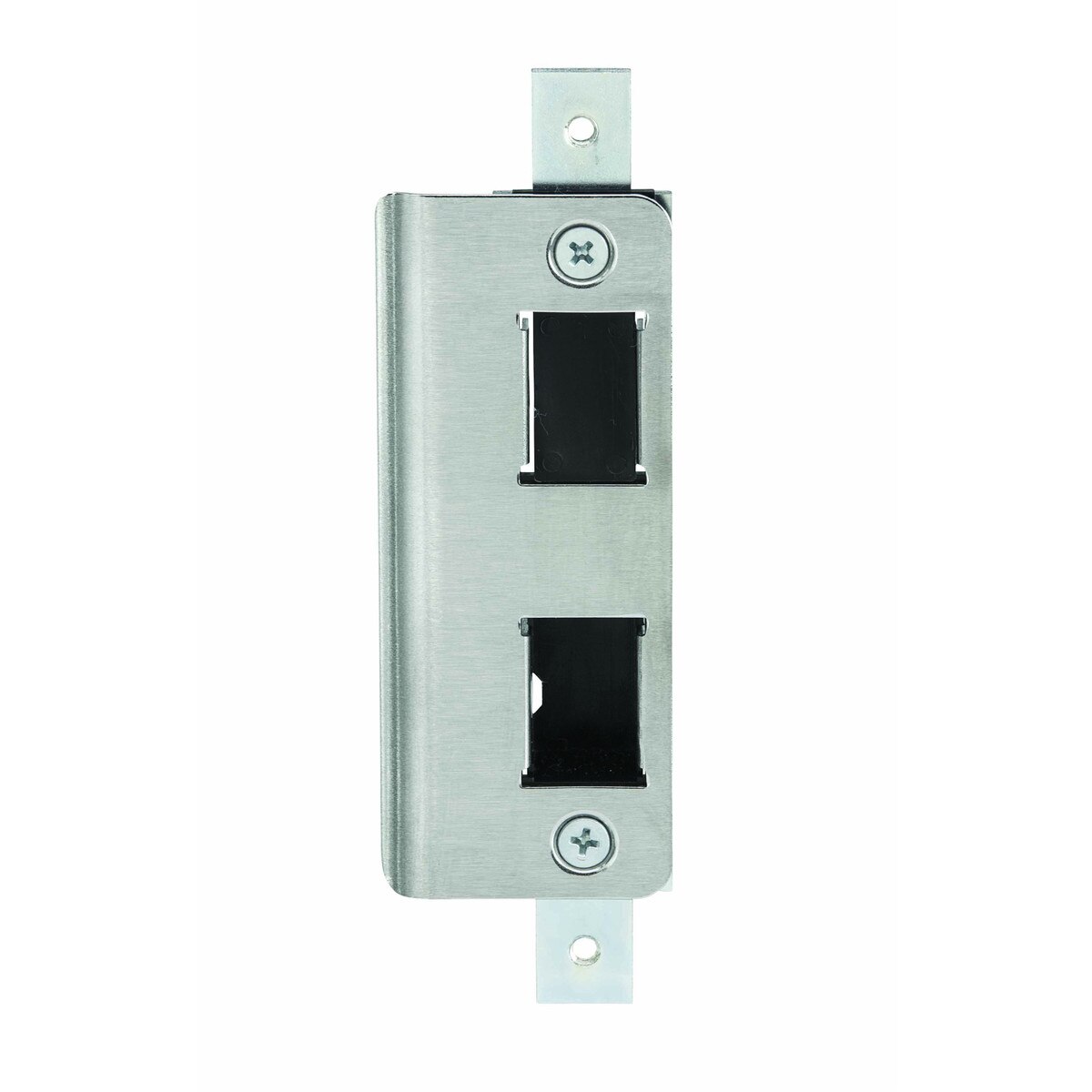

4901 Double Radius Box Strike


Designed for use in conjunction with 4300, 4500, 4700 (discontinued), and 4900 Series Deadlatches, these strikes offer a choice of mounting methods. A backup mounting plate included with the 4901 allows installation flush in a hollow section jamb. Accommodates the1/2" [12.7 mm] wide latchbolt of 4500/4700 Series Deadlatches and 5/8" [15.9 mm] wide latchbolt of 4900 Series Deadlatches by removing snap-in nylon insert.

FEATURES


  • Finish: 630/US32D - Satin Stainless Steel
  • Flush mount radius strike includes molded black plastic dust box and closure of the unused lower strike opening, with steel mounting plate.
  • Long face is designed to span strike area of MS® deadlocks with which the deadlatch is interchangeable.
  • Also includes radius strike plate for nose of opposite door when latc
Back

CUTSHEETS

4901, 4902 Catalog Page

TEMPLATES

Installation Instructions & Templates
