AR-4569-601-RC130

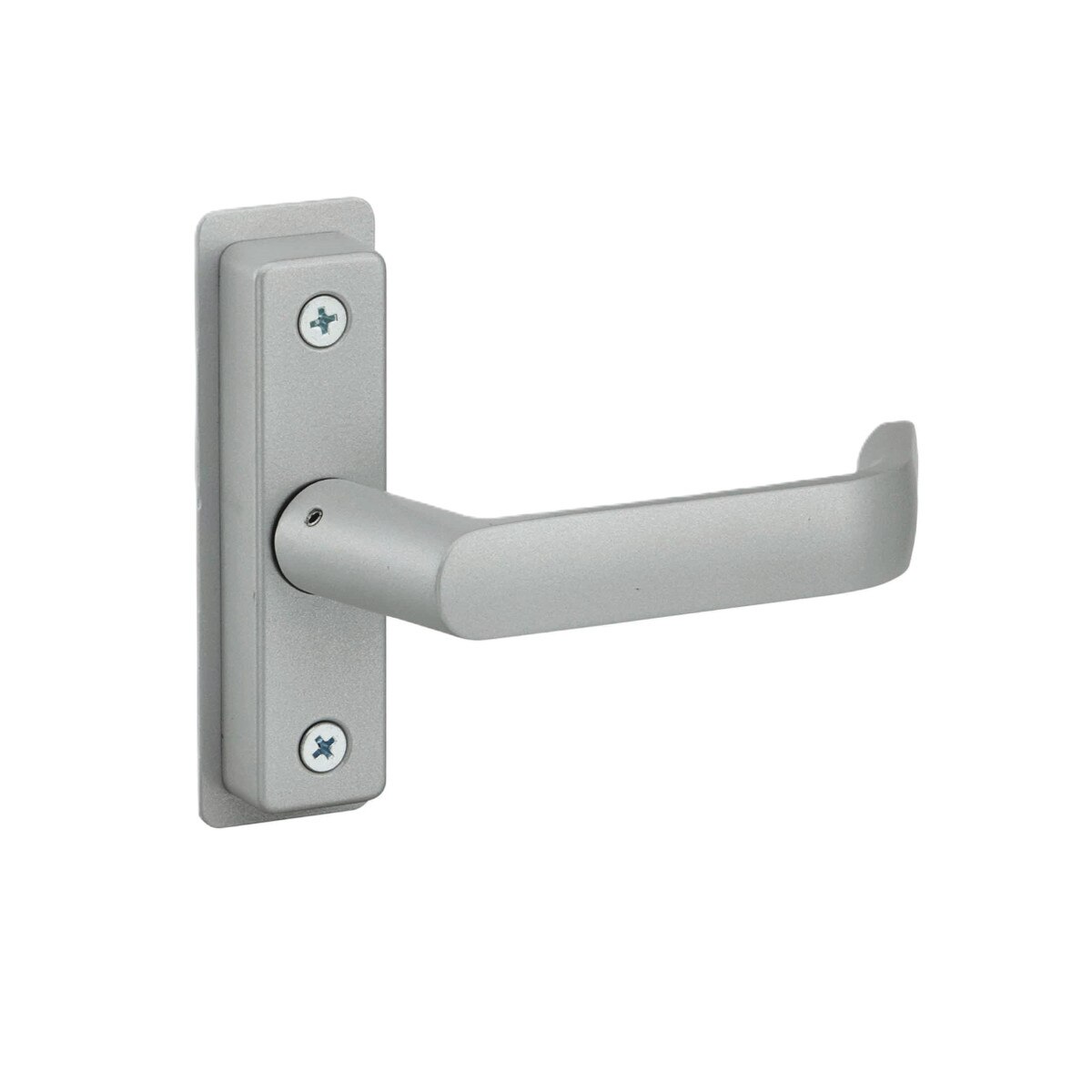

4569 Inside Lever Trim

Designed to operate 4300, 4500, the discontinued 4700 Series, and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam plug that mounts on the handles' escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.

FEATURES

• Handing: Left-Hand/Right-Hand Reverse
• Finish: 130 - Matches 628 - Clear Anodized Aluminum
• For 1-¾" to 2" doors.
• ADA compliant handles feature a return end, often required by code.
• Base Material: Cast Aluminum
• Escutcheon: 1-3/8" x 4"[34.9mm x 101.6mm] escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs (one becomes a “spare” once handing is given). A 1/4" [6.4 mm] square heat-treated spindle is part of escutcheon assembly, which interlock
